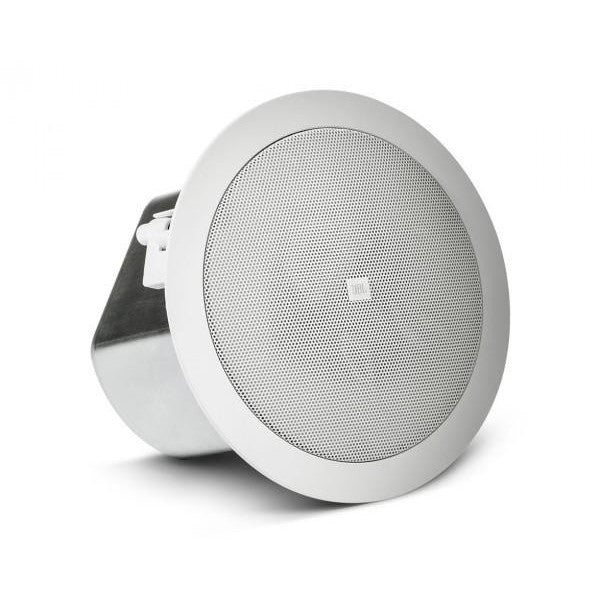

JBL Control 12C/T 3" Speaker

Description

The Control 12C/T is a full-range ceiling speaker consisting of 76 mm (3 inch) wide-bandwidth cone driver mounted in a vented, paintable baffle made of UV resistant UL94-V0 material, with a pre attached blind-mount backcan for quick and easy installation.

Main Features

  • JBL Control 12CT Ceiling Speaker (White)
  • 76 mm (3 in) full-range driver
  • Blind-mount backcan for quick and easy install
  • Combined 70V/100V and low impedance direct operation
  • Consisting of 76 mm (3 inch) wide-bandwidth cone driver
  • Paintable baffle made of UV resistant UL94-V0 material
  • Priced and Sold Individually

Product Specifications

General

  • Frequency Range (-10 dB): 68 Hz – 17 kHz
  • Power Capacity (at low-Z):
    • 40 Watts Continuous Program Power
    • 20 Watts Continuous Pink Noise
  • Transformer Taps: 15 W, 7.5 W, 3.8 W @ 70V and 100V (& 1.9 W @ 70V only)
  • Frequency Response (±3 dB): 95 Hz – 15 kHz
  • Nominal Sensitivity: 84 dB
  • Nominal Coverage Angle: 130° conical coverage
  • Directivity Factor (Q): 9.8
  • Directivity Index (DI): 7.4 dB
  • Rated Maximum SPL: 97 dB @ 1 m (3.3 ft) average, 103 dB peak
  • Nominal Impedance: 8 ohms (in direct/bypass 8Ω setting)
  • Full-Range Driver: 76 mm (3 inch) with polypropylene cone, butyl rubber surround, Kapton™ voice coil former, high temperature voice coil, aluminum coupling ring for low distortion and HF extension
  • Input Connectors:
    • Removable locking 4-pin connector with screw-down terminals.
    • Max wire size 12 AWG (2.5 mm2)
  • Connector Wiring: Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru
  • Strain Reliefs: Strain relief for two cables or two flex conduits via coupled clamping mechanism
  • Materials: ABS baffle with UL94-V0 and UL94-5VB flame class fire rating. Zinc-plated steel backcan
  • Safety Agency: UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems
  • Safety Seismic Attachment: One point, top surface

Physical & Dimensions

  • Diameter: 196mm
  • Depth from back of baffle: 138mm
  • Ceiling Cutout Size: Circular cutout with 170 mm (6.7 in) diameter (cardboard cutout template included)
  • Ceiling Thickness Range: Up to 35 mm (1.4 in) with stock dog-ears. MTC-TCD thickceiling dog-ears available for up to 55 mm 2.2 in) ceiling thicknesses.
  • Net Weight: 1.6kg
  • Shipping Weight: 6.7kg

Manufacturer: JBL

Related Collections:

Product form

SKU: JBL-CONTROL-12C-T

Out of stock

£123.00 Incl. VAT
