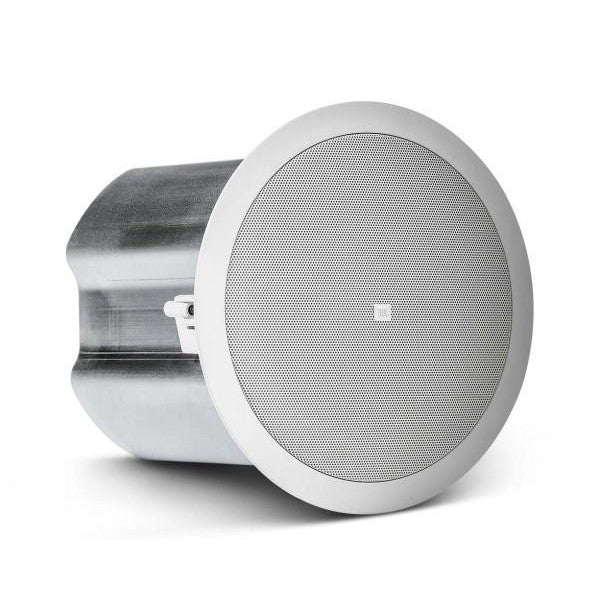

JBL Control 16C/T 6.5" Speaker

The Control 16C/T is a full-range ceiling speaker consisting of a 165 mm (6.5 inch) high tech cone driver and a 19mm soft-dome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5HB material, with a pre-attached blindmount backcan for quick and easy installation.

Main Features

• JBL Control 16CT Ceiling Speaker (White)
• Dual conduit/cable clamps
• 62 Hz - 20 kHz bandwidth with wide 110 degree coverage
• High 91 dB sensitivity for high maximum SPL
• Combined 70V/100V and low impedance direct operation
• Liquid cooled tweeter mounted in a vented baffle
• Priced and Sold Individually

Product Specifications

General

• Frequency Range (-10 dB): 62 Hz – 20 kHz
• Power Capacity (at low-Z):
  • 100 Watts Continuous Program Power
  • 50 Watts Continuous Pink Noise
• Transformer Taps: 30 W, 15 W, 7.5 W @ 70V or 100V (plus 3.8 W @ 70V only)
• Frequency Response (±3 dB): 96 Hz – 15 kHz
• Nominal Sensitivity: 91 dB
• Nominal Coverage Angle: 110° conical coverage
• Directivity Factor (Q): 7.8
• Directivity Index (DI): 8.2 dB
• Rated Maximum SPL: 108 dB @ 1 m (3.3 ft) average, 116 dB peak
• Nominal Impedance: 8 ohms (in direct/bypass 8Ω setting)
• Crossover Network
  • 12 dB/oct (2nd order) low-pass to LF driver,
  • 12 dB/oct (2nd order) high-pass to HF driver
• LF Driver: 165 mm (6.5 inch) with polypropylene cone, butyl rubber surround, anodized aluminum voice coil former, high temperature voice coil
• HF Driver: 19 mm (3/4 in), highly-damped treated-silk dome, Kapton™ voice coil, liquid cooling, wide dispersion waveguide
• Input Connector:
  • Removable locking 4-pin connector with screw-down terminals.
  • Max wire size 12 AWG (2.5 mm2)
• Connector Wiring: Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru
• Strain Reliefs: Strain relief for two cables or two flex conduits via coupled clamping mechanism
• Materials: ABS baffle with UL94-V0 and UL94-5VB flame class fire rating; Zinc-plated steel backcan
• Safety Agency: UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems
• Safety Seismic Attachment: One point, top surface

Physical & Dimensions

• Diameter: 253mm
• Depth from back of baffle: 225mm
• Ceiling Cutout Size: Circular cutout with 223 mm (8.8 in) diameter (cardboard cutout template included)
• Ceiling Thickness Range: Up to 38 mm (1.5 in) with stock dog-ears. MTC-TCD thick-ceiling dog-ears available for up to 60 mm (2.4 in) ceiling thicknesses
• Net Weight: 3.4 kg (7.4 lbs, one speaker)
• Shipping Weight: 11.2 kg (24.7 lbs, pair in master carton)

Manufacturer: JBL
