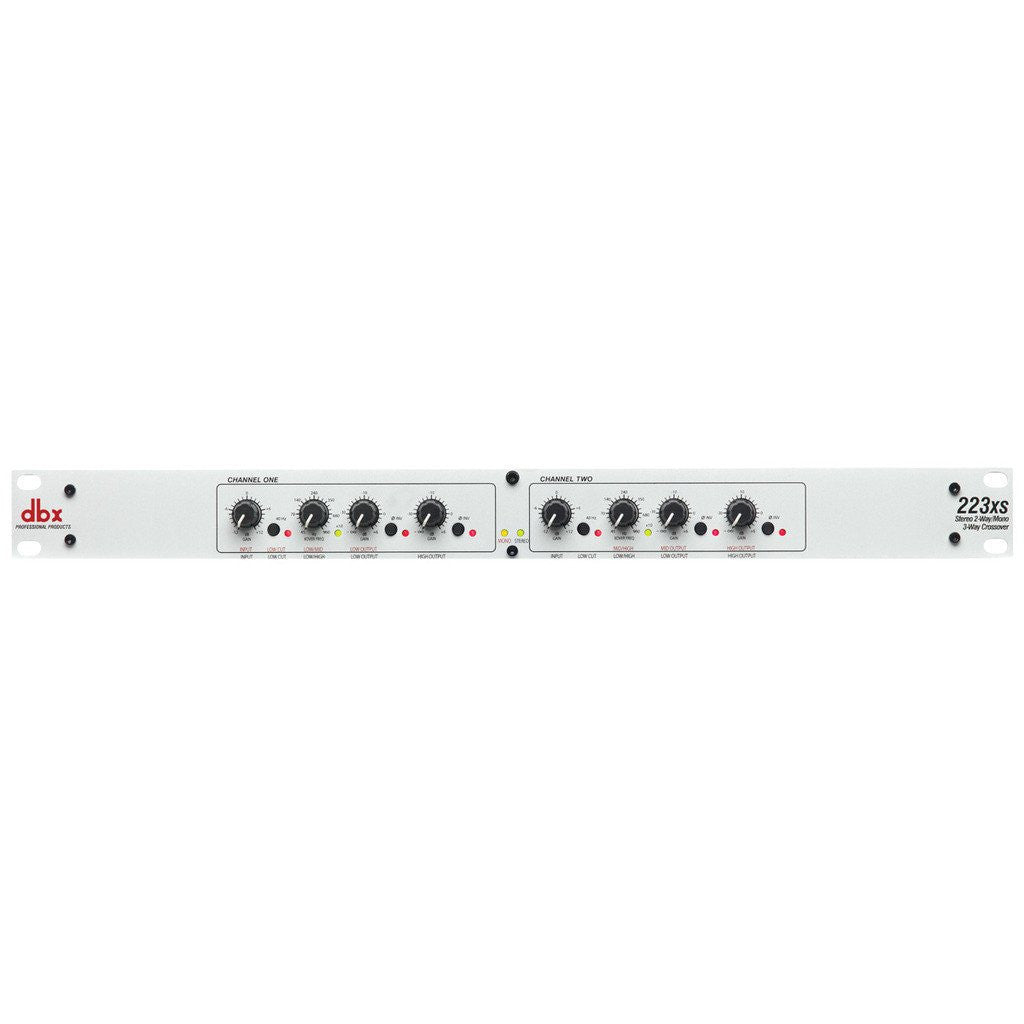

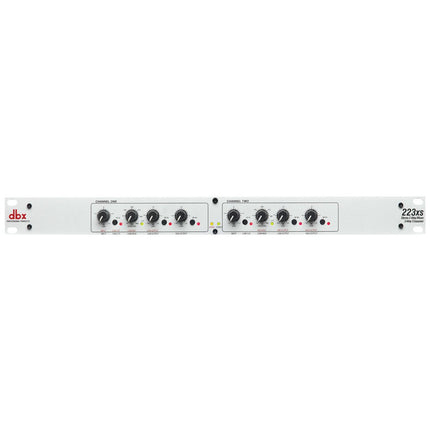

DBX 223XS Stereo / Mono Crossover

Description

With the DBX 223xs Stereo 2-Way/Mono 3-Way Crossover with XLR Connectors you'll get great performance, ultra low-noise, rugged reliability and four decades of DBX knowledge and expertise in building the world's finest processors.

The 223xs uses precision filters to separate the audio signal and direct the correct frequencies to your loudspeaker drivers. By directing only the specific frequency bands to each speaker driver the 223xs leaves your amplifiers free to use their full power on the usable signal eliminating distortion and giving your PA system a cleaner and better sound.

The dbx 223xs is a dual channel crossover with all the features you would expect from a professional product. It features Linkwitz-Riley 24dB per octave filters, independent output gain controls for level matching, output phase inversion, 40 Hz low cut filter, and optional mono summing of the low frequency (subwoofer) output. Everything in the design exudes great precision from the solid "click" controls to the high quality XLR inputs and outputs.

Product Features

  • XLR balanced ins and outs
  • Mode switch for stereo 2-way or mono 3-way operation
  • Low frequency summed (subwoofer) output
  • x10 range switch on both channels
  • 40Hz high pass (low cut) filter both channels
  • Phase reverse switch on all outputs
  • Individual level controls on all outputs
  • 24dB per octave Linkwitz-Riley filters (the professional standard)
  • Stereo/Mono status LEDs indicate the selected mode
  • dbx® 2 year parts and labor as standard
  • CSA NRTL/C approved
  • CE compliant

Inputs

  • Connectors: XLR (pin 2 hot)
  • Type: Electronically balanced/unbalanced, RF filtered
  • Impedance: Balanced >50k ohm, unbalanced >25k ohm
  • Max Input Level: >+22dBu balanced or unbalanced

Outputs

  • Connectors: XLR
  • Type: Electronically-balanaced/unbalanced, RF filtered
  • Impedance: Balanced 60 ohm, unbalanced 30 ohm
  • Max Output Level: >+20dBu balanced/unbalanced into 600 ohms or greater

Crossover Frequencies

  • Stereo Mode: Low/High: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
  • Mono Mode: Low/Mid: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
  • Mid/High: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
  • Filter type: Linkwitz-Riley, 24 dB/octave, state-variable

Function Switches

  • Front Panel (Low Cut): Activates 40 Hz Butterworth, 12 dB/octave high-pass filter, one switch per channel
  • Phase Invert: Inverts the phase at the output, one switch per output
  • Rear Panel: x10: Multiplies the crossover frequency range by 10, one switch per channel
  • Mode: Selects stereo/mono and 2/3-way operation.
  • LF sum: Selects normal (stereo) or mono-summed low frequency operation.

Indicators

  • Stereo Operation: Green LED
  • Mono Operation: Yellow LED
  • Low Cut: Red LED per channel
  • x10: Green LED per channel
  • Phase Invert: Red LED per output (3 per channel)

System Performance

  • Bandwidth: 20Hz to 20kHz, +0/-0.5dB
  • Frequency Response: < 3Hz to > 90kHz, +0/-3 dB
  • Dynamic Range: >106dB, unweighted, any output
  • THD + Noise: <0.004% at +4dBu 1kHz, <0.04% at +20dBu 1 kHz
  • Interchannel Crosstalk: <-80dB, 20Hz to 20kHz
  • CMRR: >40dB, typically >55dB at 1kHz
  • Signal-to-Noise: +4dBu, 22kHz measurement bandwidth
  • Stereo Mode: >94dB (Low Output) >91dB (High Output)
  • Mono Mode: >94dB (Low Output) >93dB (Mid Output) >91dB (High Output)

Power Supply

  • Operating Voltage: 100 VAC 50/60 Hz; 120 VAC 60 Hz 230 VAC 50/60HZ
  • Power consumption: 15W
  • Operating Temperature: 32°F to 113°F (0°C to 45°C)

Physical

  • Dimensions: 1.75" H X 6.9" D X 19" W (4.5cm x 17.5cm x 48.26cm )
  • Weight: 3.7 lbs. (1.7 kg)
  • Shipping Weight: 5.4 lbs. (2.5 kg)

Manufacturer: DBX

Related Collections:

Product form

SKU: DBX-223XS
Barcode: 691991401275

Out of stock

£231.00 Incl. VAT

    Delivery informationDelivery information

    There is a free standard delivery option for most UK orders as well as a £2.99 option which means your order will arrive faster than normal.

    For standard delivery your order should arrive within 2-5 working days. For the faster option it should be 1-3 working days.

    If you're from Northern Ireland there will be a £5 surcharge for heavier items. If you're buying a light item (under 2kg) please let us know as we may be able to refund your postage after the purchase.

    Buy now pay laterBuy now pay later

    Paypal Pay in 3 lets you spread your purchase interest free over 3 separate payments.

    If you'd like to use Paypal Pay in 3, please perform the following steps.

    1. Add the item to your cart as normal.

    2. Check out with Paypal.

    3. Log into Paypal.

    4. You should see a screen detailing the item costs. Scroll down and you should see an option for "Pay in 3".

    5. Continue the checkout process.

    1/3 of the purchase price will be taken immediately and then the rest over the next 2 months the rest of the payment will be taken.

    Please see more info about the service here.

    As with any sort of buy now pay later, please only use this service for added convenience when making a bigger purchase. It should only be used if you're 100% sure you can make all of the payments on time.

    Description

    With the DBX 223xs Stereo 2-Way/Mono 3-Way Crossover with XLR Connectors you'll get great performance, ultra low-noise, rugged reliability and four decades of DBX knowledge and expertise in building the world's finest processors.

    The 223xs uses precision filters to separate the audio signal and direct the correct frequencies to your loudspeaker drivers. By directing only the specific frequency bands to each speaker driver the 223xs leaves your amplifiers free to use their full power on the usable signal eliminating distortion and giving your PA system a cleaner and better sound.

    The dbx 223xs is a dual channel crossover with all the features you would expect from a professional product. It features Linkwitz-Riley 24dB per octave filters, independent output gain controls for level matching, output phase inversion, 40 Hz low cut filter, and optional mono summing of the low frequency (subwoofer) output. Everything in the design exudes great precision from the solid "click" controls to the high quality XLR inputs and outputs.

    Product Features

    • XLR balanced ins and outs
    • Mode switch for stereo 2-way or mono 3-way operation
    • Low frequency summed (subwoofer) output
    • x10 range switch on both channels
    • 40Hz high pass (low cut) filter both channels
    • Phase reverse switch on all outputs
    • Individual level controls on all outputs
    • 24dB per octave Linkwitz-Riley filters (the professional standard)
    • Stereo/Mono status LEDs indicate the selected mode
    • dbx® 2 year parts and labor as standard
    • CSA NRTL/C approved
    • CE compliant

    Inputs

    • Connectors: XLR (pin 2 hot)
    • Type: Electronically balanced/unbalanced, RF filtered
    • Impedance: Balanced >50k ohm, unbalanced >25k ohm
    • Max Input Level: >+22dBu balanced or unbalanced

    Outputs

    • Connectors: XLR
    • Type: Electronically-balanaced/unbalanced, RF filtered
    • Impedance: Balanced 60 ohm, unbalanced 30 ohm
    • Max Output Level: >+20dBu balanced/unbalanced into 600 ohms or greater

    Crossover Frequencies

    • Stereo Mode: Low/High: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
    • Mono Mode: Low/Mid: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
    • Mid/High: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
    • Filter type: Linkwitz-Riley, 24 dB/octave, state-variable

    Function Switches

    • Front Panel (Low Cut): Activates 40 Hz Butterworth, 12 dB/octave high-pass filter, one switch per channel
    • Phase Invert: Inverts the phase at the output, one switch per output
    • Rear Panel: x10: Multiplies the crossover frequency range by 10, one switch per channel
    • Mode: Selects stereo/mono and 2/3-way operation.
    • LF sum: Selects normal (stereo) or mono-summed low frequency operation.

    Indicators

    • Stereo Operation: Green LED
    • Mono Operation: Yellow LED
    • Low Cut: Red LED per channel
    • x10: Green LED per channel
    • Phase Invert: Red LED per output (3 per channel)

    System Performance

    • Bandwidth: 20Hz to 20kHz, +0/-0.5dB
    • Frequency Response: < 3Hz to > 90kHz, +0/-3 dB
    • Dynamic Range: >106dB, unweighted, any output
    • THD + Noise: <0.004% at +4dBu 1kHz, <0.04% at +20dBu 1 kHz
    • Interchannel Crosstalk: <-80dB, 20Hz to 20kHz
    • CMRR: >40dB, typically >55dB at 1kHz
    • Signal-to-Noise: +4dBu, 22kHz measurement bandwidth
    • Stereo Mode: >94dB (Low Output) >91dB (High Output)
    • Mono Mode: >94dB (Low Output) >93dB (Mid Output) >91dB (High Output)

    Power Supply

    • Operating Voltage: 100 VAC 50/60 Hz; 120 VAC 60 Hz 230 VAC 50/60HZ
    • Power consumption: 15W
    • Operating Temperature: 32°F to 113°F (0°C to 45°C)

    Physical

    • Dimensions: 1.75" H X 6.9" D X 19" W (4.5cm x 17.5cm x 48.26cm )
    • Weight: 3.7 lbs. (1.7 kg)
    • Shipping Weight: 5.4 lbs. (2.5 kg)

    Manufacturer: DBX
