Description

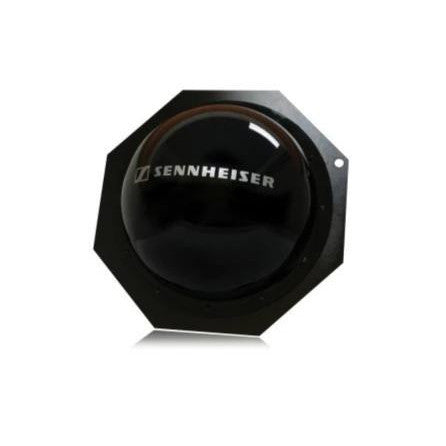

The Sennheiser A5000-CP passive antenna provides an optimum solution for both transmitting and receiving RF signals throughout the UHF spectrum.
Installations have demonstrated that the circular polarisation of this antenna minimises variations in signal strength and almost eliminates multipath problems, a primary cause dropouts. The gain of this antenna over the entire UHF band is superior to common `off the shelf' antennas.
The wideband design (450-960MHz) of the A 5000-CP allows it to accommodate antenna distribution systems for either wireless monitors or wireless microphones across multiple frequency ranges, offering maximum flexibility when designing complex RF systems.
FEATURES
- High Gain
- Minimised Multipath
- Broadband
- Optimum solution for both transmitting and receiving RF signals throughout the UHF spectrum
- Circular polarisation of this antenna minimises variations in signal strength and almost eliminates multipath problems
- Maximum flexibility when designing complex RF systems
SPECIFICATION
General
- Connector: N (female)
- Gain: 8 dBi
- Frequency range: 3db: 450 - 960 MHz
Physical & Dimensions
- Weight: 3.1 Ibs. (1.41 kg)
- Dimensions: 356 x 356 x 140 mm
Manufacturer: Sennheiser
