Description

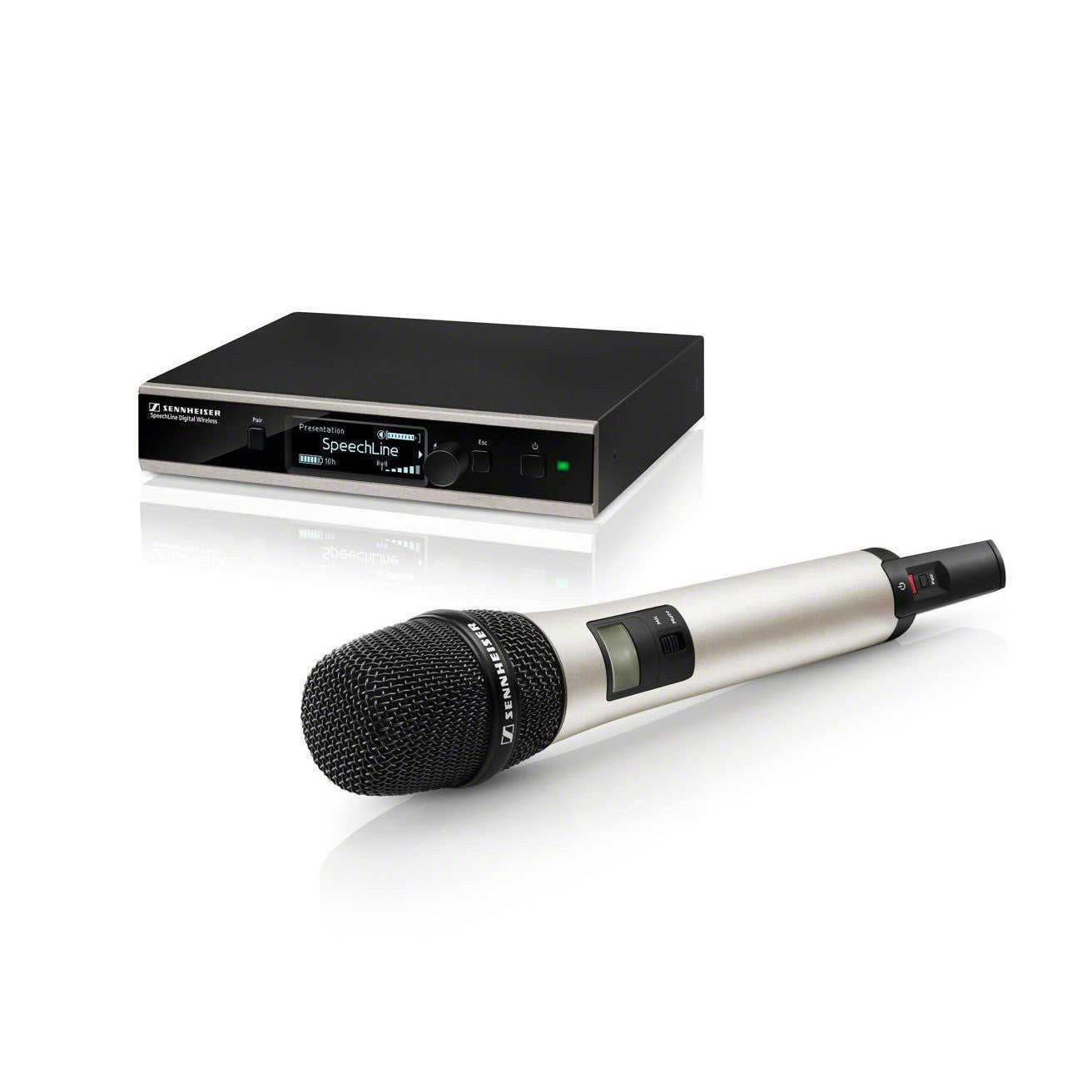

The SL Handheld Set includes the Handheld, stationary receiver and everything to use or install. It comes with the MME 865 condenser capsule – so not just a capsule, but the best capsule for speech.
All sets also come with rechargeable battery with up to 15 hrs operating time. The battery is also usb-rechargeable, the cable is also in the box.
The two type of sets are either Rackmount Sets (-R) come with rackmounts and everything to be mounted in a rack, or as a Case Version (-C Version), in a case – without rackmounts, if you don‘t want to install the receiver.
SPECIFICATION:
General
-
AF frequency response: 20 to 20,000 Hz
-
Dynamic range: > 120 dB (A)
-
THD (1 kHz): typ. 0.1 %
-
Audio sampling: 24 bit/48 kHz
-
Signal-to-noise ratio: > 90 dB (A)
-
Encryption: AES 256
-
Modulation: GFSK with back channel
-
Transmission method: TDMA | Space diversity
-
Latency: 19 ms
Temperature range - relative air humidity max. 95 %
-
Operation: –10 °C to +55 °C
-
Storage: –20 °C to +70 °C
- Temperature range is influenced by battery characteristics.
RF frequency ranges:
-
EU: 1,880 to 1,900 MHz
-
USA: 1,920 to 1,930 MHz
-
Brazil: 1,910 to 1,920 MHz
-
Taiwan: 1,880 to 1,895 MHz
-
Japan: 1,893 to 1,906 MHz
Handheld Mic Specifications
General
-
RF output power: adaptive, up to 250 mW (country-specific)
-
AF frequency response: 50 to 20,000 Hz
-
Input sensitivity: automatic sensitivity adjustment
-
Display: LCD
-
Mute switch: available
-
Weight (w/o accupack): approx. 262 g incl. microphone head
Power Supply
-
Accupack: BA 10 (Li-Ion, 3.7 V)
-
Batteries (optional): 2 x AA size battery (1.5 V)
Operating time
-
Accupack: typ. 15 h
-
Batteries (optional): typ. 10 h
Rechargeable Battery Pack Specifications
General
-
Charging capacity: 2200 mAh
-
Output voltage: 3.6 V
SpeechLine Rack Receiver Specifications
General
-
RF sensitivity: < –90 dBm
-
RF output power back channel: adaptive, up to 250 mW (country-specific)
-
Display: OLED
-
Network protocol: Media Control Protocol | TCP/IP IPv4 (DHCP, Manual)/IPv6
-
Power supply: 12 V DC
-
Current consumption: 350 mA
-
AF connection sockets: XLR/2 x RCA
-
Antenna sockets: 2 x Rev-SMA
-
Network socket: RJ45
-
DC socket for power supply: hollow jack
-
Weight: approx. 828 g
Digital gain: adjustable in 6-dB steps
-
Mic/line level switch: –24 dB/0 dB
-
XLR, balanced: max. +18 dBu
-
RCA, unbalanced: max. +6 dBu
Audio effects
-
Low cut: –3 dB at 120 Hz
-
Equaliser: 7-band graphic equaliser with sound presets
-
Automatic gain control AGC: Compression/expansion with automatic make-up gain function
Manufacturer: Sennheiser
