Description

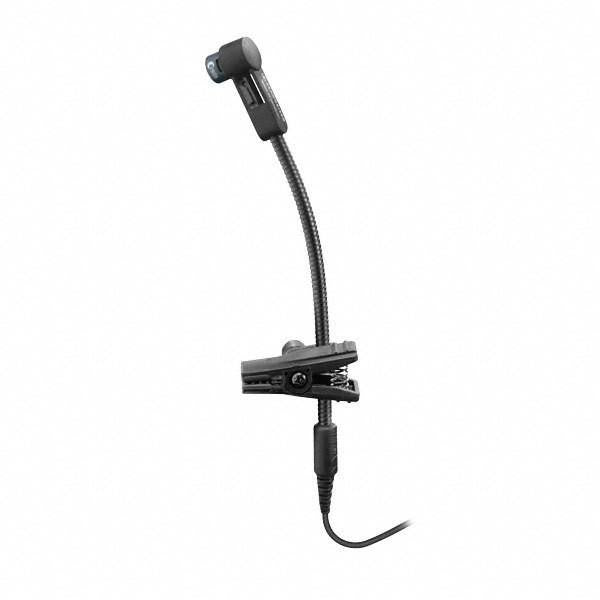

The E 908 B EW is for the wireless miking of saxophones using an evolution wireless instrument transmitter.
The evolution e 908 instrument microphone is available in four variants:
- as e 908 D for drums and percussion
- as e 908 B for wind instruments, congas, and drums with free-floating suspension system
- as e 908 B ew for the wireless miking of saxophones using an evolution wireless instrument transmitter
- as e 908 T ew for the wireless miking of trumpets using an evolution wireless instrument transmitter
FEATURES:
- Exceptionally lively, clear sound
- Quick and flexible set-up; comes with suitable mounting clamp
- Optimal positioning with long-necked, flexible boom
- Integrated shock absorber eliminates handling noise
- Intelligent MZA 900 P in-line-preamp (cable, phantom power & level check)
- Each E 908 variant can optionally be used with any Evolution Wireless bodypack transmitter
SPECIFICATION:
- Transducer principle (Microphone): pre-polarised condenser microphone
- Pick-up pattern: cardioid
- Frequency response: 40 ... 20 000 Hz
- Sensitivity in free field, no load (1kHz): 4 mV/Pa, 0,56mV/Pa (e 908T-ew)
- Nominal impedance: 100 Ohm (e908B & e908D)
- Min. terminating impedance: 2000 Ohm (e908B & e908D)
- Equivalent noise level: e908B-ew = 30 dB(A); e908B & e908D = 35 dB(A), e908T-ew = 39 dB (A)
- Max. Sound pressure level (aktiv): 147 dB
- Phantom powering: 12 - 48 V / 3 mA (e908B & e908D)
- Connector: e 908 B & D = XLR-3; e908 B ew & T ew = 3.5mm mini jack
- Dimensions: Ø 47 x 193 mm
- Weight: ca. 140 g
Manufacturer: Sennheiser
