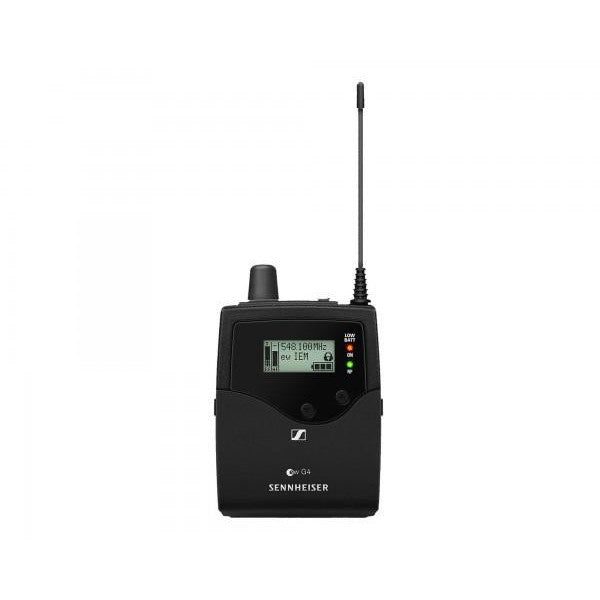

Sennheiser EK IEM G4-GB Bodypack CH38

Sennheiser EK IEM G4-GB Bodypack CH38

In stock

Regular price $594.00 USD
Regular price Sale price $594.00 USD
Sale Sold out

Prices VAT inclusive. UK delivery free.

The Sennheiser EK IEM G4-GB on channel 38 is a robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage with evolution wireless G4 In Ear Monitoring systems.

FEATURES:

  • Easy and flexible wireless synchronisation between transmitter and receiver via infrared
  • Compatible with Sennheiser WSM control software for flexible frequency allocation
  • Up to 16 compatible channels
  • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
  • Transmission Range: up to 100 meters / 300 feet
  • High RF output power (up to 30 mW) depending on country regulations

SPECIFICATION:

General

  • Modulation: Wideband FM
  • Frequency range:
    • GB: 606 - 648 MHz
  • Receiving frequencies:
    • Max. 1680 frequencies, adjustable in 25 kHz steps
    • 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation
    • 6 frequency banks with up to 16 programmable channels
  • Switching bandwidth: up to 42 MHz
  • Nominal/peak deviation: ±24 kHz / ±48 kHz
  • Receiver principle: Adaptive diversity
  • Sensitivity (with HDX, peak deviation): < 4 μV, typ. 1.6 μV  for 52 dBA rms S/N
  • Adjacent channel selection: Typically ≥ 65 dB
  • Intermodulation attenuation: Typically ≥ 70 dB
  • Blocking: ≥ 80 dB
  • Squelch: 5 to 25 dBμV,  adjustable in steps of 2 dB
  • Pilot tone squelch: Can be switched off
  • Compander system: Sennheiser HDX
  • Signal-to-noise ratio (1 mV, peak deviation): approx. 90 dBA
  • Total harmonic distortion (THD): ≤ 0.9 %
  • Output power at 2.4 V,  5 % THD, nominal deviation: 2 x 100 mW at 32 Ω
  • High Boost: +8 dB at 80 kHz
  • Limiter: –18 dB to –6 dB, adjustable in steps of 6 dB, can be switched off
  • Temperature range: -10 °C to +55 °C
  • Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
  • Nominal voltage: 3 V battery / 2.4 V rechargeable battery
  • Current consumption: at nominal voltage: approx. 140 mA with transmitter switched off: ≤ 25 μA
  • Operating time: approx. 4 to 6 hours (depending on volume level)

Physical & Dimensions

  • Height: 82mm
  • Width: 64mm
  • Depth: 24mm
  • Weight: 125g

Included Accessories

  • EK IEM G4 stereo receiver
  • 2 AA batteries
  • IE 4 earphones
  • Quick guide
  • Safety guide
  • Manufacturer declaration sheet
Manufacturer: Sennheiser
