Description

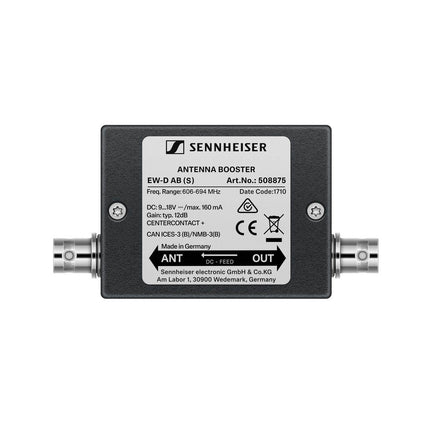

Sennheiser EW-D AB (S) Antenna Booster on channel 38 for use with Evolution Wireless Digital systems.
Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. Receive state-of-the-art live sound.
SPECIFICATION
- Frequency range
- EW-D AB (S): 606 – 694 MHz
- Power supply (DC coupled): DC 12 V (DC 9 – 18 V) / max. 160 mA @ 12 V, center contact +
- IIP3: > 25 dBm
- Max. RF input power: +10 dBm
- Gain Typically: 12 dB
- Impedance: 50 Ω
- Connections: 2x BNC female, DC power supply from OUT to ANT
- Dimensions: Approx. 95 x 47 x 21 mm
- Weight: Approx. 120 g
- Operating temperature range: -10 °C - +55 °C (14 °F - 131 °F)
- Storage temperature range: -20 °C - +70 °C (-4 °F - 158 °F)
- Relative humidity: 5 - 95 % (non-condensing)
Manufacturer: Sennheiser
