Sennheiser EW-D ME4 Wireless Lapel Set CH38

Description

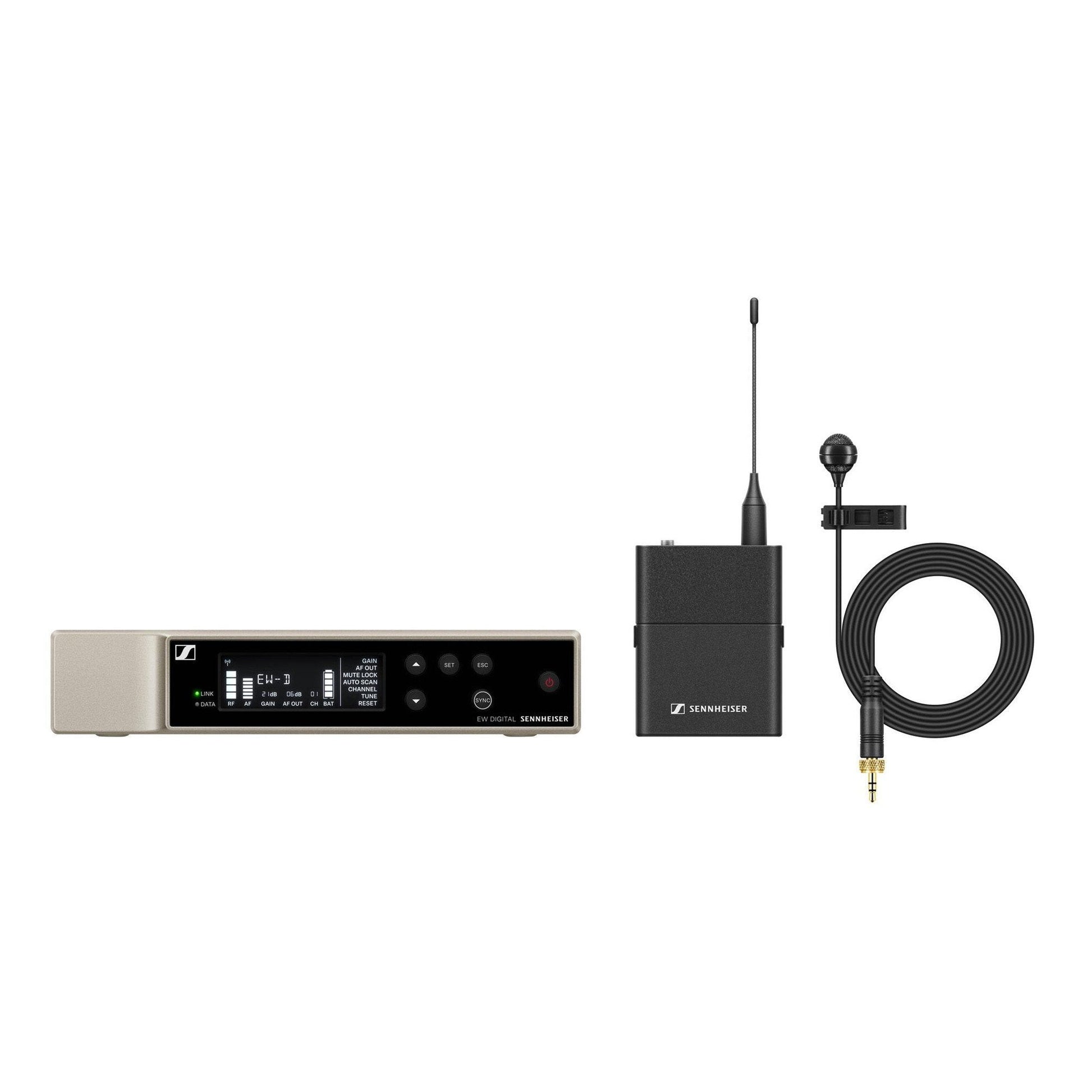

The Sennheiser EW-D ME 4 Lapel System with ME4 Omni directional Microphone on channlel 38.

Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App.

With a metal housing, the robust bodypack transmitter and unobstrusive clip-on microphone ME 4 (cardioid) with high speech intelligibility suit perfectly for daily use on stage.

Features:

  • Digital wireless eliminates noise, interference and static bursts
  • UHF transmission greatly enhances range, reliability and scalability
  • Mobile App streamlines setup and operation and eliminates complicated menus
  • Automated setup creates reliable connections with minimal time and effort
  • Up to 2,240 selectable frequencies
  • Lithium Ion battery pack delivers up to 12 hours of operation (up to 8 hours of operation with AA batteries)
  • 56 MHz Bandwidth will allow for up to 90 channels
  • Preserves every detail of even the most dynamic performances with 134 dB transmitter dynamic range

Specifications:

System

  • Audio link frequency ranges
    • S1-7:  606.2 - 662 MHz
  • Bluetooth® Low Energy (BLE) frequency range:  2402 - 2480 MHz
  • Audio frequency response:  20 Hz - 20 kHz (-3 dB) @ 3 dBfs
  • Audio THD:  ≤ -60 dB for 1 kHz @ -3 dBfs input level
  • Operating temperature:  -10 °C - +55 °C (14 °F - 131 °F)
  • Relative humidity:  5 - 95 % (non-condensing)

EW-D EM (Rack Receiver)

  • Input voltage:  11 - 13 V ⎓
  • Input current:  ≤ 300 mA
  • Transmit power (radiated):  BLE: max. 10 mW EIRP
  • Audio output power:  18 dBu max.
  • Dimensions:  212 x 44 x 189 mm
  • Weight approx.:  1000 g (without antennas and power supply)

EW-D SK (Bodypack Transmitter)

  • Input voltage:  2.0 - 4.35 V
  • Input current:  < 300 mA
  • Power supply:  2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
  • Occupied bandwidth:  200 kHz
  • Transmit power (radiated):
    • Audio link: 10 mW ERP
    • (Range Y1-3: 12 mW ERP)
    • BLE: max. 10 mW EIRP
  • Dimensions:  63 x 80 x 20 mm (without antenna)
  • Weight (without batteries):  approx. 120 g

ME 3 (Headset Microphone)

  • Transducer principle:  pre-polarized condensor microphone
  • Pick-up pattern:  cardioid
  • Sensitivity (free field, no load) (1 kHz):  40 mV/Pa
  • Max. SPL at 1 kHz:  120 dB
  • Frequency response:  50 to 18,000 Hz
  • Equivalent noise level A-weighted (DIN IEC 651):  31 dB
  • Connector:  3.5 mm jack
  • Cable length:  approx. 1.60 m
  • Supply voltage 7.5 V

Set in packaging

  • Dimensions:  405 x 350 x 73 mm
  • Weight:  2.8 kg

Part Number: 508723

Manufacturer: Sennheiser

Related Collections:

Product form

SKU: SE-EWD-ME4-S-CH38

In stock

£651.00 Incl. VAT
