Description

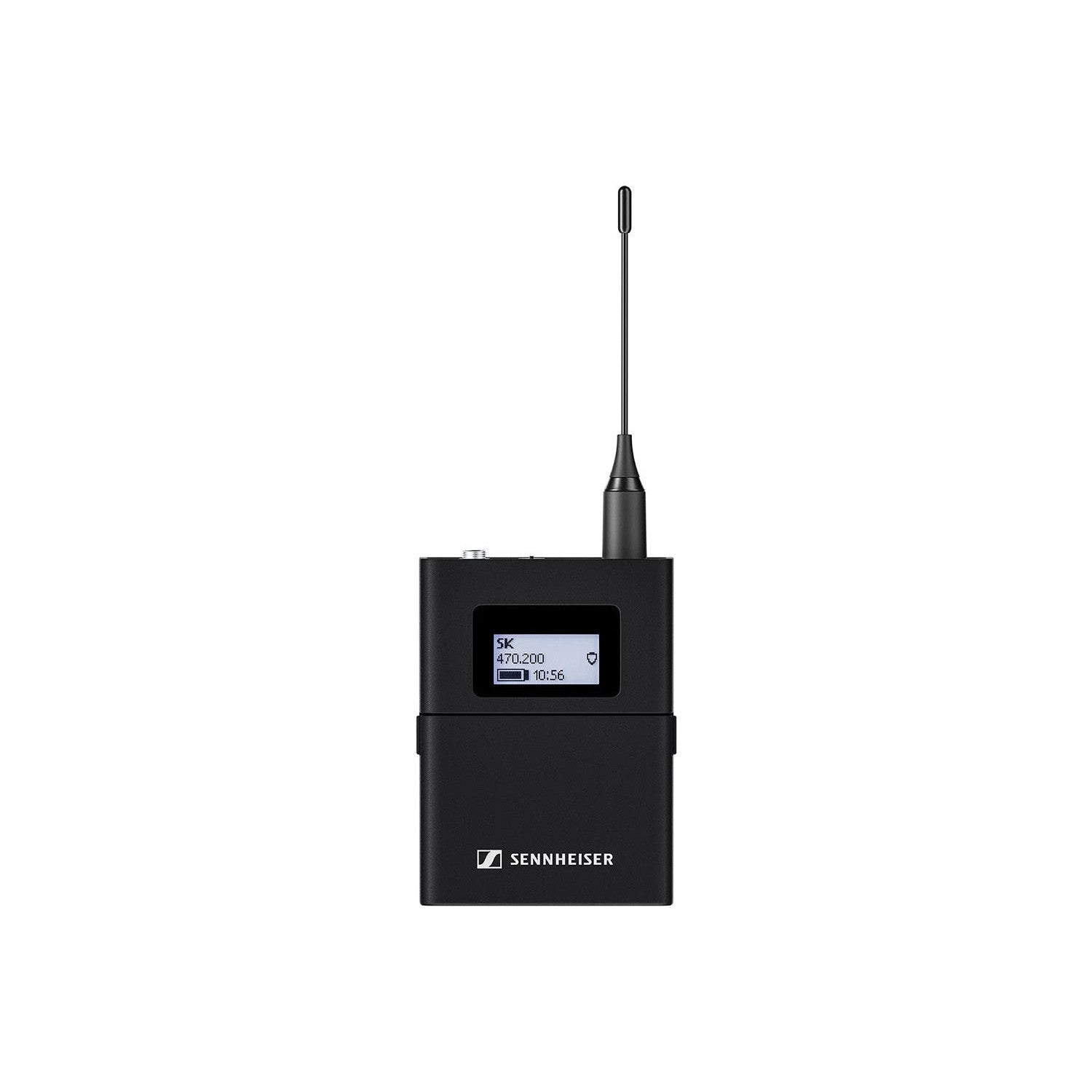

Sennheiser EW-DX SK (S1-10) Bodypack Transmitter is versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App.
This bodypack transmitter is compatible with a wide range of Sennheiser headset microphones and clip-on/lavalier microphones.
FEATURES:
- 3,5 mm jack
- 10mW RF power with up to 100m/328ft working range
- Charging contacts for in-device charging with CHG 70N
- Persistent eInk display - parameters visible on screen even when device is not powered on
- Programmable mute switch - customize the device depending on your professional needs
- Extended runtime with lithium ion batteries - up to 12 hours operation time
- Mic input trim control
- Metal housing
SPECIFICATION:
Product Specifications
- Audio link frequency range:
- Bluetooth® Low Energy (BLE) frequency range: 2402 - 2480 MHz
- Audio frequency response: 20 Hz - 20 kHz (-3 dB)
- Audio THD:
- ≤ -60 dB for 1 kHz
- @ -3 dBfs input level
- Dynamic range: 134 dB
- System latency: 1.9 ms
- Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)
- Relative humidity: 5 - 95 % (non-condensing)
- Input voltage: 2.0 - 4.35 V
- Input current: < 300 mA
- Power supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
- Occupied bandwidth: 200 kHz
- Transmit power (radiated):
- Audio link: 10 mW ERP
- (Range Y1-3: 12 mW ERP)
- LD mode: 10 mW ERP
- BLE: max. 10 mW EIRP
- Dimensions (without antenna): 63.5 x 85 x 20 mm (2.5" x 3.35" x 0.79")
- Weight (without batteries): approx. 115-120 g (0.26-0,27 - lbs)
Manufacturer: Sennheiser
