Sennheiser EW 100 G4-ME2-GB Wireless Lapel Set

Description

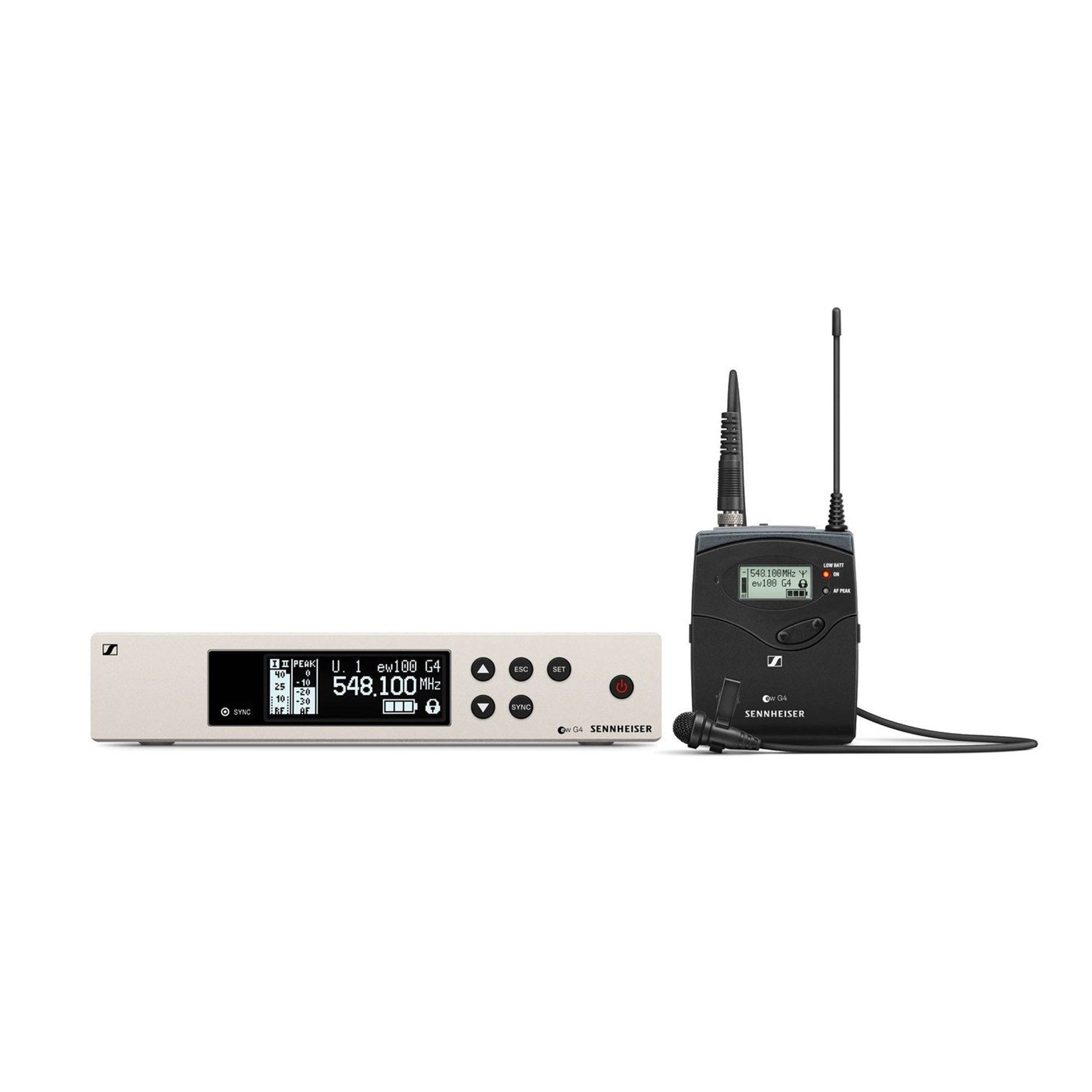

The Sennheiser EW100 G4-ME2-GB Lavalier Set System with ME2II Omni microphone on channel 38 is a versatile wireless system.

With up to 42 MHz tuning bandwidth in a stable UHF range and fast, simultaneous setup of up to 12 linked systems.

The perfect choice for moderators and presenters: Robust bodypack transmitter and unobtrusive clip-on microphone ME 2-II (omni-directional) lapel with high speech intelligibility for easy hands-free operation on any stage.

Features:

  • Engineered for professional live sound: Rugged all-in-one wireless system for presenters and moderators
  • Robust bodypack transmitter and unobtrusive clip-on microphone ME 2-II (omni-directional) with high speech intelligibility for daily use on stage
  • True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
  • Easy and flexible wireless synchronisation between transmitter and receiver via infrared
  • Fast frequency allocation for up to 12 receivers via new linking functionality
  • Up to 20 compatible channels
  • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
  • Transmission Range: up to 100 meters / 300 feet
  • High RF output power (up to 30 mW) depending on country regulations

Specifications:

EM 100 G4 - General

  • Modulation: Wideband FM
  • Frequency ranges
    • A1: 470 - 516 MHz
    • A: 516 - 558 MHz
    • AS: 520 - 558 MHz
    • G: 566 - 608 MHz
    • GB: 606 - 648 MHz
    • B: 626 - 668 MHz
    • C: 734 - 776 MHz
    • D: 780 - 822 MHz
    • E: 823 - 865 MHz
    • JB: 806 - 810 MHz
    • K+: 925 - 937.5 MHz
    • 1G8: 1785 - 1800 MHz
  • Receiving frequencies
    • Max. 1680 receiving frequencies, adjustable in 25  kHz steps
    • 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
    • 1 frequency bank with up to 12 programmable channels
  • Switching bandwidth: up to 42 MHz
  • Nominal/peak deviation: ±24 kHz / ±48 kHz
  • Receiver principle: True diversity
  • Sensitivity (with HDX, peak deviation): < 2.5 μV for 52 dBA eff S/N
  • Adjacent channel selection: Typically ≥ 65 dB
  • Intermodulation attenuation: Typically ≥ 65 dB
  • Blocking: ≥ 70 dB
  • Squelch
    • low: 5 dBμV
    • middle: 15 dBμV
    • high: 25 dBμV
  • Pilot tone squelch: Can be switched off
  • Antenna inputs: 2 BNC sockets
  • Compander system: Sennheiser HDX
  • EQ presets (switchable, act on line and monitor outputs)
    • Preset 1: Flat
    • Preset 2: Low Cut (-3 dB at 180 Hz)
    • Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
    • Preset 4: High Boost (+6 dB at 10 kHz)
  • Signal-to-noise ratio (1 mV, peak deviation): ≥ 110 dBA
  • Total harmonic distortion (THD): ≤ 0.9 %
  • AF output voltage (at peak deviation, 1 kHz AF)
  • 6.3 mm jack socket (unbalanced): +12 dBu
  • XLR socket (balanced): +18 dBu
  • Setting range “AF Out”: 48 dB (3 dB steps)
  • Temperature range -10 °C to +55 °C
  • Power supply 12 V DC
  • Current consumption 300 mA

EM 100 G4 - Physical & Dimensions

  • Height: 43mmm
  • Width: 212mm
  • Depth: 190mm
  • Weight: 980g

SK 100 G4 - General

  • Modulation: Wideband FM
  • Frequency ranges
    • A1: 470 - 516 MHz
    • A: 516 - 558 MHz
    • AS: 520 - 558 MHz
    • G: 566 - 608 MHz
    • GB: 606 - 648 MHz
    • B: 626 - 668 MHz
    • C: 734 - 776 MHz
    • D: 780 - 822 MHz
    • E: 823 - 865 MHz
    • JB: 806 - 810 MHz
    • K+: 925 - 937.5 MHz
    • 1G8: 1785 - 1800 MHz
  • Transmission frequencies
    • Max. 1680 receiving frequencies, adjustable in 25  kHz steps
    • 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
    • 1 frequency bank with up to 12 programmable channels
  • Switching bandwidth: up to 42 MHz
  • Nominal/peak deviation: ±24 kHz / ±48 kHz
  • Frequency stability: ≤ ±15 ppm
  • RF output power at 50 Ω: Max. 30 mW
  • Pilot tone squelch: Can be switched off
  • Compander system: Sennheiser HDX
  • AF frequency response
    • Mic: 80 – 18,000 Hz
    • Line: 25 – 18,000 Hz
  • Signal-to-noise ratio (1 mV, peak deviation): ≥ 110 dBA
  • Total harmonic distortion (THD): ≤ 0.9 %
  • Max. microphone/line input voltage: 3 Veff
  • Microphone/line input impedance: 40 kΩ, unbalanced / 1 MΩ
  • Input capacitance: Switchable
  • Setting range for input sensitivity: 60 dB, adjustable in 3 dB steps
  • Temperature range: -10 °C to +55 °C
  • Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
  • Nominal voltage: 3 V battery / 2.4 V rechargeable battery
  • Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 μA
  • Operating time Typically: 8 h

SK 100 G4 - Physical & Dimensions

  • Height: 82mm
  • Width: 64mm
  • Depth: 24mm
  • Weight: 160g

ME 2 - General

  • Transducer principle: pre-polarised condenser microphone
  • Pick-up pattern: omni-directional
  • Sensitivity (free field, no load) (1 kHz): 20 mV/Pa
  • Max. SPL at 1 kHz: 130 dB
  • Frequency response:
    • "50 to 18,000 Hz (ME 2-II) 30 to 20,000 Hz (ME 2-US)"
    • "Equivalent noise level A-weighted (DIN IEC 651)": 36 dB
  • Connector: 3.5 mm jack
  • Cable length: approx. 1.60 m
  • Supply voltage: 7.5 V

Part Number: 507502

Manufacturer: Sennheiser

Related Collections:

Product form

SKU: SE-EW100-ME2-GB

In stock

£708.00 Incl. VAT
