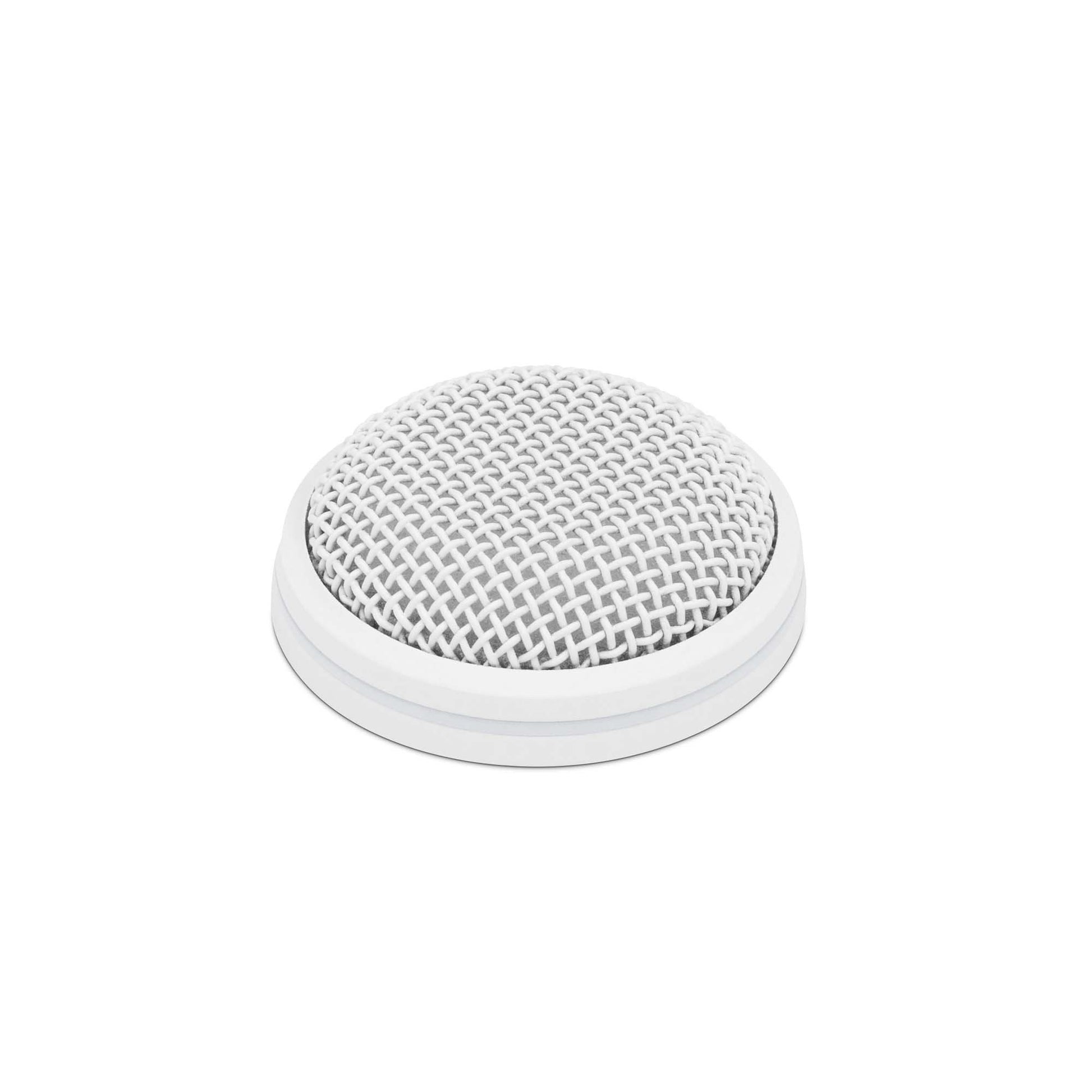

Sennheiser MEB 102 W Boundry Microphone

Compact and unobtrusively designed, the cardioid boundary layer microphone MEB 102 (omnidirectional) fits any style of interior and can be easily installed into surfaces such as tables or ceiling tiles.

It features a proven Sennheiser microphone capsule for the best speech intelligibility, and is protected by a rugged housing.

Product Features

• MEB102W Omni Install Boundary layer Mic
• Sennheiser mic for best speech intelligibility
• Unobtrusive, timeless design
• Easy installation
• Rugged housing
• White finish

Product Specifications

General

• Connector
  • MEB 102: XLR-3, Pin assignment: 1 = gnd, 2 = +, 3 = −
• Frequency response: 40 Hz – 20 kHz
• Max. sound pressure level: 125 dB
• Transducer principle: pre-polarised condenser microphone
• Pick-up pattern: omni-directional
• Current consumption
  • MEB 102: 3 mA
• Nominal impedance: 200 Ω
• Phantom powering: P 24 - P 48
• Operating temperature: 32 °to 104 ° F
• Equivalent noise level: 21 dB (A)
• Equivalent noise level weighted as per CCIR 468-3: 31 dB (CCIR)
• Acoustics: Boundary Layer Microphone
• Dynamic range: 104 dB (A)
• Sensitivity: 16 mV/Pa
• Thread: M 20

Physical & Dimensions

• Height: 83.26"
• Diameter: 1.12"
• Weight: 2.05oz

Manufacturer: Sennheiser
