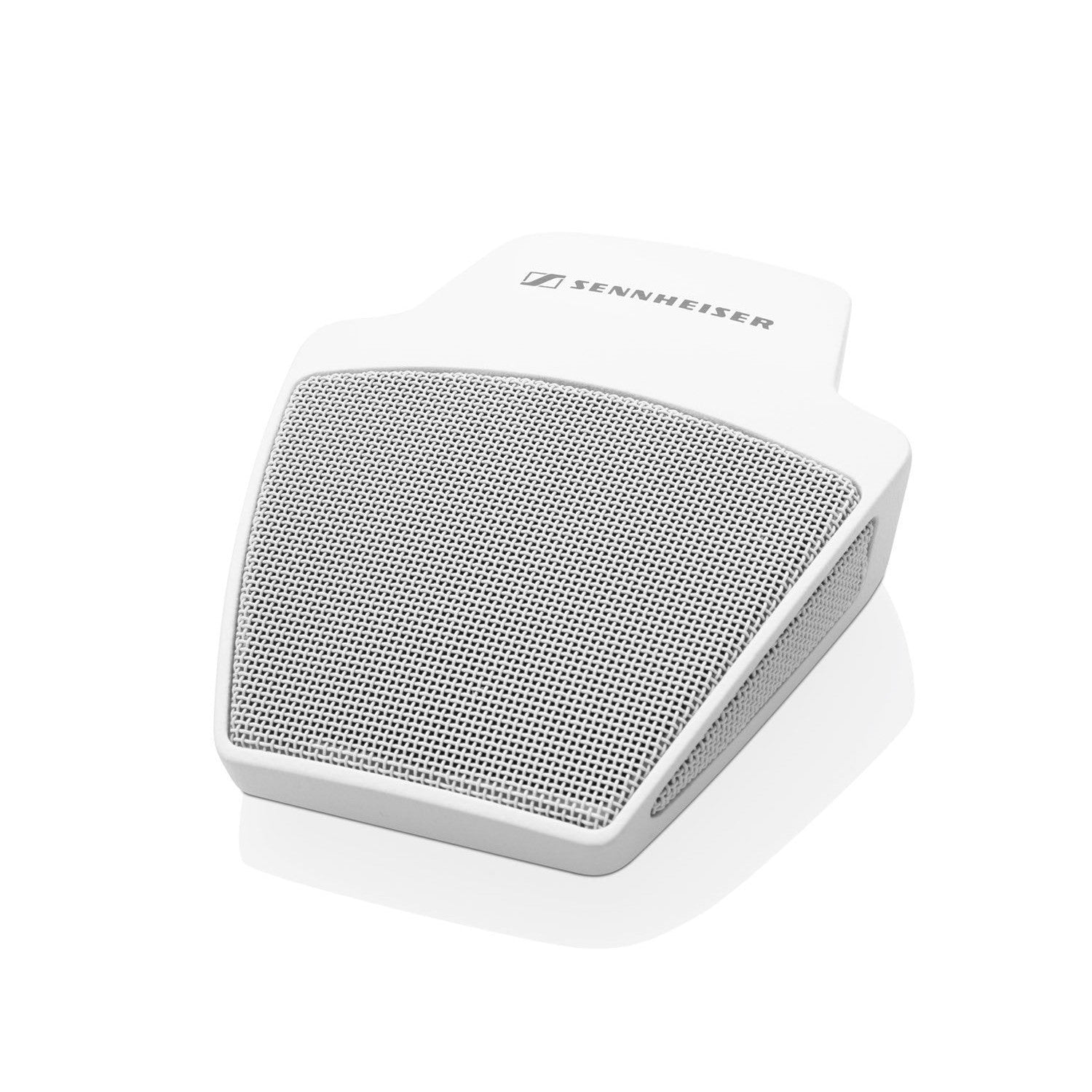

Sennheiser MEB 114 W Microphone

The sturdy on-table boundary layer microphone MEB 114 in white constitutes an improvement for any conferencing system.

Thanks to its rugged housing and its high-quality microphone capsule the MEB 114 ensures the best speech intelligibility.

Features

• Award winning design
• Optimised for speech
• Sturdy on-table boundary layer microphone
• Cardioid pre-polarised condenser microphone
• 3-Pin XLR connector
• White Finish

Specifications

General

• Connector:  Tiny XLR-3, Pin assignment: 1 = gnd, 2 = +, 3 = −
• Frequency response:  40 Hz – 20 kHz
• Max. sound pressure level:  140 dB
• Transducer principle:  Pre-polarized condenser microphone
• Pick-up pattern:  Cardioid
• Nominal impedance:  200 Ω
• Phantom powering:  P 24 - P 48
• Operating temperature:  -10 °C - +50 °C
• Equivalent noise level:  29 dB (A)
• Equivalent noise level weighted as per CCIR 468-3:  39 dB (CCIR)
• Current consumption:  1.5 mA
• Acoustics:  Boundary layer microphone
• Dynamic range:  111 dB (A)
• Sensitivity:  10 mV/Pa

Physical

• Colour:  White
• Dimensions:  85 x 100 x 25 mm (WxDxH)
• Weight:  291 g

Manufacturer: Sennheiser
