Description

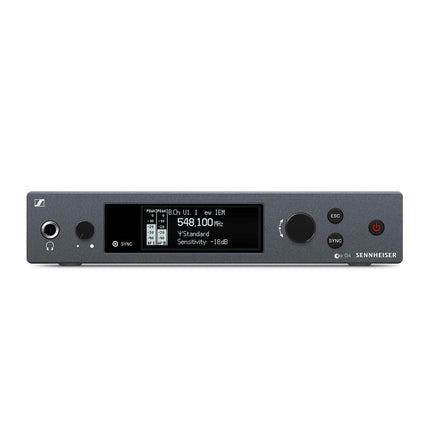

The Sennheiser SR IEM G4-GB Rack-Mount Transmitter for In-Ear System on channel 38 is a half-rack stereo transmitter.
In a full-metal housing with OLED display for full control delivering clarity along the whole frequency spectrum for daily use on stage with evolution wireless G4 In Ear Monitoring systems.
Features:
- Half-rack stereo transmitter in a full-metal housing with OLED display for full control
- Easy and flexible wireless synchronisation between transmitter and receiver via infrared
- Compatible with Sennheiser WSM control software for flexible frequency allocation
- Up to 16 compatible channels
- Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
- Transmission Range: up to 100 meters / 300 feet
- High RF output power (up to 30 mW) depending on country regulations
Specifications:
- Modulation: Wideband FM stereo (MPX pilot tone)
- Frequency ranges
- A1: 470 - 516 MHz
- A: 516 - 558 MHz
- AS: 520 - 558 MHz
- G: 566 - 608 MHz
- GB: 606 - 648 MHz
- B: 626 - 668 MHz
- C: 734 - 776 MHz
- D: 780 - 822 MHz
- E: 823 - 865 MHz
- Receiving frequencies
- Max. 1680 frequencies, adjustable in 25 kHz steps
- 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation
- 6 frequency banks with up to 16 programmable channels
- Switching bandwidth: up to 42 MHz
- Nominal/peak deviation: ±24 kHz / ±48 kHz
- MPX pilot tone (frequency/deviation): 19 kHz/±5 kHz
- Frequency stability: ±10 ppm
- Antenna output: BNC socket, 50 Ω
- RF output power at 50 Ω switchable:
- Low: typ. 10 mW
- Standard: typ. 30 mW
- High: typ. 50 mW
- Compander system: Sennheiser HDX
- AF frequency response: 25 Hz to 15 kHz
- AF input BAL AF IN L (I) + MONO/ BAL AF IN R (II): 2x XLR-3/¼" (6.3 mm) jack combo socket, electronically balanced
- Max. input level: +22 dBu
- Total harmonic distortion (THD): <0.9 %
- Signal-to-noise ratio (at nominal load and peak deviation): >90 dB
- AF output LOOP OUT BAL L (I)/ LOOP OUT BAL R (II): ¼" (6.3 mm) stereo jack socket, balanced
- Temperature range: -10 °C to +55 °C
- Power supply: 12 V DC
- Current consumption: max. 350 mA
Physical & Dimensions
- Height: 43mm
- Width: 212mm
- Depth: 202mm
- Weight: 980g
Part Number: 507844
Manufacturer: Sennheiser
