Description

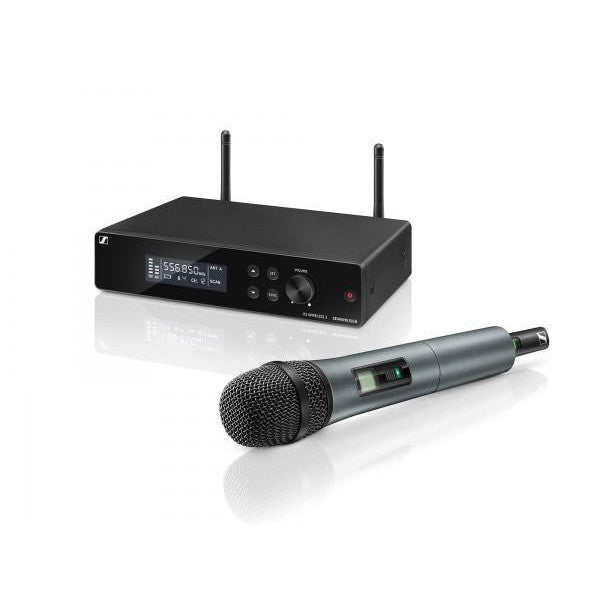

The Sennheiser XSW2-865 E Handheld Wireless System vocal set on Channel 70 is an easy to use all-in-one wireless system for singers and presenters.
Raise your voice. High flexibility for those willing to go a step further. XS Wireless 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions.
The Sennheiser XS Wireless 2 Vocal Set is an easy to use all-in-one wireless system for singers and presenters featuring Sennheiser’s renowned evolution microphone capsule e865 (condenser, super-cardioid) to capture every detail. True Diversity receiver in a metal housing and rackmount kit included.
Features
- Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules
- True diversity receiver with metal housing
- External antennas
- Automatic frequency management and synchronisation via remote channel for easy setup
- Fully tunable over a wide range of UHF frequencies
- Rackmount kit included
- Up to 12 compatible channels
Specifications
General
- Microphone: condenser
- Frequency response: 50 to 16,000 Hz (–3 dB)
- THD, total harmonic distortion: ≤ 0.9%
- Pick-up pattern: super-cardioid
- Signal-to-noise ratio: ≥ 103 dBA
- RF output power: 10 mW
- Switching bandwidth: up to 24 MHz
- Modulation: wideband FM
- Output voltage: 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
- Frequency: 8 frequency banks, each with up to 12 factory-preset channels
- Frequency range
- A: 548-572 MHz
- GB: 606-630 MHz
- B: 614-638 MHz
- C: 766-790 MHz
- D: 794-806 MHz
- E: 821-832 MHz, 863-865 MHz
- K: 925-937.5 MHz
- Sensitivity: < 3 μV at 52 dB(A)rms S/N
- Squelch: switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
- Synchronisation: 2.4 GHz, Low Power OQPSK (only active during synchronization)
- Input sensitivity: 1.8 mV / Pa
- Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
- Audio adjustment range: 40 dB, adjustable in 5-dB steps
- Line / Mic level: 20 dB, switchable
- Temperature Range
- Operation: 0°C to +40°C
- Storage: –20°C to +70°C
- Receiver Principle: double superheterodyne
- Diversity principle: True Diversity
Receiver
- Dimensions: approx. 200 x 42 x 127 mm
- Weight: approx. 680g
- Power supply: 12 V DC nom. / 300 mA
- Material: metal
- AF frequency response: 50 to 16,000 Hz (–3 dB)
Microphone
- Dimensions: approx. 260 x 50 mm
- Weight: approx. 245g
- Material: robust ABS
- Operating time: approx. 10 hrs
- Power supply: 2 AA size batteries, 1.5 V
- AF frequency response: 80-16,000 Hz
Manufacturer: Sennheiser
