Sennheiser XSW 2-ME2 E Lapel Mic System CH70

Description

Inspire your audience with the Sennheiser XSW2-ME2 E Lapel System on Channel 70 and rely on a solid wireless transmission with up to 12 compatible channels in a stable UHF band.

The XSW 2 Lavalier Mic Set is an easy to use all-in-one wireless system for presenters and moderators, excellent for a powerful and inspiring presentation.

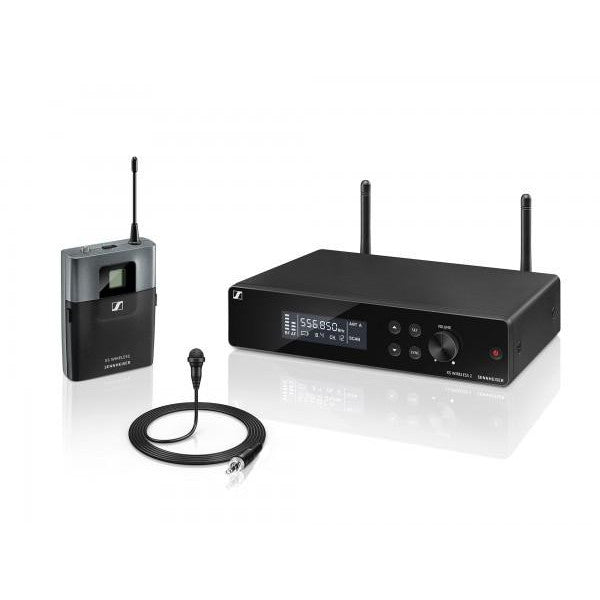

The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and an unobtrusive clip-on microphone. Metal receiver housing and rackmount kit included.

Features

  • Unobtrusive clip-on microphone for hands-free operation and compact bodypack transmitter
  • True diversity receiver with metal housing
  • External antennas
  • Automatic frequency management and synchronisation via remote channel for easy setup
  • Fully tunable over a wide range of UHF frequencies
  • Rackmount kit included
  • Up to 12 compatible channels

Specifications

General

  • Microphone: Condenser
  • Frequency response: 50 to 16,000 Hz (–3 dB)
  • THD, total harmonic distortion: ≤ 0.9%
  • Pick-up pattern: Omni-directional
  • Signal-to-noise ratio: ≥ 103 dBA
  • RF output power: 10 mW
  • Switching bandwidth: up to 24 MHz
  • Modulation: Wideband FM
  • Output voltage: '1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
  • Diversity reception: True Diversity
  • Frequency: 8 frequency banks, each with up to 12 factory-preset channels
  • Frequency range
    • A: 548-572 MHz
    • GB: 606-630 MHz
    • B: 614-638 MHz
    • C: 766-790 MHz
    • D: 794-806 MHz
    • E: 821-832 MHz, 863-865 MHz
    • K: 925-937.5 MHz
  • Sensitivity: < 3 μV at 52 dB(A)rms S/N
  • Squelch: switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
  • Synchronisation: 2.4 GHz, Low Power OQPSK (only active during synchronisation)
  • Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
  • Audio adjustment range: 40 dB, adjustable in 5-dB steps
  • Line / Mic level: 20 dB, switchable
  • Temperature Range
    • Operation: 0°C to +40°C
    • Storage: –20°C to +70°C
  • Receiver Principle: double superheterodyne

Receivers

  • Dimensions: approx. 200 x 42 x 127 mm
  • Weight: approx. 680g
  • Power supply: 12 V DC nom. / 300 mA
  • Housing: Metal
  • AF frequency response: 50 to 16,000 Hz

Transmitter

  • Dimensions: approx. 71 x 96 x 28 mm
  • Weight: approx. 95g
  • Operating time: approx. 10 hrs

Manufacturer: Sennheiser

Related Collections:

Product form

SKU: SE-XSW2-ME2-E-CH70

In stock

£455.00 Incl. VAT
