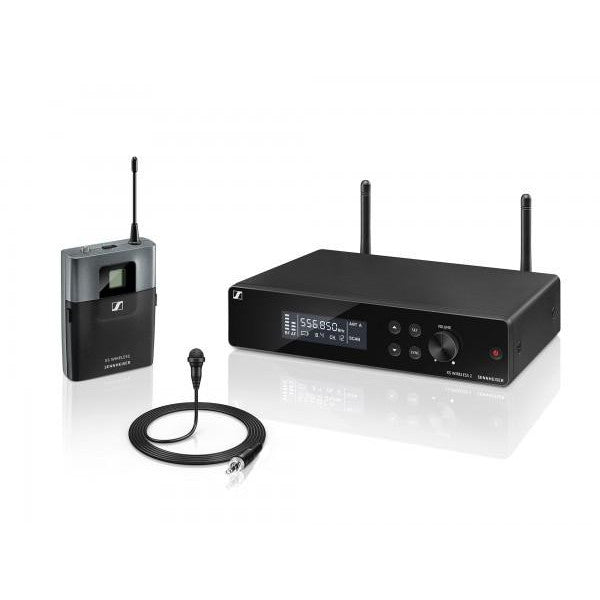

Sennheiser XSW 2-ME2 GB Lapel Mic System CH38

Inspire your audience with the Sennheiser XSW2-ME2 GB Lapel System on Channel 38 and rely on a solid wireless transmission with up to 12 compatible channels in a stable UHF band.

The XSW 2 Lavalier Mic Set is an easy to use all-in-one wireless system for presenters and moderators, excellent for a powerful and inspiring presentation.

The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and an unobtrusive clip-on microphone. Metal receiver housing and rackmount kit included.

Features

• Unobtrusive clip-on microphone for hands-free operation and compact bodypack transmitter
• True diversity receiver with metal housing
• External antennas
• Automatic frequency management and synchronisation via remote channel for easy setup
• Fully tunable over a wide range of UHF frequencies
• Rackmount kit included
• Up to 12 compatible channels

Specifications

General

• Microphone: Condenser
• Frequency response: 50 to 16,000 Hz (–3 dB)
• THD, total harmonic distortion: ≤ 0.9%
• Pick-up pattern: Omni-directional
• Signal-to-noise ratio: ≥ 103 dBA
• RF output power: 10 mW
• Switching bandwidth: up to 24 MHz
• Modulation: Wideband FM
• Output voltage: '1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
• Diversity reception: True Diversity
• Frequency: 8 frequency banks, each with up to 12 factory-preset channels
• Frequency range
  • A: 548-572 MHz
  • GB: 606-630 MHz
  • B: 614-638 MHz
  • C: 766-790 MHz
  • D: 794-806 MHz
  • E: 821-832 MHz, 863-865 MHz
  • K: 925-937.5 MHz
• Sensitivity: < 3 μV at 52 dB(A)rms S/N
• Squelch: switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
• Synchronisation: 2.4 GHz, Low Power OQPSK (only active during synchronisation)
• Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
• Audio adjustment range: 40 dB, adjustable in 5-dB steps
• Line / Mic level: 20 dB, switchable
• Temperature Range
  • Operation: 0°C to +40°C
  • Storage: –20°C to +70°C
• Receiver Principle: double superheterodyne

Receivers

• Dimensions: approx. 200 x 42 x 127 mm
• Weight: approx. 680g
• Power supply: 12 V DC nom. / 300 mA
• Housing: Metal
• AF frequency response: 50 to 16,000 Hz

Transmitter

• Dimensions: approx. 71 x 96 x 28 mm
• Weight: approx. 95g
• Operating time: approx. 10 hrs

Manufacturer: Sennheiser
