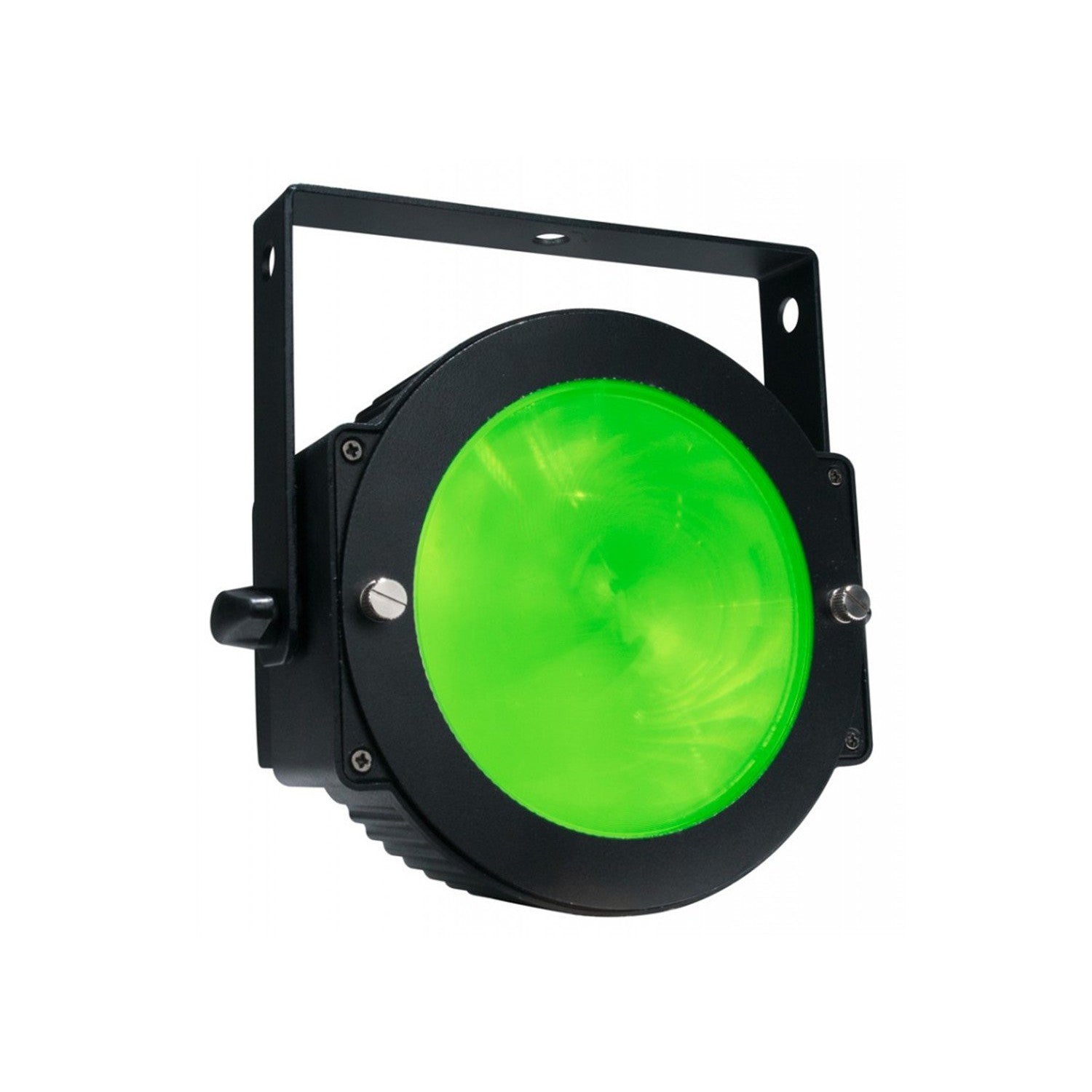

ADJ Dotz Par Fixture
ADJ Dotz Par Fixture
Prices VAT inclusive. UK delivery free.
ADJ Dotz Par uses advanced COB (Chip On Board) technology allowing for a powerful LED engine to be placed in a small amount of space.
The result is a high output, smooth colour mixing LED Par with no RGB shadows. Designed for mobile or permanent wash lighting of stages, clubs, dance floors and churches. The COB LED engine on the Dotz Par is a TRI 36W (3-In-1).
The Dotz Par produces wash of 60-degrees (25-degrees if you put on the supplied lens kit). It has 4 DMX Channel modes for programming flexibility, 35 built-in colour macros and 5 selectable Dim Curves.
This fixture has many pro features such as: 0-100% electronic dimming, strobe/pulse effect, Flicker Free operation, DMX and power power daisy-chaining , and a 4-button LCD DMX display. Dotz Par may run in its stand-alone mode from built-in programs, sound actively, from a DMX controller , or from the ADJ DOTZ RF wireless remote control.
- High output slim low profile Par fixture with one TRI (3-IN-1) RGB COB LED
- COB Technology (Chip On Board) produces powerful, smooth RGB colour mixing with rich palettes of colour
- Use as Wash/par or Pixel Mapped for a stunning visual effect
- Intelligently designed, patent pending power & DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss
- Built-In preset colours and programs
- Flicker Free operation (No flickering on camera)
- 5x Operational modes: Auto Run, Sound Active, Colour Macro, Dimmer, and DMX Controlled Mode
- 4 DMX channel modes: 3, 4, 5 or 9 channel
- 35 built-in Colour Macros
- LED pulse and strobe effect
- Electronic Dimming: 0 - 100%
- 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
- Beam angle: 60-degrees (25-degrees with supplied lens kit)
- 3-pin XLR chassis mount connectors for DMX linking
- IEC AC IN/OUT to daisy chain power (up to 13 Dotz Par’s @ 110V and 28 Dotz Par’s @ 230V)
- Power Draw: 36W total (All LEDs @ Full On)
- 4-button LCD DMX display on rear panel
- Compatible with ADJ Dotz RF wireless remote control (sold separately ID 1223200035)
- Single yoke allows fixture to be mounted
- Light Source: 1x 36-Watt COB TRI LED (RGB: 3-IN-1, rated at approximately 50,000 hrs)
- Auto sensing power supply: AC 100V/60Hz - 240V/50Hz
Physical & Dimensions
- Length: 165mm
- Width: 165mm
- Height: 114mm
- Weight: 2kg
