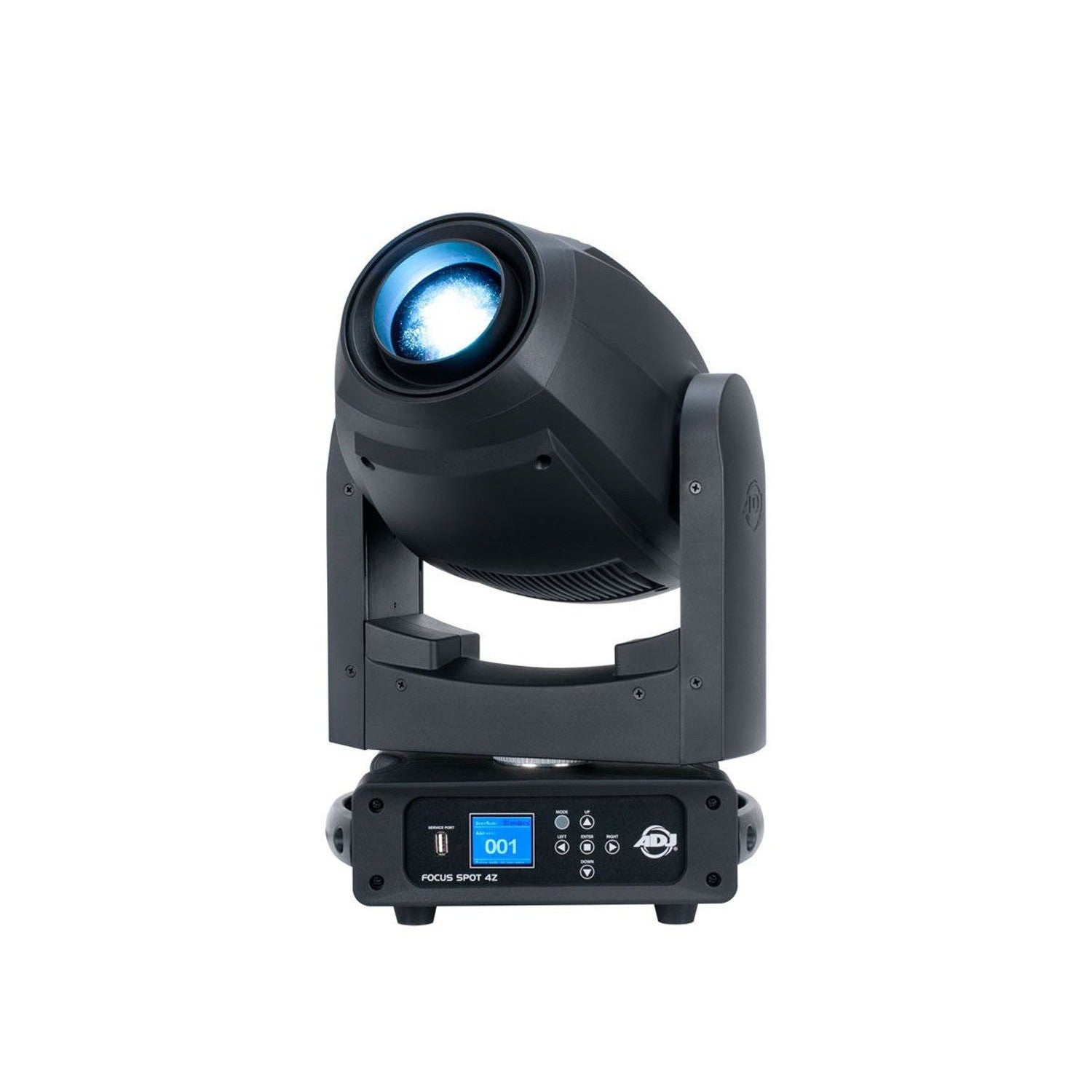

ADJ Focus Spot 4Z Moving Head

Description

The ADJ Focus Spot 4Z is powered by a brilliant 200W cool white LED engine and is equipped with motorised focus and zoom (11 ~ 22-degree zoom).

Designed for temporary live events and fixed installations in nightclub, stages or churches. It is professionally fit with one GOBO wheel with 6 rotating/replaceable GOBOS, 8 vibrant colours plus white, and 2 prism wheels (one 5-facet linear and one 6-facet circular).

The Focus Spot 4Z has Locking Power In and out connectors to daisy chain the power, as well as Locking 3-pin DMX In/Out to transmit a DMX signal from one fixture to the next. There is a USB firmware update port built-in plus advanced control options such as: 16-bit fine pan and tilt, multiple DMX control modes, and 6 different dimming options. The Focus Spot 4Z offers a robust light output in a light weight, compact foot print (18-inch high and one 23 pounds).

FEATURES:

  • Individual Colour and Gobo Wheels
  • 8 Colours + White
  • 6 Rotating Replaceable Gobos + Open
  • Electronic Dimming 0-100%
  • DMX-512 protocol
  • Locking 3-Pin XLR Connections In/Out
  • 3 DMX Channel Modes: 16/18/22
  • Multiple Unit Power Linking

SPECIFICATION:

Source

  • Source: Cool White LED Engine
  • Individual LED wattage : 200W
  • Average lifetime: approximately 50,000 hrs

Optics

  • Motorised Zoom: 11 ~ 22-degrees plus 16-bit Fine Zoom
  • Motorised Focus
  • 2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular, prism overlay

Control

  • 2 operational modes : Program Mode or DMX control
  • 3 DMX Channel Modes: 16/18/22 Channels
  • RDM compatible (Remote Device management)
  • Internal Programs with built-In DMX Recorder
  • 16bit dimming 0-100%
  • 6 Dimming Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2
  • Adjustable Gamma Brightness : 2.0 / 2.2 / 2.4 / 2.6 or 2.8
  • Adjustable LED Refresh Rate from 900Hz to 25kHz for flicker free operation
  • Various strobe effects
  • 6-button Colour display
  • Battery inside, allowing to access the fixture Menu without power connection
  • 16bit Pan: 540 & 630 degrees
  • 16 bit Tilt: 270 degrees
  • 3 Fan settings : Auto, High and Low Noise

Colours

  • 1 colour wheel with 8 dichroic colours + white

Gobos

  • 1 gobo wheel with 6 aluminium GOBOs + open
  • All gobos removable, rotatable and indexable
  • Gobo Shake Effect
  • Gobo size: 22,5mm (outer); 19mm (viewable); 0.5-2mm (thickness)

Construction

  • Plastic housing
  • 2 cooling fans

Electrical

  • Multivoltage : 100-240V 50/60Hz
  • Power Draw : 256W

Connections

  • Locking 3-pin DMX In/Out
  • Locking Power In/Out (Daisy chain 4 units @ 120V; 10 units @ 240V)
  • USB firmware update port

Dimensions & Weight

  • Dimensions: 457 x 279 x 182mm
  • Weight: 10 kg.

Manufacturer: ADJ

Related Collections:

Product form

SKU: ADJ-FS-4Z

Out of stock

£1,037.00 Incl. VAT

    Delivery informationDelivery information

    There is a free standard delivery option for most UK orders as well as a £2.99 option which means your order will arrive faster than normal.

    For standard delivery your order should arrive within 2-5 working days. For the faster option it should be 1-3 working days.

    If you're from Northern Ireland there will be a £5 surcharge for heavier items. If you're buying a light item (under 2kg) please let us know as we may be able to refund your postage after the purchase.

    Buy now pay laterBuy now pay later

    Paypal Pay in 3 lets you spread your purchase interest free over 3 separate payments.

    If you'd like to use Paypal Pay in 3, please perform the following steps.

    1. Add the item to your cart as normal.

    2. Check out with Paypal.

    3. Log into Paypal.

    4. You should see a screen detailing the item costs. Scroll down and you should see an option for "Pay in 3".

    5. Continue the checkout process.

    1/3 of the purchase price will be taken immediately and then the rest over the next 2 months the rest of the payment will be taken.

    Please see more info about the service here.

    As with any sort of buy now pay later, please only use this service for added convenience when making a bigger purchase. It should only be used if you're 100% sure you can make all of the payments on time.
