Description

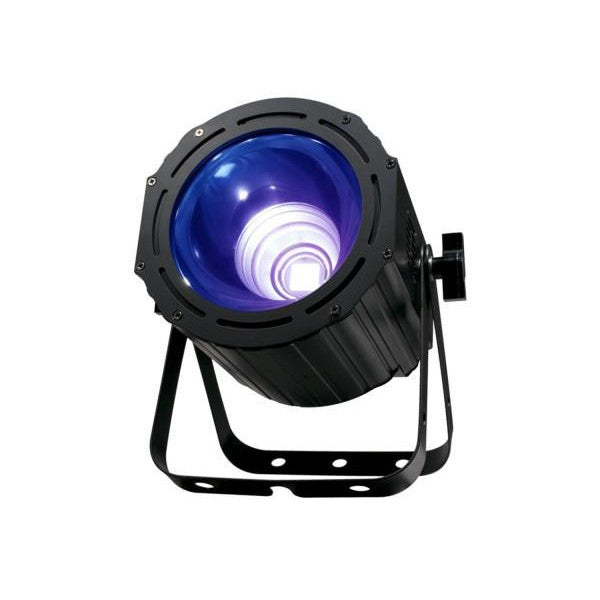

The ADJ UV COB Cannon produces a large ultraviolet wash from high output, advanced COB (Chip On Board) UV LEDs COB LED technology allowing for a powerful LED engine to be placed in a small amount of space.
This professional lighting fixture is designed for washing performance stages, theatrical productions and special effects productions. It requires very little maintenance or service due to its sold state electronics.
FEATURES:
- Super high output UV light cannon
- Great for performance stages, theatrical productions and special effects productions – requires almost no maintenance – low heat, low power consumption
- Advanced COB Technology (Chip On Board) produces powerful, smooth UV color
- 3 Operation modes: Sound Active, Manual, & DMX
- 3 DMX Channel modes: 1, 2 or 3 channel
- 4-button digital DMX display
- Flicker Free operation (No flickering on camera)
- 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
- LED pulse and strobe effect
SPECIFICATION:
General
-
Electronic Dimming: 0 - 100%
- Beam angle: 33 degrees
- Dual yoke allows fixture to be hung or set on the ground
- DMX Linkable: 3-pin XLR data connectors
- Power Linkable: PowerCon connectors (Up to 3 UV COB Cannon’s @ 120V, 5 UV COB Cannon’s @ 220V fixtures)
- Long Life LEDs Rated at approximately 25,000 hrs.)
- Power Draw: 120W total (All LED's @ Full)
- Light Source: 100W COB (Chip On Board) UV LED engine, 370nm wavelength
- Multi-voltage Operation: Auto switching, AC 100V - 240V/50Hz -60Hz
Physical & Dimensions
- Length: 320mm
- Width: 278mm
- Height: 200mm
- Weight: 4.98kg
