ADJ Vizi Wash Z37 Moving Head

Description

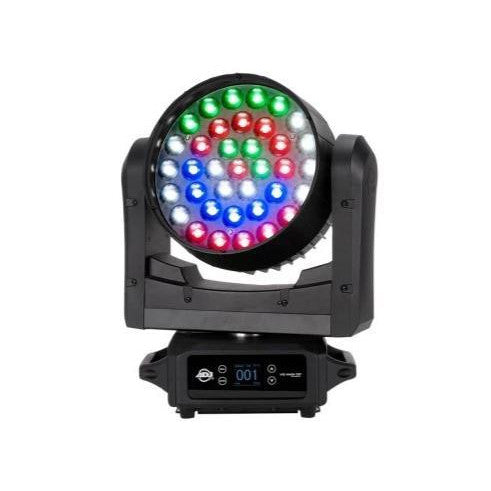

The Vizi Wash Z37 is a 740W professional moving head wash fixture with variable motorised zoom (10 ~ 60-degrees) and thirty seven 20W Quad (RGBW / 4-IN-1) LEDs.

It features 11 zones of LED ring control, smooth 16-bit dimming control from 0-100%, locking Power Twist In/Out to daisy chain power, both 3-pin and 5-pin DMX In/Out and a built-in USB port for a convenient connection to update software if needed.

This fixture is ideal for stages, theatres, churches, nightclubs, concert venues and event productions.

FEATURES:

  • 740W professional moving head wash fixture
  • Variable motorised zoom (10 ~ 60-degrees)
  • Thirty-seven 20W Quad (RGBW / 4-IN-1) LEDs
  • 11 zones of LED ring control
  • Smooth 16-bit dimming control from 0-100%
  • Locking Power Twist In/Out to daisy chain power
  • Both 3-pin and 5-pin DMX In/Out
  • Built-in USB port
  • Ideal for stages, theatres, churches, nightclubs, concert venues and event productions

SPECIFICATION:

Light Source:

  • 37x 20W RGBW (4-IN-1 - Red, Green Blue & White) Osram LEDs
  • 20,000 Hour Average LED Life
  • LUX @ 5M: 15000 lux @ 10-degrees; 1100 lux @ 60-degrees

Effects:

  • 11-zone Ring Control with Colour Macros
  • Variable Strobe & Pulse effects

Connections:

  • Seetronic locking power In/Out to daisy chain power
  • 3-pin and 5-pin DMX connections for data linking
  • RDM (Remote Device Management)
  • USB Input for Updating Fixture Firmware

Control:

  • Motorised Linear Zoom: 10 ~ 60-degrees

  • 4-button Touch Control Panel with Large LED Screen
  • Control: DMX-512
  • RDM compatible (Remote Device management)
  • Multiple DMX Channel Modes (14, 16, 17 & 61 channels)
  • Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
  • Dim Speed control (0.1~10 Seconds)
  • Dimming: 0 - 100%
  • Strobe & pulse control
  • Various Strobe speeds (1-40Hz)
  • Adjustable LED Refresh Rates (900~25k Hz)
  • Adjustable Gamma Settings (1.0-2.8)
  • Colour display with touch button on two sides
  • With Wired Digital Communication Network

Electrical:

  • Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
  • Power Draw: 725W, 6.03A @ 120V or 700W 3A @ 230V

Dimensions/Weight:

  • Dimensions (LxWxH): 16” x8.8” x 20.3” / 408x226x518mm
  • Weight: 41 lbs. / 18.6 kg.

Manufacturer: ADJ

Product form

SKU: ADJ-VZ-W37
Barcode: 818651026467

Out of stock, May be available fast dispatch from supplier. Contact us.  Trade and regular customers please contact us directly about this item.
contact@spartanmusic.co.uk - please list item and quantity and a quote and ETA will be provided

£2,616.00 Incl. VAT
