Description

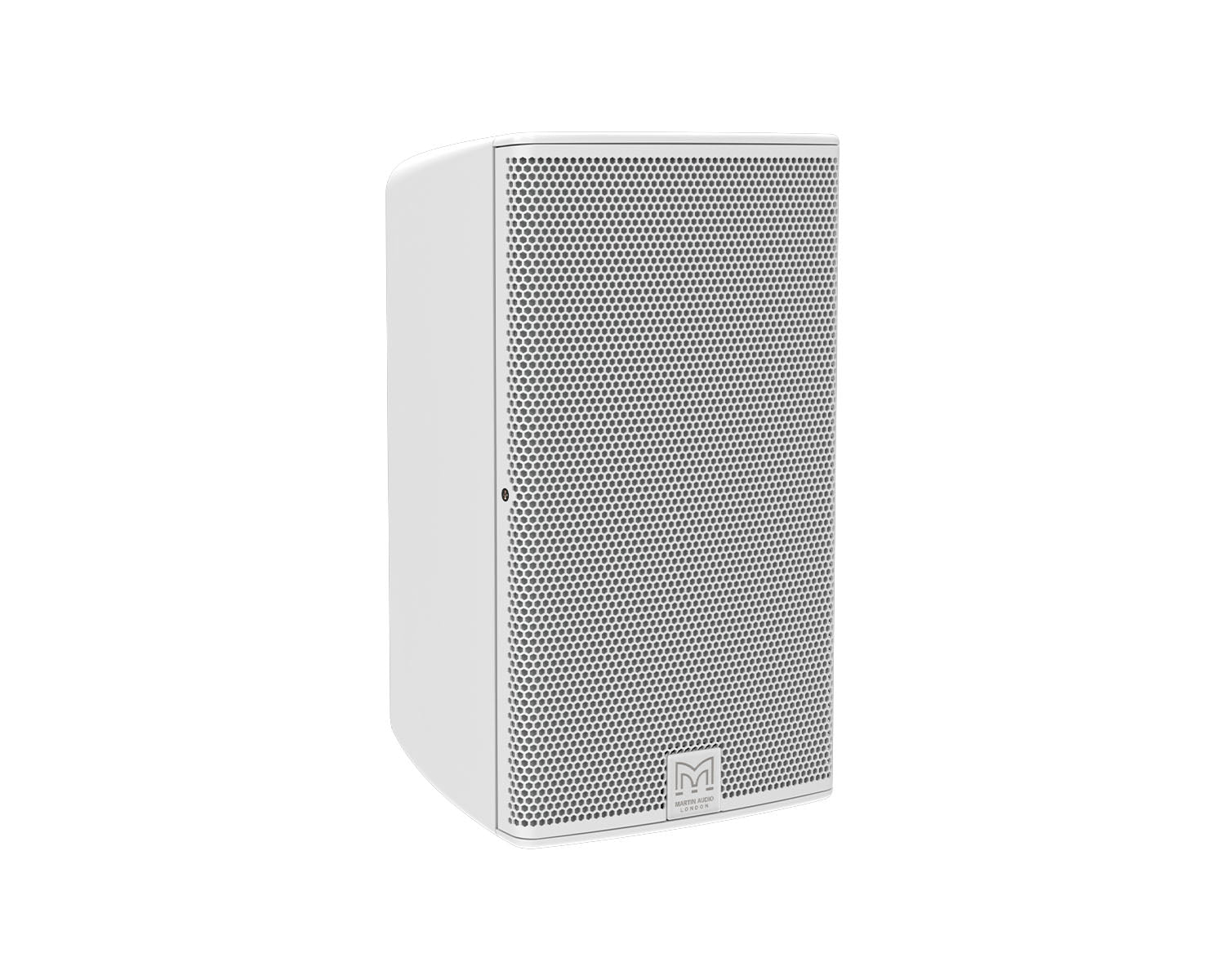

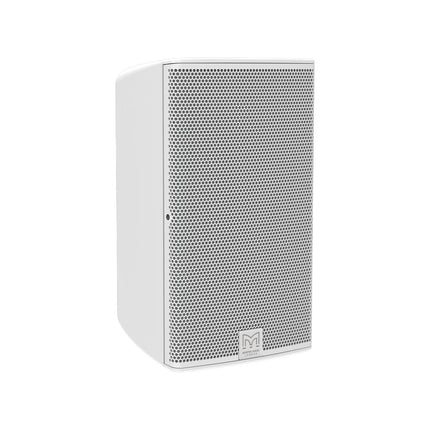

The ADORN A80T is a two-way passive speaker with an elegant design that is perfect for architectural environments that require high fidelity sound from an unobtrusive, compact enclosure. It brings class-leading performance, reliability and value to a wide range of commercial sound applications — from retail outlets, bars and restaurants to corporate offices and convention centres.Comprising an 8” (203mm) LF driver and a 1” (25mm) polymer dome HF compression driver on a 90° x 50° horn, it handles 200W AES, 800W peak and can produce 120dB peak output at 1 metre. It has a smooth frequency response and strong bass reproduction that extends down to 63Hz.With a nominal impedance of 8 ohms, multiple speakers can be driven in parallel from a single channel of a low impedance amplifier, such as the Martin Audio VIA2502 or VIA5002, thereby maximising efficiency and minimising cost. A80T also incorporates a high-quality transformer for 70V/100V line operation, with transformer taps selected by a rotary switch.Product Features
Contemporary, unobtrusive design
High output capability
High fidelity sound
70V/100V line transformer
Low and high-frequency overload protection
Vertical or horizontal orientation
90° x 50° coverage
IP54 with optional waterproof connector cover
5-year warranty
Product Specifications
Type: Compact passive two-way system, front ported bass reflex
Frequency Response: 63Hz-17kHz ± 3dB, -10dB @ 50Hz
Drivers
LF: 8” with 2” high-temp voice coil, ferrite motor system
HF: 1” with 1” exit polymer dome compression driver
Rated Power: 200W AES, 800W peak
Recommended Amplifier: VIA2502 or VIA5004 (or VIA5002 for70V/100V line)
Sensitivity: 91dB
Maximum SPL: 120dB peak
Nominal Impedance: 8 ohms
Dispersion (-6dB): 90° H x 50° V
Crossover: 2.3kHz passive (LF and HF auto-resetting fuses)
Transformer Taps:
70V: 60/30/15/7.5W
100V: 60/30/15W
Recommended High-Pass Filter: 40Hz 24dB/oct (8 ohm), 60Hz 24dB/oct (Transformer)
Enclosure: ABS, UL 94V-0 rated
Finish: White
Grille: Perforated steel
Connectors: Low profile 13A push-lock
Fittings: 6 x M6 inserts for wall or ceiling brackets
Dimensions Excl. Bracket (WxHxD): 246mm x 421mm x 233mm (9.69in x 16.56in x 9.18in)
Weight: 9.08kg (20.02lbs)
Accessories:
IP54 rating with optional waterproof connector cover (not included)
Wall bracket WB6/8 (included)
What's in the Box?
ADORN A80T
WB6/8 Wall bracket
