Description

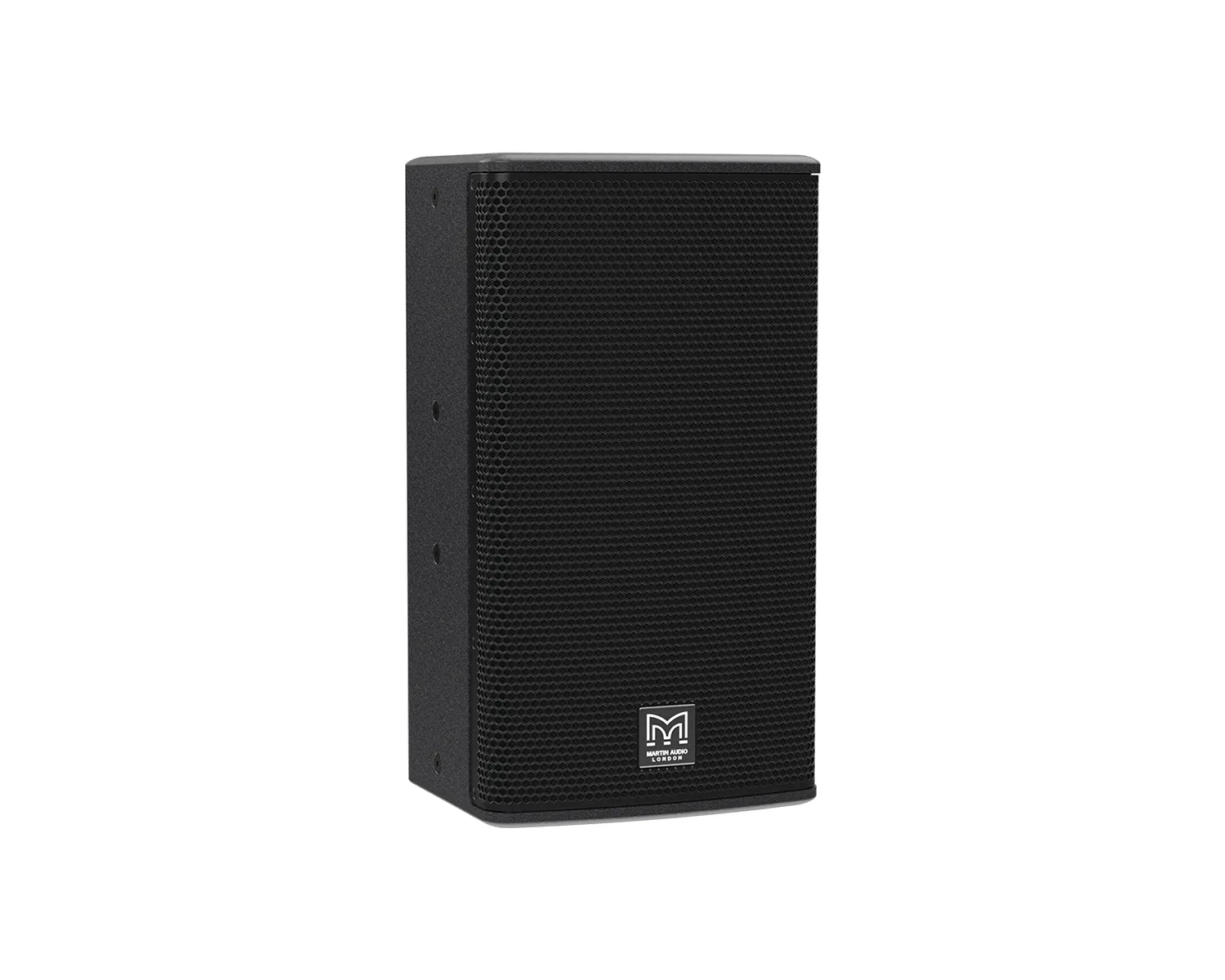

With a peak SPL of 125dB (131dB with crest factor 4), Blackline Q10 is a high-performance yet compact passive two-way loudspeaker system. It features a 10” (250mm) LF driver with a 2.5” (63mm) voice coil and a 1” (25mm) exit HF compression driver with a 1.4” (36mm) dome.
The system incorporates a Differential Dispersion horn for wider and more consistent coverage, which can be easily rotated for horizontal or vertical orientation depending on deployment requirements.
Blackline Q10 offers exceptional versatility across a wide range of professional applications from distributed sound reinforcement, houses of worship, and AV events to front-fill/ in-fill duties and use as an unobtrusive stage monitor. Its high output performance makes it uniquely suited for music bars and clubs that demand upfront sound levels from a compact enclosure.
When paired with a BlacklineQ Series subwoofer, Q10 becomes a remarkably powerful yet portable system, ideal for small dancefloors or sound reinforcement applications where space is limited but performance is critical.
Constructed from durable plywood and finished in a tough black textured paint, Q10 features a screw-fixed steel grille, M8 inserts for wall brackets, yokes or eyebolt suspension, and a pole-mount socket with a removable cover to maintain clean lines in installed applications.
This full-range, passive two-way system is recommended to be used with a processor and amplifier, or a combined amplifier-processor unit, such as a DX processor and VIA amplifier, or an iKON combined amplifier and processor.
Product Features
Compact passive two-way system
Symmetrical multi-angle plywood enclosure
Peak SPL of 125dB (131dB with crest factor 4)
User-rotatable Differential Dispersion horn
Dispersion: 90°–110° horizontal × 50° vertical
Vertical and horizontal orientation
Screw-tight, cloth-backed perforated steel grille
Integrated ergonomic handle made from recycled ABS
Pole-mount cover maintains clean lines
8Ω nominal impedance
Two NL4 connectors
Flexible mounting options via M8 inserts
85% Post Consumer Recycled ABS Plastic
FSC Certified Cardboard Packaging
Biodegradable Box Sealing tape
Product Specifications
Type: Compact, passive two-way loudspeaker
Frequency Response: 63 Hz – 17 kHz ± 3 dB, -10 db @ 48 Hz
Driver (LF): 10” (250 mm) with 2.5” (63 mm) voice coil, ferrite motor system
Driver (HF): 1" (25 mm) exit compression driver with 1.4" (36 mm) voice coil,polyimide dome
Rated Power: 250 W AES, 1000 W peak
Required Electronics: Processor and amplifier, or a combined amplifier-processor unit
Recommended Electronics: DX0.4, DX0.6 or DX4.0 system processor and VIA amplifier, or iKON amplifier-processor
Sensitivity: 95 dB
Maximum SPL: 119 dB continuous, 125 dB peak, 131 dB peak with crest factor 4
Nominal Impedance: 8 ohm
Dispersion: Dispersion: 90°–110° (horizontal) × 50° (vertical)
Crossover: 3 kHz passive
Enclosure: Symmetrical multi-angle plywood
Finish: Black textured paint
Protective Grille: Black perforated steel grille with scrim cloth backing
Connectors: 2 x NL4 connector
Pin Connections (Input): 1+/1–
Pin Connections (Link): 1+/1– to 1+/1– and 2+/2– to 2+/2–
Fittings:
15 x M8 inserts, 6 x M8 inserts for wall bracket
1 x pocket handle made from recycled ABS
Pole-mount socket with removable cover
Dimensions (WxHxD): 300 mm x 545 mm x 310 mm (11.8 in x 21.5 in x 12.2 in)
Weight: 15.3 kg (33.7 lbs)
Accessories (Optional):
Wall bracket WB10/12
M8 eye bolt HTKCT05, yoke, transit cover
