Description

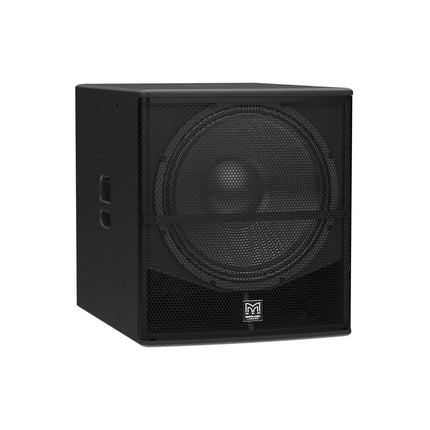

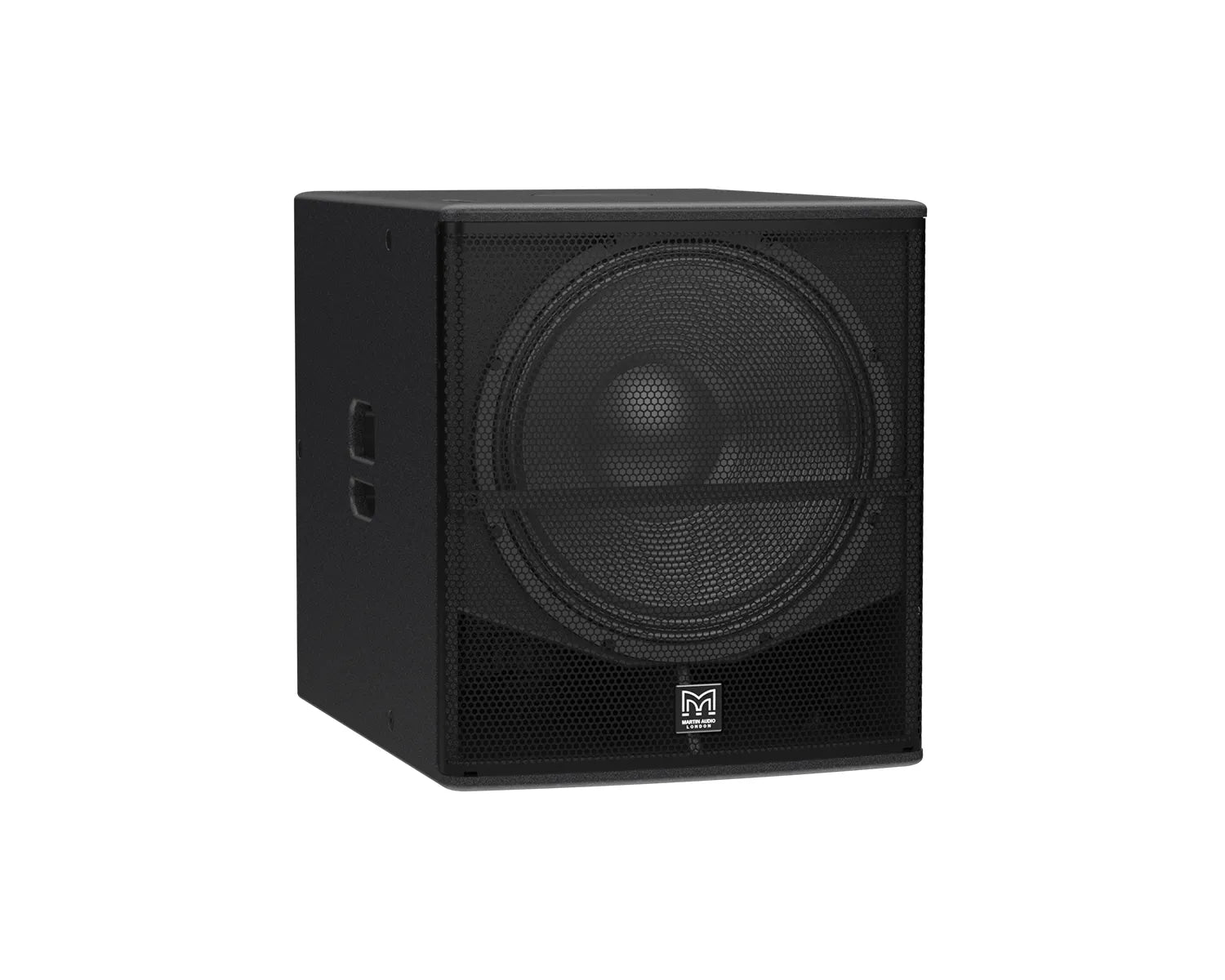

Blackline Q118 is a compact, high-performance subwoofer designed for use with Blackline Q Series full-range loudspeakers. It extends the system’s low-frequency response down to 38Hz and delivers exceptional impact, with a peak SPL of 130dB (136dB with crest factor 4).
Q118 features an 18” (460 mm) driver with a 4” (100 mm) voice coil, housed in a durable plywood enclosure finished in tough black paint. A perforated, impact-resistant steel grille protects the driver, while slot ports enhance efficiency and minimize noise turbulence.
Designed for versatile deployment, Q118 can be used individually, stacked or flown using integral M10 inserts. It also includes an M20 1.4” (35 mm) pole-mount fitting for seamless integration with other loudspeakers in BlacklineQ series. There are two signal link outputs—one positioned at the top and one at the bottom of the enclosure when oriented vertically. This allows for flexible, discreet and tidy signal connections to other BlacklineQ loudspeakers, regardless of setup.
Ergonomic side handles ensure easy handling and rubber feet on the base align with top-surface recesses to provide secure and stable stacking. A castor kit is available as an optional accessory.
When paired with BlacklineQ Series full-range systems, crossover and EQ functions can be managed via the DX0.4, DX0.6 or DX4.0 system controllers, or the onboard DSP of an iKON amplifier.
Product Features
Compact, direct-radiator subwoofer
1 x 18” (460mm) driver with 4” (102mm) voice coil
Peak SPL of 130dB (136dB with crest factor 4)
Durable plywood enclosure
Slot ports for reduced air noise
Perforated steel grille
M20 / 1.4” (35mm) pole-mount socket
8Ω nominal impedance
Integral ergonomic handles
Rebate recesses for stable vertical stacking
M10 flying inserts
Fittings for optional castors
Three NL4 connectors
85% Post Consumer Recycled ABS Plastic
FSC Certified Cardboard Packaging
Biodegradable Box Sealing tape
Product Specifications
Type: Compact, high-performance 18" subwoofer
Frequency Response: 38 Hz – 100 Hz ± 3 dB, -10 db @ 31 Hz
Driver: 18” (460 mm) with 4” (100 mm) long excursion voice coil, ferrite motor system
Rated Power: 800 W AES, 3200 W peak
Required Electronics: Processor and amplifier, or a combined amplifier-processor unit
Recommended Electronics: DX0.4, DX0.6 or DX4.0 system processor and VIA amplifier, or iKON amplifier-processor
Sensitivity: 95 dB
Maximum SPL: 124 dB continuous, 130 dB peak, 136 dB peak with crest factor 4
Nominal Impedance: 8 ohm
Dispersion: Omnidirectional
Crossover: N/A
Enclosure: Durable plywood
Finish: Black textured paint
Protective Grille: Black perforated steel grille with scrim cloth backing
Connectors: 3 x NL4 connectors: 2 at bottom rear (input and link A), 1 at top rear (link B)
Pin Connections (Input): 1+/1–
Pin Connections (Link A): 1+/1– to 1+/1– and 2+/2– to 2+/2–
Pin Connections (Link B): 1+/1– on input to 2+/2– on link B
Fittings:
16 x M10 inserts: 2 on top, 2 on bottom, 4 on left, 4 on right, 4 on rear
16 x M8 inserts on rear for optional castors
2 x bar handles with recycled ABS pockets: 1 on each side
M20 top-mounted thread plate for pole mounting
4 x skids on base, 4 x recesses on top: for stacking vertically
Dimensions (WxHxD): 530 mm x 606 mm x 690 mm (20.9 in x 23.9 in x 27.2 in)
Weight: 45.5 kg (100.3 lbs)
Accessories (Optional):
M10 eye bolt HTKCT06
Wind-up telescopic pole ASF20071
Set of four castors WHEELKIT
Transit cover
