Description

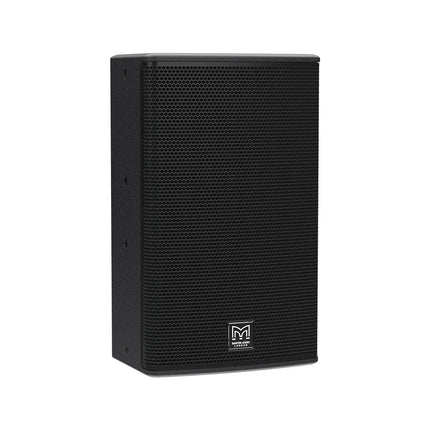

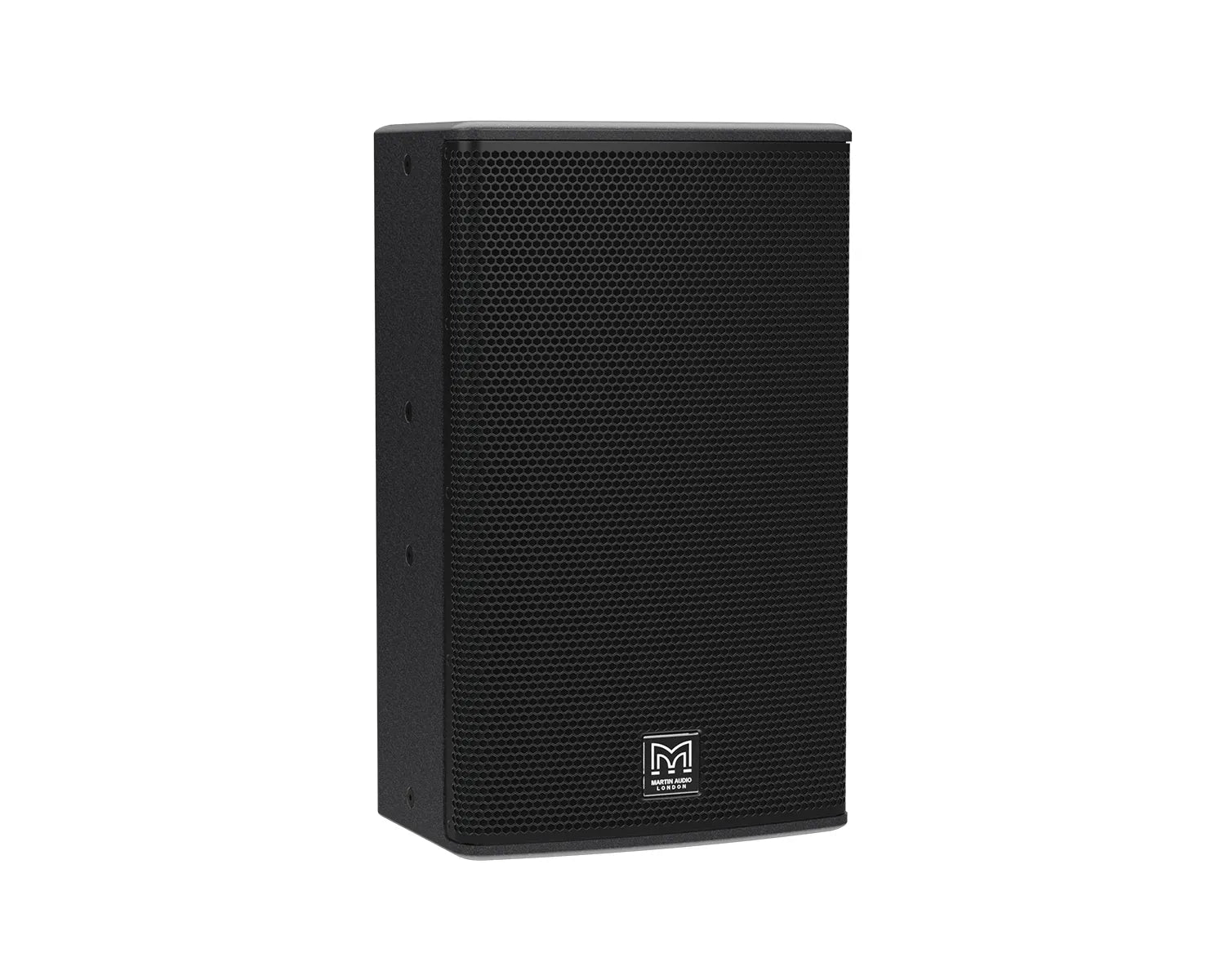

With a peak SPL of 127dB (133dB with crest factor 4), Blackline Q12 meets the demand for a compact loudspeaker capable of delivering high sound levels — whether used as a stand-alone system or in combination with a BlacklineQ subwoofer. It features a 12” (300mm) LF driver with a 2.5” (63mm) voice coil and a 1” (25mm) exit HF compression driver with a 1.7” (43mm) dome. It has a Differential Dispersion horn for wider and more consistent coverage, which can be easily rotated for horizontal or vertical orientation, depending on deployment requirements.
Blackline Q12 is a compact yet powerful loudspeaker, featuring a 12” (300mm) LF driver with 2.5” (64mm) voice coil and a 1” (25mm) exit HF compression driver with 1.7” (43mm) dome. Its Differential Dispersion horn ensures wide and consistent coverage and can be easily rotated for either horizontal or vertical orientation, making it adaptable to various deployment needs.
When paired with a BlacklineQ Series subwoofer, Q12 transforms into a high-performance dancefloor or sound reinforcement system, delivering impressive output and clarity for its size, while remaining highly portable.
Constructed from durable plywood, Q12 is finished in a tough black paint and protected by a screw-tight steel grille. It includes M8 inserts for wall brackets, yoke or eyebolt suspension, and the pole-mount socket has a removable cover to maintain clean aesthetics in installed applications.
This full-range, passive two-way system is recommended to be used with a processor and amplifier, or a combined amplifier-processor unit, such as a DX processor and VIA amplifier, or an iKON combined amplifier and processor.
Product Features
Compact passive two-way system
Symmetrical multi-angle plywood enclosure
Peak SPL of 127dB (133dB with crest factor 4)
User-rotatable Differential Dispersion horn
Dispersion: 90°–110° horizontal × 50° vertical
Vertical and horizontal orientation
Screw-tight, cloth-backed perforated steel grille
Integrated ergonomic handle made from recycled ABS
Pole-mount cover maintains clean lines
8Ω nominal impedance
Two NL4 connectors
Flexible mounting options via M8 inserts
85% Post Consumer Recycled ABS Plastic
FSC Certified Cardboard Packaging
Biodegradable Box Sealing tape
Product Specifications
Type: Compact, passive two-way loudspeaker
Frequency Response: 56 Hz – 17 kHz ± 3 dB, -10 db @ 45 Hz
Driver (LF): 12” (300 mm) with 2.5” (63 mm) voice coil, ferrite motor system
Driver (HF): 1" (25 mm) exit compression driver with 1.7" (43 mm) voice coil
Rated Power: 300 W AES, 1200 W peak
Required Electronics: Processor and amplifier, or a combined amplifier-processor unit
Recommended Electronics: DX0.4, DX0.6 or DX4.0 system processor and VIA amplifier, or iKON amplifier-processor
Sensitivity: 96.5 dB
Maximum SPL: 121 dB continuous, 127 dB peak, 133 dB peak with crest factor 4
Nominal Impedance: 8 ohm
Dispersion: Dispersion: 90°–110° (horizontal) × 50° (vertical)
Crossover: 2.7 kHz passive
Enclosure: Symmetrical multi-angle plywood
Finish: Black textured paint
Protective Grille: Black perforated steel grille with scrim cloth backing
Connectors: 2 x NL4 connector
Pin Connections (Input): 1+/1–
Pin Connections (Link): 1+/1– to 1+/1– and 2+/2– to 2+/2–
Fittings:
16 x M8 inserts, 6 x M8 inserts for wall bracket
1 x pocket handle made from recycled ABS
Pole-mount socket with removable cover
Dimensions (WxHxD): 358 mm x 600 mm x 321 mm (14.1 in x 23.6 in x 12.7 in)
Weight: 18.4 kg (40.6 lbs)
Accessories (Optional):
Wall bracket WB10/12
M8 eye bolt HTKCT05, yoke, transit cover
