Description

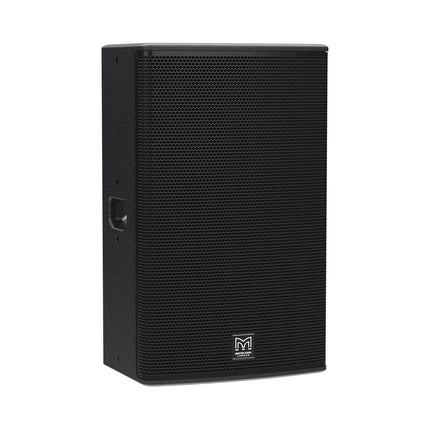

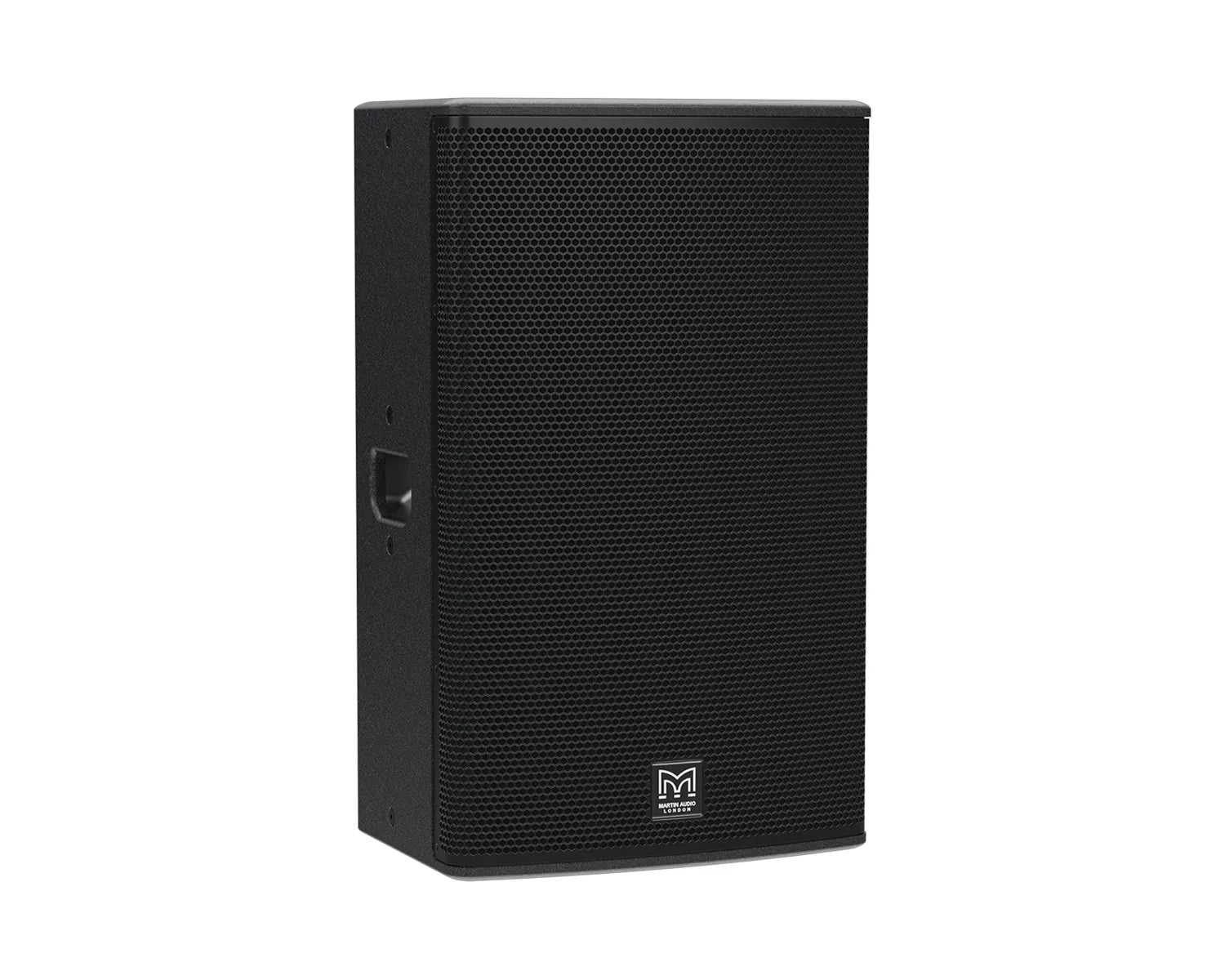

Blackline Q15 is a significant upgrade over its predecessor, delivering enhanced performance and wider coverage, and features a die-cast aluminium chassis for improved thermal conductivity and more efficient motor cooling.
A passive two-way system, Q15 is designed for professional portable applications and installations that demand the ultimate in sonic performance from a single enclosure.
Capable of delivering a peak SPL of 133dB (139dB with crest factor 4), Blackline Q15 features a powerful 15” (380mm) LF driver with a 4” (102mm) voice coil and a 1.4” (35mm) exit HF compression driver with a 3” (75mm) dome. Its Differential Dispersion horn ensures wide and consistent coverage and can be easily rotated for horizontal or vertical orientation, depending on deployment requirements.
Q15 is built from robust plywood and finished in durable black paint. It has a screw-tight steel grille, M8 inserts for wall bracket, yoke or eyebolt suspension, and a pole-mount socket with a removable cover to maintain clean lines for installation applications.
This full-range, passive two-way system is recommended to be used with a processor and amplifier, or a combined amplifier-processor unit, such as a DX processor and VIA amplifier, or an iKON combined amplifier and processor.
Product Features
Passive two-way system
Symmetrical multi-angle plywood enclosure
Peak SPL of 133dB (139dB with crest factor 4)
User-rotatable Differential Dispersion horn
Dispersion: 70°– 90° horizontal × 50° vertical
Vertical and horizontal orientation
Screw-tight, cloth-backed perforated steel grille
Integrated ergonomic handle made from recycled ABS
Pole-mount cover maintains clean lines
8Ω nominal impedance
Two NL4 connectors
Flexible mounting options via M8 inserts
85% Post Consumer Recycled ABS Plastic
FSC Certified Cardboard Packaging
Biodegradable Box Sealing tape
Product Specifications
Type: Passive two-way loudspeaker
Frequency Response: 51 Hz – 17 kHz ± 3 dB, -10 db @ 41 Hz
Driver (LF): 15” (380 mm) with 4” (100 mm) voice coil, ferrite motor system
Driver (HF): 1.4" (35 mm) exit compression driver with 3" (75 mm) voice coil
Rated Power: 800 W AES, 3200 W peak
Required Electronics: Processor and amplifier, or a combined amplifier-processor unit
Recommended Electronics: DX0.4, DX0.6 or DX4.0 system processor and VIA amplifier, or iKON amplifier-processor
Sensitivity: 98 dB
Maximum SPL: 127 dB continuous, 133 dB peak, 139 dB peak with crest factor 4
Nominal Impedance: 8 ohm
Dispersion: Dispersion: 70°–90° (horizontal) × 50° (vertical) User-rotatable Differential Dispersion horn
Crossover: 1.5 kHz passive
Enclosure: Symmetrical multi-angle plywood
Finish: Black textured paint
Protective Grille: Black perforated steel grille with scrim cloth backing
Connectors: 2 x NL4 connector
Pin Connections (Input): 1+/1–
Pin Connections (Link): 1+/1– to 1+/1– and 2+/2– to 2+/2–
Fittings:
18 x M8 inserts, 6 x M8 inserts for wall bracket
2 x pocket handle made from recycled ABS
Pole-mount socket with removable cover
Dimensions (WxHxD): 420 mm x 695 mm x 400 mm (16.5 in x 27.4 in x 15.8 in)
Weight: 33.8 kg (74.6 lbs)
Accessories (Optional):
Wall bracket WB15
M8 eye bolt HTKCT05, yoke, transit cover
