Description

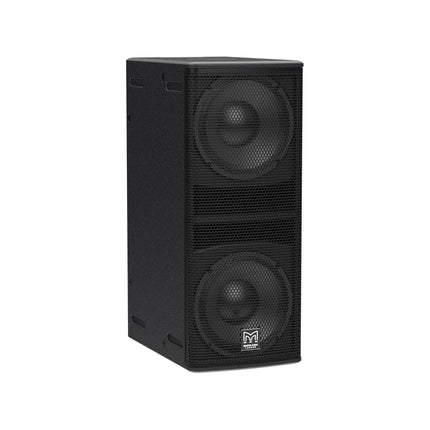

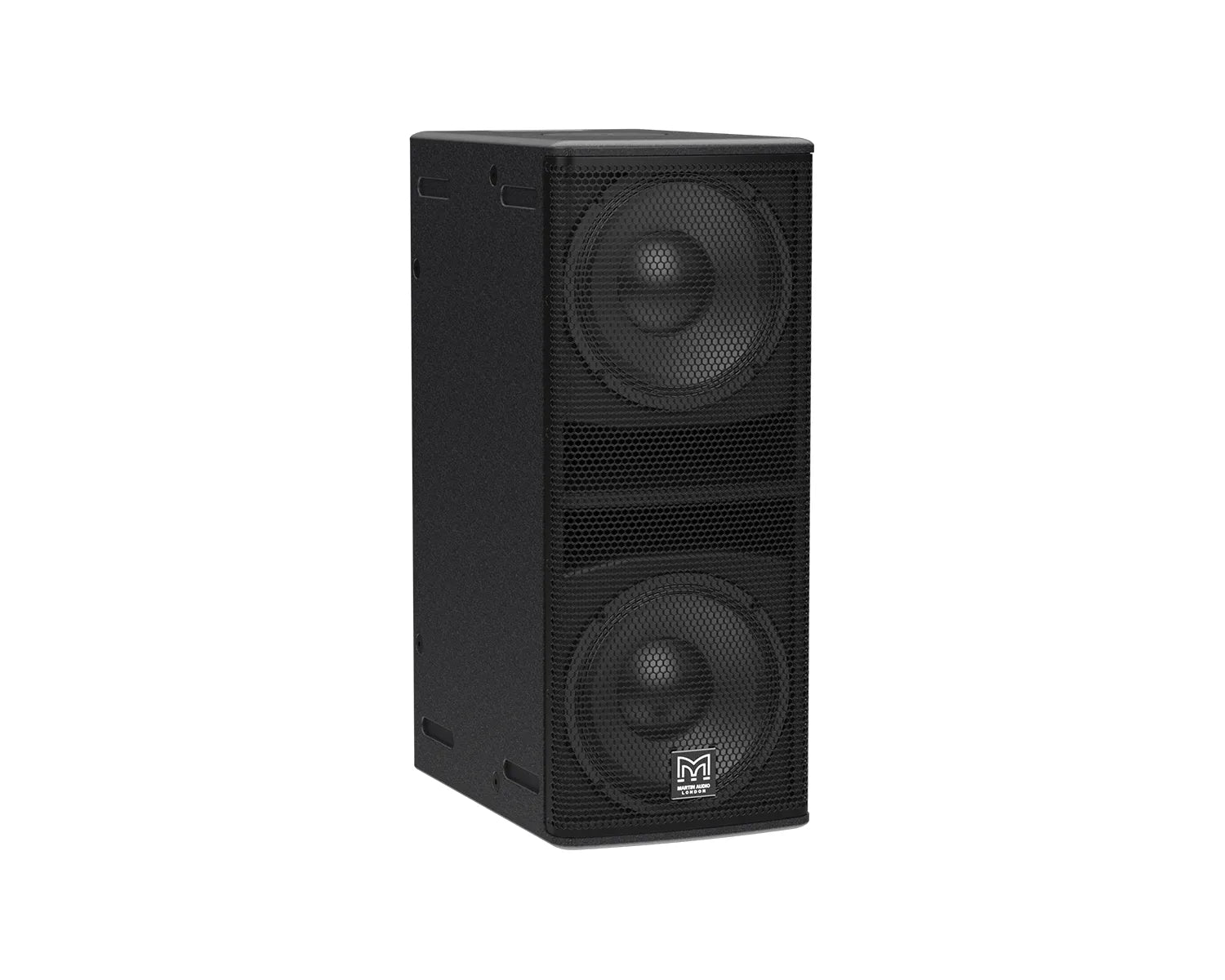

Blackline Q210 is a slimline, dual-driver subwoofer engineered for applications where a visually discreet solution is required. Designed to complement BlacklineQ Series full-range loudspeakers, it extends the system’s low-frequency response down to 49 Hz, delivering tight, punchy low frequency impact with a peak SPL of 124dB (130dB for crest factor 4).Blackline Q210 features dual 10” (250mm) drivers with 2” (50mm) voice coils, housed in a robust plywood enclosure. A perforated, impact-resistant steel grille protects the drivers, while slot ports ensure efficient airflow and reduced turbulence for clean, controlled bass performance.
Finished in durable black paint as standard, Q210 is also available in white to support visually sensitive installations, particularly when paired with BlacklineQ column loudspeakers in white.
Q210 can be deployed singly, stacked or flown using integral M8 inserts. It includes an M20 1.4” (35 mm) pole-mount fitting for seamless integration with other loudspeakers in BlacklineQ series. There are two signal link outputs—one positioned at the top and one at the bottom of the enclosure when oriented vertically. This allows for flexible, discreet and tidy signal connections to other BlacklineQ loudspeakers, regardless of setup.
Two ergonomic side handles provide ease of handling, while rubber feet on the base align with top-surface recesses to ensure stable stacking. Q210 is ideal for applications requiring compact, high-performance low-frequency reinforcement.
When used with BlacklineQ Series full-range systems, crossover and EQ functions can be managed via the DX0.4, DX0.6, or DX4.0 system controllers, or the onboard DSP of an iKON amplifier.
Product Features
Slimline direct-radiator subwoofer
2 x 10” (250mm) drivers with 2” (50mm) voice coils
Peak SPL of 124dB (130dB for crest factor 4)
Durable plywood enclosure
Slot ports for reduced air noise
Perforated steel grille
M20 / 1.4” (35mm) pole-mount socket
4Ω nominal impedance
Integral ergonomic handles
Feet for vertical or horizontal operation
Rebate recesses for stable horizontal stacking
M8 flying inserts
Three NL4 connectors
85% Post Consumer Recycled ABS Plastic
FSC Certified Cardboard Packaging
Biodegradable Box Sealing tape
Product Specifications
Type: Slimline, dual 10" driver subwoofer
Frequency Response: 49 Hz – 100 Hz ± 3 dB, -10 db @ 41 Hz
Driver: 10” (250 mm) with 2” (50 mm) long excursion voice coil, ferrite motor system
Rated Power: 400 W AES, 1600 W peak
Required Electronics: Processor and amplifier, or a combined amplifier-processor unit
Recommended Electronics: DX0.4, DX0.6 or DX4.0 system processor and VIA amplifier, or iKON amplifier-processor
Sensitivity: 101 dB
Maximum SPL: 127 dB continuous, 133 dB peak, 139 dB peak with crest factor 4
Nominal Impedance: 4 ohm
Dispersion: Omnidirectional
Crossover: N/A
Enclosure: Durable plywood
Finish: Black or white textured paint
Protective Grille: Black or white perforated steel grille with scrim cloth backing
Connectors: 3 x NL4 connectors: 2 at bottom rear (input and link A), 1 at top rear (link B)
Pin Connections (Input): 1+/1–
Pin Connections (Link A): 1+/1– to 1+/1– and 2+/2– to 2+/2–
Pin Connections (Link B): 1+/1– on input to 2+/2– on link B
Fittings:
16 x M8 inserts: 2 on top, 2 on bottom, 4 on left, 4 on right, 4 on rear
2 x bar handles with recycled ABS pockets: 1 at rear top, 1 at rear bottom
M20 top-mounted thread plate for pole mounting
4 x skids on base
4 x skids on right side, 4 x recesses on left side: for stacking horizontally
Dimensions (WxHxD): 296 mm x 718 mm x 462 mm (11.7 in x 28.3 in x 18.2 in)
Weight: 22.4 kg (49.4 lbs)
Accessories (Optional):
M8 eye bolt HTKCT05
Wind-up telescopic pole ASF20071
Transit cover
