Description

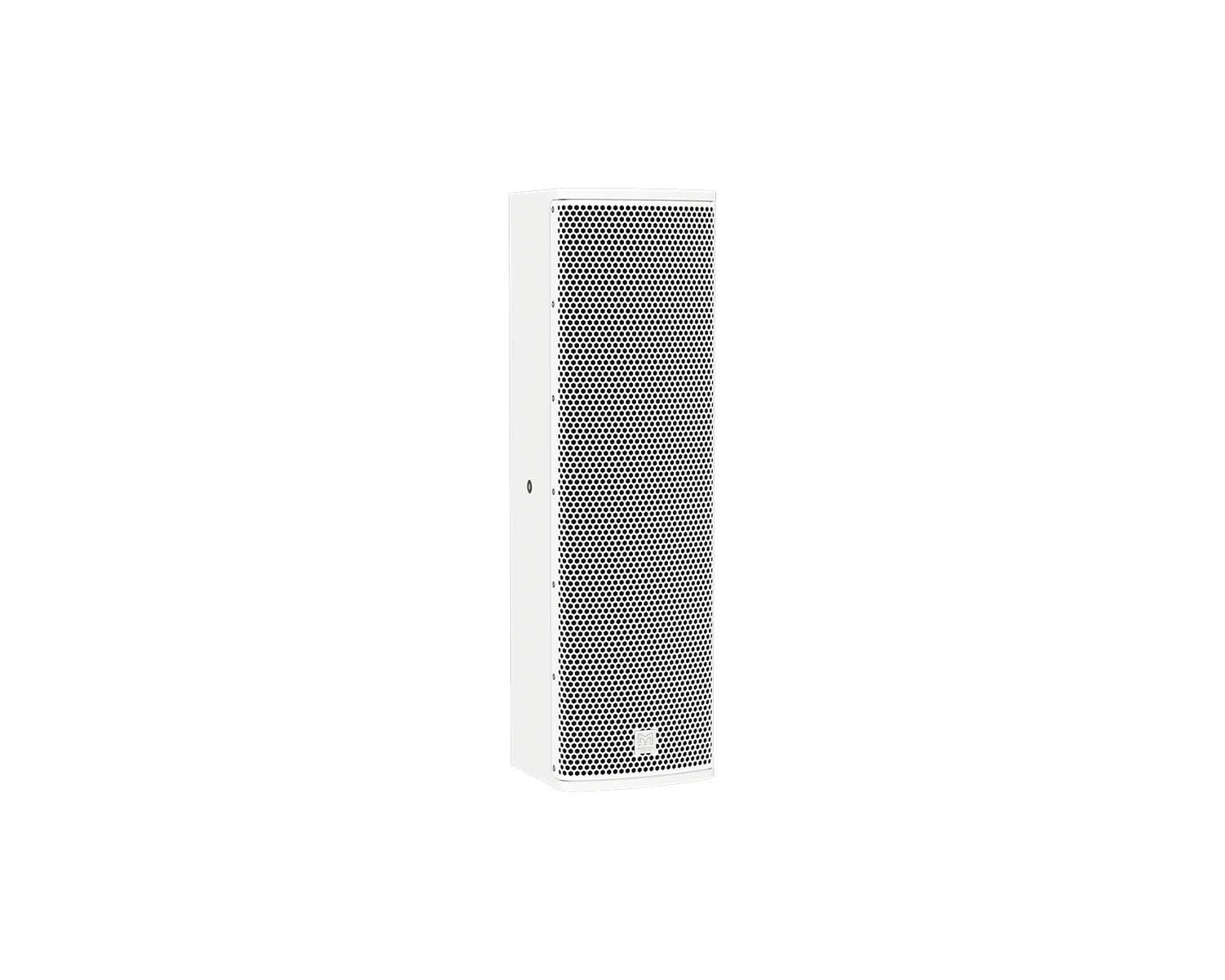

Designed for venues where clarity and control are paramount, Blackline Q26 is a compact column loudspeaker that delivers a peak SPL of 125dB (131dB with crest factor 4) with precise coverage from a discreet footprint.
It can operate as a stand-alone system or be supplemented by Blackline Q210 subwoofer, making it equally suited to performance venues, corporate events and worship spaces.
Q26 features a dual 6” (150mm) LF driver with a 1.5” (38mm) voice coil and a 1” (25mm) exit HF compression driver with a 1” (25mm) dome. A Differential Dispersion horn ensures wide, consistent coverage.
Constructed from durable plywood, Q26 is fitted with a screwtight steel grille and includes M8 inserts for wall brackets, yokes and eyebolt suspension. A pole-mount socket with a removable cover maintains clean lines for installation applications. It is finished in hard-wearing black or white paint.
Engineered for clarity and control, Q44 integrates seamlessly into larger systems or functions as a standalone solution where aesthetics and performance are equally important.
Q26 is recommended to be used with a processor and amplifier, or a combined amplifier-processor unit, such as a DX processor and VIA amplifier, or an iKON combined amplifier and processor.
Product Features
Compact passive two-way system
Lightweight, portable with a discreet design
Peak SPL of 125dB (131dB with crest factor 4)
Differential Dispersion horn
Dispersion: 100°–120° horizontal × 35° vertical
Screw-tight, cloth-backed perforated steel grille
Pole-mount cover maintains clean lines
8Ω nominal impedance
NL4 connector
Flexible mounting options via M8 inserts
Finish: White
85% Post Consumer Recycled ABS Plastic
FSC Certified Cardboard Packaging
Biodegradable Box Sealing tape
Product Specifications
Type: Passive two-way compact column loudspeaker
Frequency Response: 69 Hz – 17 kHz ± 3 dB, -10 db @ 53 Hz
Driver (LF): Dual 6” (150 mm) with 1.5” (38 mm) voice coil, ferrite motor system
Driver (HF): 1" (25 mm) exit compression driver with 1" (25 mm) voice coil,PETP dome
Rated Power: 300 W AES, 1200 W peak
Required Electronics: Processor and amplifier, or a combined amplifier-processor unit
Recommended Electronics: DX0.4, DX0.6 or DX4.0 system processor and VIA amplifier, or iKON amplifier-processor
Sensitivity: 94 dB
Maximum SPL: 119 dB continuous, 125 dB peak, 131 dB peak with crest factor 4
Nominal Impedance: 8 ohm
Dispersion: Dispersion: 100°–120° (horizontal) × 40° (vertical)
Crossover: 2.4 kHz passive
Enclosure: Durable plywood
Finish: Black or white textured paint
Protective Grille: Black or white perforated steel grille with scrim cloth backing
Connectors: 1 x NL4 connector
Pin Connections (Input): 1+/1–
Pin Connections (Link): NA
Fittings:
3 x M8 inserts, 1 x M6 insert, 4 x M6 inserts for wall bracket
1 x pocket handle made from recycled ABS
Pole-mount socket with removable cover
Dimensions (WxHxD): 193 mm x 670 mm x 218 mm (7.6 in x 36.4 in x 8.6 in)
Weight: 9.5 kg (20.9 lbs)
Accessories (Optional):
Wall bracket WB6/8
M8 eye bolt HTKCT05, yoke, transit cover
