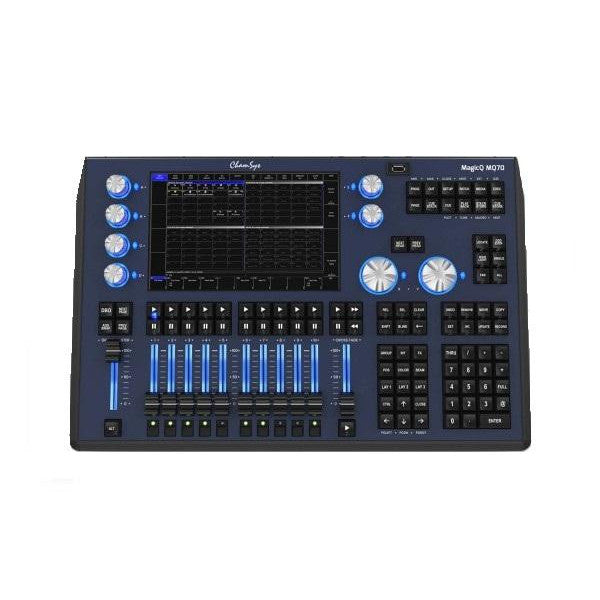

ChamSys MagicQ 24-Universe MQ70 Compact Console

ChamSys MagicQ MQ70 is the latest offering in the Compact Console range of small and lightweight consoles from ChamSys.

The console features a 10.1” Multi touch display, with illuminated encoder and fader tracks, plus only weighs 7kg.

The MQ70 supports 24 universes with an option to expand to 48. The console has 3 network ports enabling ArtNet and sACN direct from the console, whilst also having 4 assignable physical DMX ports. This feature packed console also includes WIFI inbuilt to the console for quick connection to ChamSys MagicQ Remote focus application without the need for external networking hardware.

The MQ70 features an inbuilt UPS which protects both the console and the Ethernet switch in case of power fail. It has low power consumption and does not require a cooling fan - enabling silent operation making it the ideal choice for touring shows, broadcast, theatrical and corporate shows.

With built in MIDI input and output, LTC and audio input for synchronisation, the MagicQ MQ70 provides many options for integration with show control and audio systems.

The MagicQ MQ70 runs the same MagicQ software as other MagicQ consoles, meaning that shows programmed on it can be loaded and ran on any other MagicQ console (within the universe limits).

FEATURES:

• 10.1” Multi touch display
• Illuminated encoder
• Fader tracks
• Supports 24 universes (Option to expand to 48)
• 3 network ports enabling ArtNet and sACN direct from the console
• 4 assignable physical DMX ports
• Built in WIFI
• No need for external networking hardware
• Built in UPS
• Low power consumption and does not require a cooling fan
• Silent operation
• Built in MIDI input and output
• Built in LTC and audio input
• Runs the same MagicQ software as other MagicQ consoles

SPECIFICATION:

• Universes supported: 24 *expandable to 48
• Channels: 12288 *expandable to 24576
• Number of fixtures: Up to 12288 *expandable to 24576
• Cues: 5000
• Groups: 5000
• Display: 10.1”
• Touch Screen: Multi touch
• DMX 5-Pin XLR: 4
• Faders: 12
• Attribute encoders: 8
• Network ports: 3
• Inbuilt WIFI: Yes
• USB ports: 5
• Audio in: Yes
• Audio out: Yes
• MIDI: Notes, TC, Show Control
• LTC in/out: Yes
• Remote input port: Yes
• Illuminated faders: Yes
• Illuminated encoders: Yes
• Wing Support: Yes
• Multi console: Yes
• 1 Dual Colour Dimmable LED
• Console Lamp
• UPS: Yes
• Width: 525mm (20.6”)
• Depth: 350mm (13.7”)
• Height: 60mm (2.3”)
• Weight: 7kg (15.4lb)

Manufacturer: ChamSys
