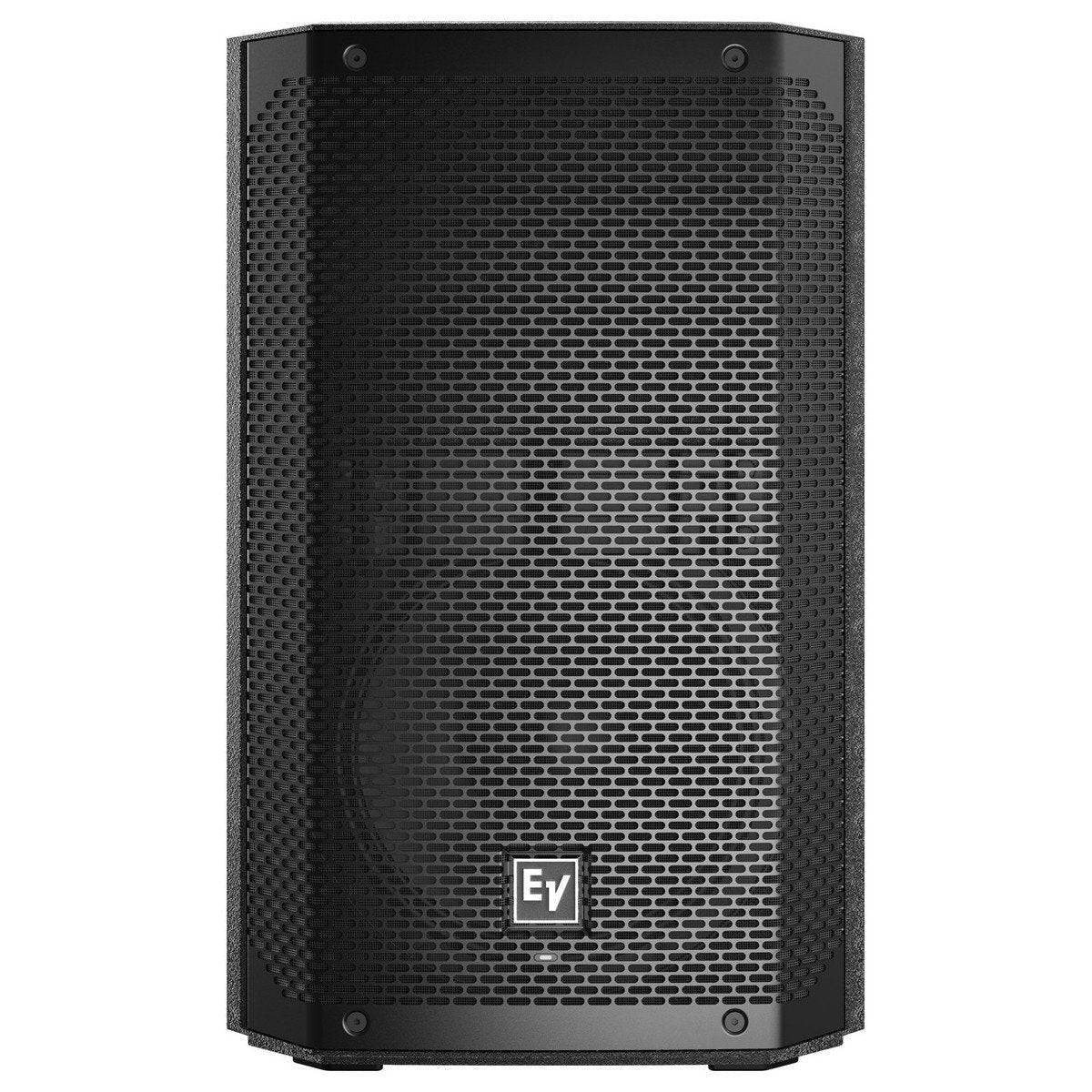

Electro-Voice ELX200-10P Active Speaker

Electro-Voice ELX200-10P Active Speaker

In stock

Regular price $940.00 USD
Regular price Sale price $940.00 USD
Sale Sold out

Prices VAT inclusive. UK delivery free.

The Electro-Voice ELX200-10P 10" Active Speaker features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP, , and delivers up to 130 dB SPL utilising transducers designed and engineered by EV (10-inch EVS-10M woofer coupled with a DH-1C 1-inch titanium compression driver)

The new QuickSmart Mobile wireless control and monitoring application, using Bluetooth® Low Energy (BTLE) technology, allows intuitive system control, configuration and monitoring of up to six powered ELX200 loudspeakers simultaneously.

Receive alerts when your system is being overdriven, and control your system while in front of your speakers, not behind. Bluetooth® is available in select countries.


  • Wirelessly configure, control and monitor up to six ELX200 loudspeakers simultaneously
  • QuickSmartDSP
  • 1 x Stereo RCA Input, 2 x XLR/TRS combo jack and 1 x XLR
  • 1200 W Class-D power amplifier
  • Delivers up to 130 dB peak SPL
  • Ideal for portable and installed applications



  • Colour: Black
  • Connector Type: (1) Stereo RCA Input, (2) XLR/TRS combo jack, and (1) XLR
  • Coverage: (Nominal -6 dB) H90°
  • Coverage: (Nominal -6 dB) V60°
  • Crossover Frequency: 1800Hz
  • Enclosure Material: Polypropylene Composite
  • Family: ELX200
  • Frequency Range (-10 dB): 53 Hz – 20 kHz
  • Frequency Response (-3 dB): 59 Hz – 18 kHz
  • Grille: 18 AWG steel with powdercoat
  • HF Transducer: DH-1C 1-inch titanium compression driver
  • LF Transducer: EVS-10M 254 mm (10 in)
  • Max. SPL/1m (calc): 130dB
  • Power Consumption: 100 - 240 V~, 50 - 60 Hz, 1.8A
  • Power Rating: 1200W
  • Powered or Passive: Powered
  • Speaker Type: Full-Range
  • Suspension: (3) M10 suspension points

Physical & Dimensions

  • Height: 531mm
  • Width: 330mm
  • Woofer Size: 10inch
  • Weight: 13.5kg
  • Shipping Weight: 15.6kg

Manufacturer: Electro-Voice
