Description

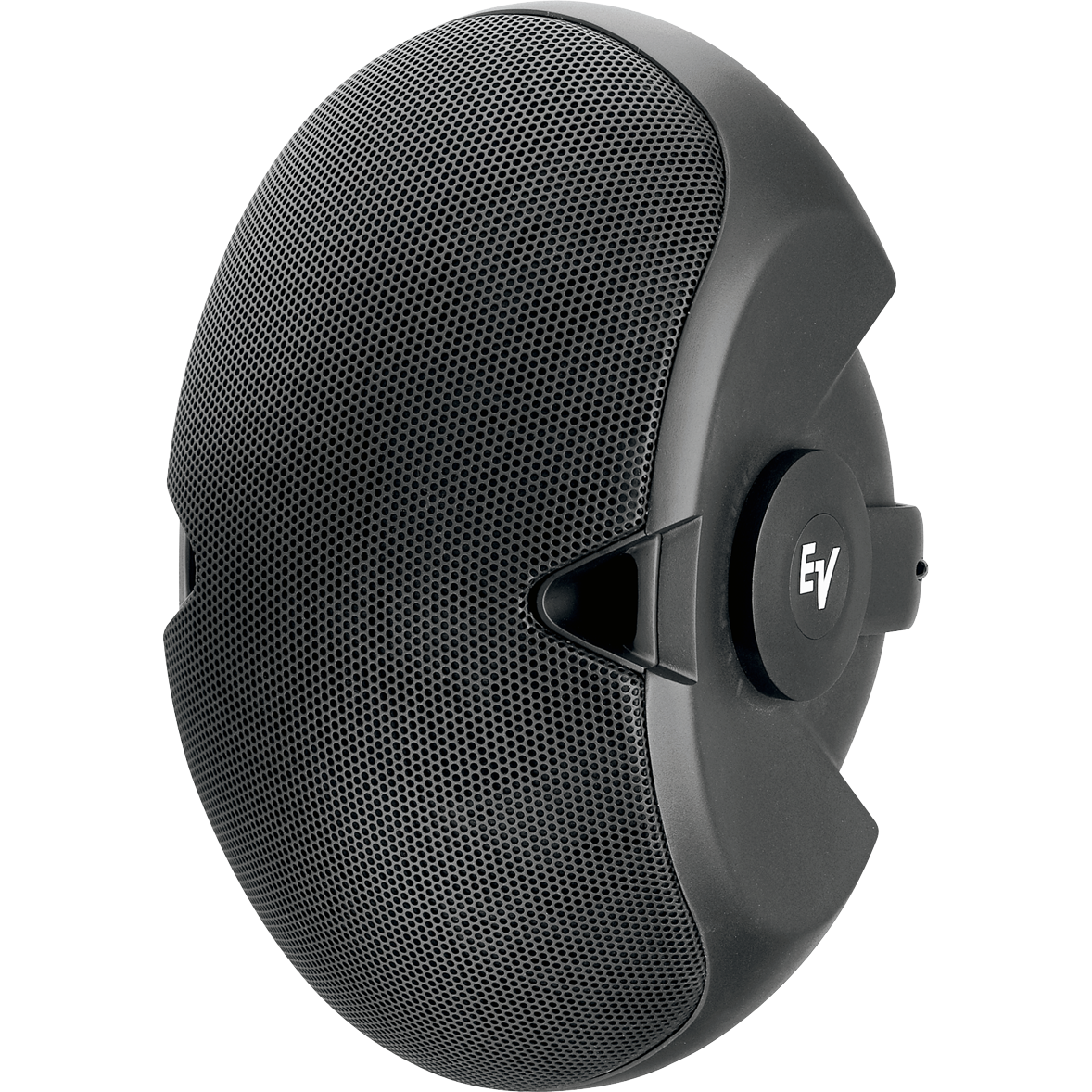

Most compact of the EVID™ Series, the EVID™ 3.2T uses dual 3.5-inch LF drivers with a 0.75-inch titanium direct radiator tweeter to provide high-fidelity, full-range sound over an extremely wide coverage area. The EVID™ 3.2T includes a transformer for 70V or 100V systems.
Main Features
- T version for 70 or 100 V distributed systems
- Vented LF enclosure
- 0.75-inch titanium diaphragm HF driver
- Elliptical weather-resistant ABS enclosure
- Magnetically shielded for video applications
- Strong-Arm Mount for easy, flexible aiming
- In Black
- Priced and Sold Individually
Specifcations
General
- Chassis Size: 88.9mm
- Colour: Black
- Input Connections: Spring Terminal
- Speaker Type: Full-range, Mid-High, Two-Way
- Transformer Taps: 70 V: 5 W, 100 V:10 W
- Frequency Response (-10 dB): 85 - 20000 Hz
- Sensitivity 1 W/1 m: 87dB
- Max. SPL/1m (calc): 112dB
- Coverage (Nominal -6 dB) H: 140 °
- Coverage (Nominal -6 dB) V: 100 °
- System Power Handling (Continuous/Program/Peak): 75//300 Watts
- LF Transducer: Two 3.5-inch
- HF Transducer: 0.75-inch
- Nominal Impedance (Passive): 8Ω
- Minimum Impedance: 6Ω
- Outdoor: Yes
Physical & Dimensions
- Height: 234mm
- Width: 127mm
- Depth: 165mm
- Weight: 1500g
Manufacturer: Electro-Voice
