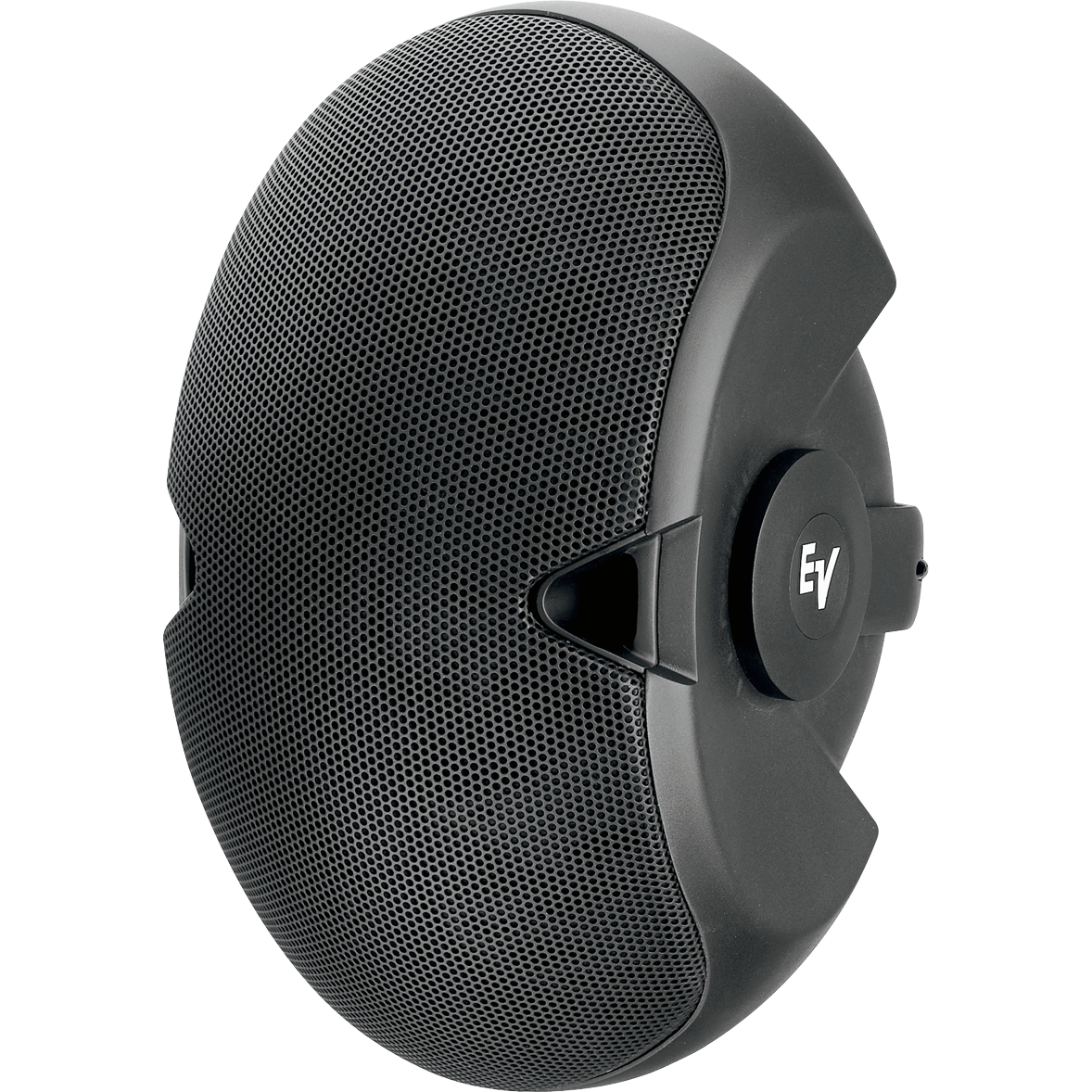

Electro-Voice EVID 4.2T Speaker

The compact EVID™ 4.2T speaker in black delivers very fullrange sound from its dual 4-inch LF drivers and a 1-inch titanium tweeter with waveguide.

It is able to deliver a 110-dB sound level over a wide coverage area. The EVID™ 4.2 T includes a multi-tap transformer for 70V or 100V line distribution systems.

Main Features

• T version for 70 or 100 V distributed systems
• Vented LF enclosure
• 1-inch titanium diaphragm HF driver
• Elliptical weather-resistant ABS enclosure
• Magnetically shielded for video applications
• Strong-Arm Mount for easy, flexible aiming
• In Black
• Priced and Sold Individually

Specifications

General

• Chassis Size: 101.6mm
• Colour: Black
• Input Connections: Spring Terminal
• Speaker Type: Full-range, Mid-High, Two-Way
• Transformer Taps: 70 V: 3.75 W, 70 V/100 V:7.5 W, 15 W,30 W,8 Ω Bypass
• Frequency Response (-10 dB): 65 - 20000 Hz
• Internal Crossover: Yes
• Sensitivity 1 W/1 m: 89 dB
• Max. SPL/1m (calc): 115 dB
• Coverage (Nominal -6 dB) H: 120 °
• Coverage (Nominal -6 dB) V: 80 °
• System Power Handling (Continuous/Program/Peak): 100//400 Watts
• LF Transducer: Two 4-inch
• LF Power Handling: Two 4-inch Watts
• HF Power Handling: 1-inch Watts
• HF Transducer: 1-inch
• Nominal Impedance (Passive): 8Ω
• Minimum Impedance: 6Ω
• Outdoor: Yes

Physical & Dimensions

• Height: 309.89mm
• Width: 175.26mm
• Depth: 215.9mm
• Weight: 3.9kg

Manufacturer: Electro-Voice
