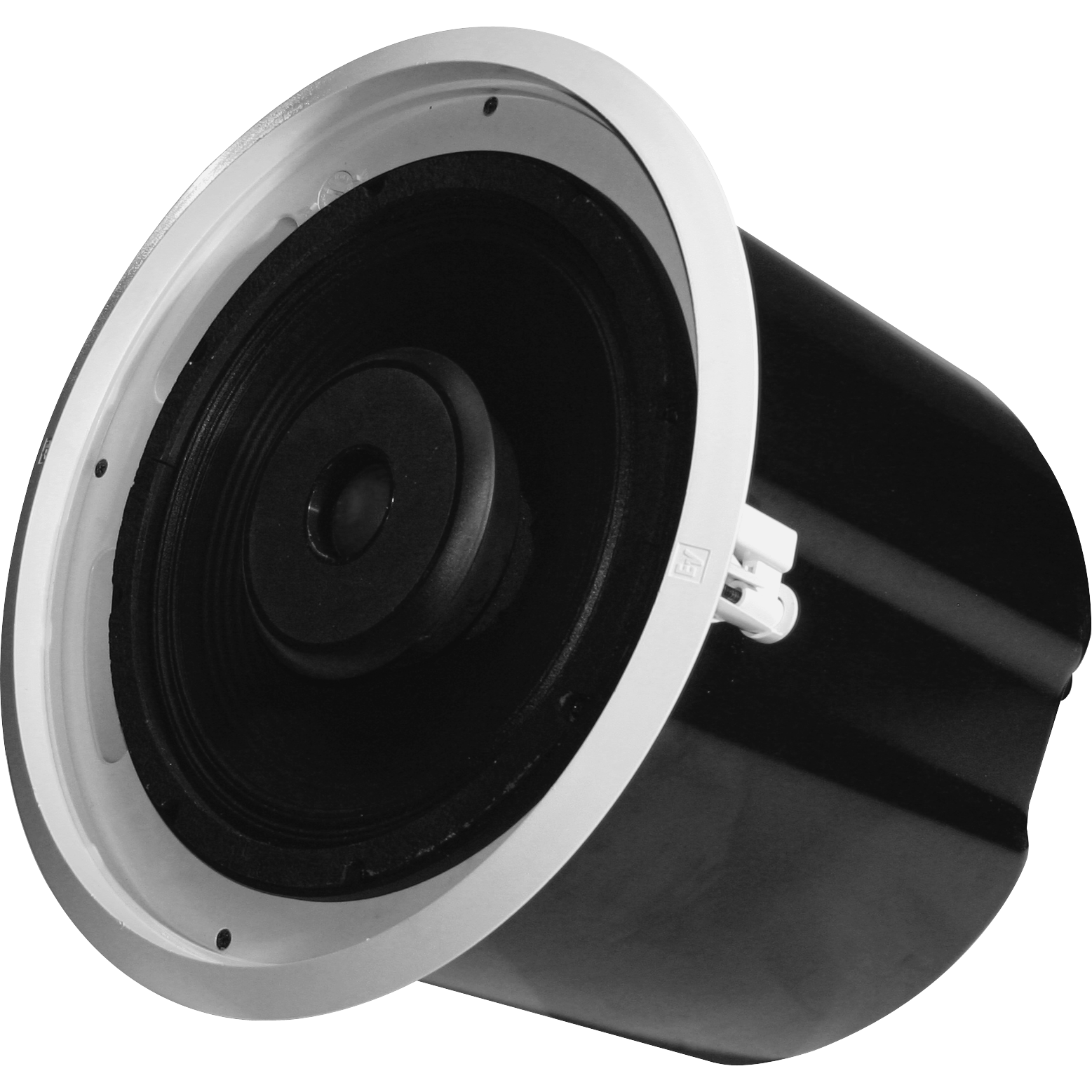

Electro-Voice EVID C12.2 12" Speaker

The Electro-Voice ® EVID C12.2 loudspeaker system is a high efficiency two-way ceiling loudspeaker package for high ceiling applications.

The loudspeaker features the EVID 920- 8B transducer, a 12" coaxial with high power handling and 100 dB sensitivity. The integrated 64W transformer allows for use in 70V/100V applications, and includes automatic saturation compensation.

Main Features

• Full-range power for high ceilings, large spaces
• High sensitivity, high power-handling
• Front-panel mode/wattage selector
• White semi-gloss perforated grille
• Heavy-gauge steel enclosure in black
• Safe, easy installation with included tile bridge and mounting ring
• Priced and Sold Individually

Specifcations

General

• Colour: Black
• Coverage (Nominal -6 dB): 90 average
• Diameter (Max): 414 mm
• Input Formats: 8 Ω / 70V / 100V
• Mounting Systems: Integrated 3-point toggle anchors
• Speaker Type: Ported cabinet, internally damped two-way passive crossover included
• Transformer Taps: 4 (70 V only), 8, 16, 32, 64 W ASC protected
• Frequency Response (-3 dB): 65 - 20,000 Hz
• Sensitivity 1 W/1 m: 100 dB
• Max. SPL/1m (calc): 126 dB Half Space
• System Power Handling (Continuous/Program/Peak): 100 Watts
• LF Transducer: 12-inch EVID 920-8B coax
• HF Transducer: 1-inch (25 mm) coax
• Crossover Frequency: 2000 Hz
• Enclosure Material: Steel enclosure and UL94V-0 rated baffle and bezel
• Grill: Powder-coated steel

Physical & Dimensions

• Height: 333mm
• Weight: 12.3kg

Manufacturer: Electro-Voice
