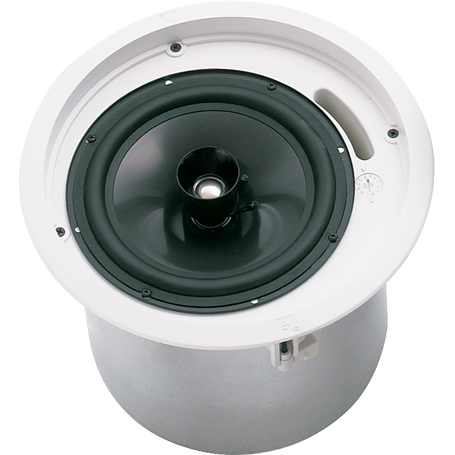

Electro-Voice EVID C8.2LP 8" Speaker

Description

The Electro-Voice ® EVID C8.2LP loudspeaker system is a complete two-way ceiling loudspeaker in a low profile package.

The package consists of a bezel assembly, grille, rear enclosure, 8-inch coax two-way loudspeaker and internal line-matching transformer.

The loudspeaker features a waveguide coupled titanium coated dome tweeter and utilises a 2nd order crossover network at 2.5 kHz, with a comprehensive protection circuit to protect the network, woofer, and tweeter drivers from excessive power levels.

Main Features

  • Low-profile for rich sound in tight spaces
  • Ported enclosure for extended bass response
  • Waveguide-coupled 1-inch titanium-coated tweeter
  • Full-bandwidth overload protection
  • Safe, easy installation with included tile bridge and mounting ring
  • White semi-gloss perforated grille
  • Priced and Sold Individually

Specifications

General

  • Freq. Response (-10 dB): 50 Hz - 20 kH
  • Coverage (Conical): 110°
  • Power Handling: 75 W Cont. / 300 W Peak
  • Sensitivity (SPL 1W/1m): 91 dB
  • Max Calculated SPL: 110 dB Cont. / 116 dB Peak
  • Impedance: 8 Ohms nominal (transformer bypass)
  • Network: Network and transducers protected 12 dB/oct 2.6 kHz
  • LF Transducer: 8 in. (200 mm) Polypropylene cone
  • HF Transducer: 1 in (25 mm) Ti Mylar laminate
  • T W ransformer Taps: 70V: 1.88, 3.75, 7.5, 15 or 30W 100V: 3.75, 7.5, 15 or 30W Bypass: 8 Ohms
  • Connectors: Phoenix type removable, with screw terminals and "loop-thru", accepts 12 ga wire
  • Enclosure Material: Baffle- UL 94V-O rated AB Backcan-Zinc plated steel
  • Grille: Perforated powder coated steel wit safety tether
  • Suport Hardware: Tile bridge, backing plate support cutout template, paint shield

Physical & Dimensions

  • Height: 178mm
  • Diameter: 270mm
  • Weight: 5kg

Manufacturer: Electro-Voice

Related Collections:

Product form

SKU: EV-EVID-C8-2LP
Barcode: 8717332600342

In stock

£160.00 Incl. VAT

    Delivery informationDelivery information

    There is a free standard delivery option for most UK orders as well as a £2.99 option which means your order will arrive faster than normal.

    For standard delivery your order should arrive within 2-5 working days. For the faster option it should be 1-3 working days.

    If you're from Northern Ireland there will be a £5 surcharge for heavier items. If you're buying a light item (under 2kg) please let us know as we may be able to refund your postage after the purchase.

    Buy now pay laterBuy now pay later

    Paypal Pay in 3 lets you spread your purchase interest free over 3 separate payments.

    If you'd like to use Paypal Pay in 3, please perform the following steps.

    1. Add the item to your cart as normal.

    2. Check out with Paypal.

    3. Log into Paypal.

    4. You should see a screen detailing the item costs. Scroll down and you should see an option for "Pay in 3".

    5. Continue the checkout process.

    1/3 of the purchase price will be taken immediately and then the rest over the next 2 months the rest of the payment will be taken.

    Please see more info about the service here.

    As with any sort of buy now pay later, please only use this service for added convenience when making a bigger purchase. It should only be used if you're 100% sure you can make all of the payments on time.

    Description

    The Electro-Voice ® EVID C8.2LP loudspeaker system is a complete two-way ceiling loudspeaker in a low profile package.

    The package consists of a bezel assembly, grille, rear enclosure, 8-inch coax two-way loudspeaker and internal line-matching transformer.

    The loudspeaker features a waveguide coupled titanium coated dome tweeter and utilises a 2nd order crossover network at 2.5 kHz, with a comprehensive protection circuit to protect the network, woofer, and tweeter drivers from excessive power levels.

    Main Features

    • Low-profile for rich sound in tight spaces
    • Ported enclosure for extended bass response
    • Waveguide-coupled 1-inch titanium-coated tweeter
    • Full-bandwidth overload protection
    • Safe, easy installation with included tile bridge and mounting ring
    • White semi-gloss perforated grille
    • Priced and Sold Individually

    Specifications

    General

    • Freq. Response (-10 dB): 50 Hz - 20 kH
    • Coverage (Conical): 110°
    • Power Handling: 75 W Cont. / 300 W Peak
    • Sensitivity (SPL 1W/1m): 91 dB
    • Max Calculated SPL: 110 dB Cont. / 116 dB Peak
    • Impedance: 8 Ohms nominal (transformer bypass)
    • Network: Network and transducers protected 12 dB/oct 2.6 kHz
    • LF Transducer: 8 in. (200 mm) Polypropylene cone
    • HF Transducer: 1 in (25 mm) Ti Mylar laminate
    • T W ransformer Taps: 70V: 1.88, 3.75, 7.5, 15 or 30W 100V: 3.75, 7.5, 15 or 30W Bypass: 8 Ohms
    • Connectors: Phoenix type removable, with screw terminals and "loop-thru", accepts 12 ga wire
    • Enclosure Material: Baffle- UL 94V-O rated AB Backcan-Zinc plated steel
    • Grille: Perforated powder coated steel wit safety tether
    • Suport Hardware: Tile bridge, backing plate support cutout template, paint shield

    Physical & Dimensions

    • Height: 178mm
    • Diameter: 270mm
    • Weight: 5kg

    Manufacturer: Electro-Voice
