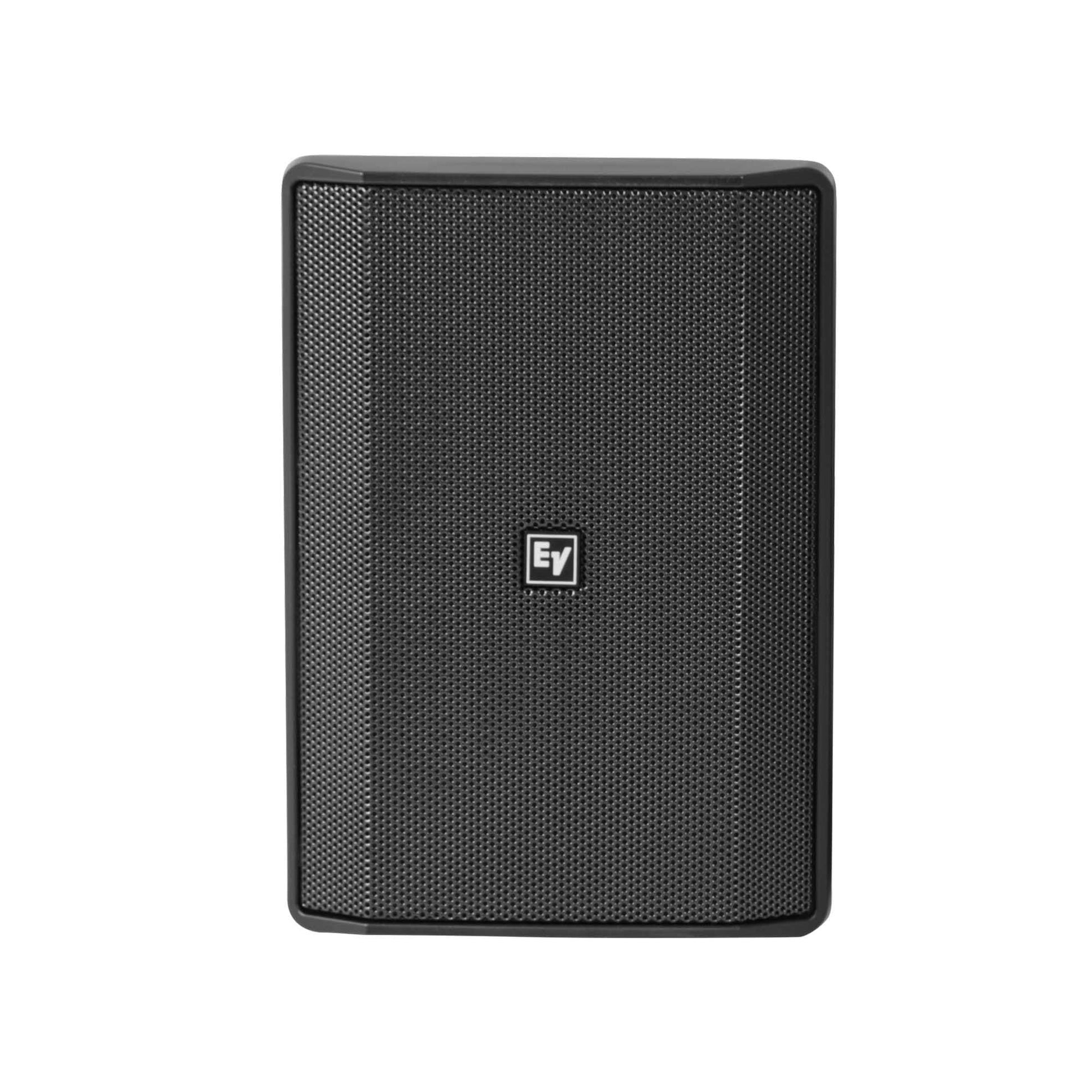

Electro-Voice EVID S5.2XB 5" Speaker

Description

The EVID-S5.2X in black is a high-performance, two-way, full-range, 5.25" (133 mm) surface mount marine grade speaker with excellent wide, uniform dispersion, and outstanding performance.

It is designed for background and foreground music, voice evacuation, paging, and sound reinforcement, and it's ideal for a wide variety of indoor and outdoor applications, such as restaurants, bars, patios, retail, fitness clubs, hospitality, theme parks, leisure venues, and others. With unparalleled ease-of-installation, exceptional weather resistance, modern and delicate look, and its flexible mounting options, the EVID-S5.2X is the perfect solution for a wide variety of surface mount applications.

The EVID-S5.2X has been carefully engineered to resist the toughest weather conditions, without compromising on performance for indoor applications. The full-range speaker is IP65 rated, and its weather-proofing is complemented with exceptional cabinet and grille resistance against sun, salt, moisture, and chlorine.

The EVID-S5.2X includes a versatile U-Bracket that has been designed with the installer in mind, allowing for a wide range of installation applications. The U-Bracket allows for 80 degrees of rotation.

The EVID-S5.2X Utilizes a 60W transformer, that offers a selection of 7.5W (70V only), 15W, 30W or 60W delivered to the speaker system using either 70V or 100V lines, or 8Ω bypass for low impedance lines. Selection is done with a convenient switch on the input panel located on the rear of the speaker.

Main Features

  • EVID S5.2XW surface mount speaker
  • Carefully engineered for the toughest weather conditions
  • Long throw 5.25" (133 mm) woofer housed in a UL 94-5VB fire rated ABS plastic for extended LF performance down to 55 Hz
  • 90 W power handling provides for 108 dB maximum SPL (114 dB Peak)
  • 60 W transformer with 8Ω pass-through
  • Ideal for a wide variety of indoor and outdoor applications
  • IP65 Rated
  • In Black
  • Priced and Sold Individually

Specifications

General

  • Frequency Range (-10 dB): 55 Hz – 20 kkHz
  • Colour: Black
  • Connector Type: Removable locking 4-pin connector (Euroblock) – (2) for connection to additional speakers in a distributed line. Max. wire size 12AWG (2.5 mm)
  • Coverage (Nominal -6 dB) H: 90°
  • Coverage (Nominal -6 dB) V: 90°
  • Environmental Specs: IP-65 (per IEC-60529)
  • Frequency Response (-3 dB): 90 Hz – 20kHz
  • HF Transducer: 0.75 inch (20 mm)
  • LF Transducer: 5.25 inch (122 mm)
  • Max. SPL/1m (calc): 108dB
  • Minimum Impedance: 6Ω
  • Nominal Impedance: 8Ω
  • Recommended High-Pass Frequency: 60Hz
  • Sensitivity 1 W/1 m: 90dB
  • Transformer: 70V/100V (60W)
  • Weatherized: Yes

Physical & Dimensions

  • Height: 255mm
  • Width: 180mm
  • Depth: 148mm
  • Weight: 3.2kg

Manufacturer: Electro-Voice

Related Collections:

Product form

SKU: EV-EVID-S5-2XB
Barcode: 4260451082680

In stock

$313.00 Incl. VAT

    Delivery informationDelivery information

    There is a free standard delivery option for most UK orders as well as a £2.99 option which means your order will arrive faster than normal.

    For standard delivery your order should arrive within 2-5 working days. For the faster option it should be 1-3 working days.

    If you're from Northern Ireland there will be a £5 surcharge for heavier items. If you're buying a light item (under 2kg) please let us know as we may be able to refund your postage after the purchase.

    Buy now pay laterBuy now pay later

    Paypal Pay in 3 lets you spread your purchase interest free over 3 separate payments.

    If you'd like to use Paypal Pay in 3, please perform the following steps.

    1. Add the item to your cart as normal.

    2. Check out with Paypal.

    3. Log into Paypal.

    4. You should see a screen detailing the item costs. Scroll down and you should see an option for "Pay in 3".

    5. Continue the checkout process.

    1/3 of the purchase price will be taken immediately and then the rest over the next 2 months the rest of the payment will be taken.

    Please see more info about the service here.

    As with any sort of buy now pay later, please only use this service for added convenience when making a bigger purchase. It should only be used if you're 100% sure you can make all of the payments on time.

    Description

    The EVID-S5.2X in black is a high-performance, two-way, full-range, 5.25" (133 mm) surface mount marine grade speaker with excellent wide, uniform dispersion, and outstanding performance.

    It is designed for background and foreground music, voice evacuation, paging, and sound reinforcement, and it's ideal for a wide variety of indoor and outdoor applications, such as restaurants, bars, patios, retail, fitness clubs, hospitality, theme parks, leisure venues, and others. With unparalleled ease-of-installation, exceptional weather resistance, modern and delicate look, and its flexible mounting options, the EVID-S5.2X is the perfect solution for a wide variety of surface mount applications.

    The EVID-S5.2X has been carefully engineered to resist the toughest weather conditions, without compromising on performance for indoor applications. The full-range speaker is IP65 rated, and its weather-proofing is complemented with exceptional cabinet and grille resistance against sun, salt, moisture, and chlorine.

    The EVID-S5.2X includes a versatile U-Bracket that has been designed with the installer in mind, allowing for a wide range of installation applications. The U-Bracket allows for 80 degrees of rotation.

    The EVID-S5.2X Utilizes a 60W transformer, that offers a selection of 7.5W (70V only), 15W, 30W or 60W delivered to the speaker system using either 70V or 100V lines, or 8Ω bypass for low impedance lines. Selection is done with a convenient switch on the input panel located on the rear of the speaker.

    Main Features

    • EVID S5.2XW surface mount speaker
    • Carefully engineered for the toughest weather conditions
    • Long throw 5.25" (133 mm) woofer housed in a UL 94-5VB fire rated ABS plastic for extended LF performance down to 55 Hz
    • 90 W power handling provides for 108 dB maximum SPL (114 dB Peak)
    • 60 W transformer with 8Ω pass-through
    • Ideal for a wide variety of indoor and outdoor applications
    • IP65 Rated
    • In Black
    • Priced and Sold Individually

    Specifications

    General

    • Frequency Range (-10 dB): 55 Hz – 20 kkHz
    • Colour: Black
    • Connector Type: Removable locking 4-pin connector (Euroblock) – (2) for connection to additional speakers in a distributed line. Max. wire size 12AWG (2.5 mm)
    • Coverage (Nominal -6 dB) H: 90°
    • Coverage (Nominal -6 dB) V: 90°
    • Environmental Specs: IP-65 (per IEC-60529)
    • Frequency Response (-3 dB): 90 Hz – 20kHz
    • HF Transducer: 0.75 inch (20 mm)
    • LF Transducer: 5.25 inch (122 mm)
    • Max. SPL/1m (calc): 108dB
    • Minimum Impedance: 6Ω
    • Nominal Impedance: 8Ω
    • Recommended High-Pass Frequency: 60Hz
    • Sensitivity 1 W/1 m: 90dB
    • Transformer: 70V/100V (60W)
    • Weatherized: Yes

    Physical & Dimensions

    • Height: 255mm
    • Width: 180mm
    • Depth: 148mm
    • Weight: 3.2kg

    Manufacturer: Electro-Voice
