Description

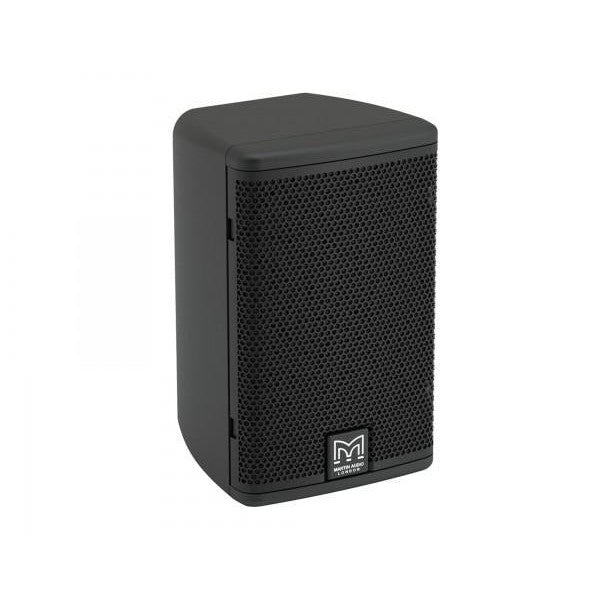

The Adorn A40 is a two-way passive speaker with an elegant design that is perfect for architectural environments that require high-fidelity sound from an unobtrusive, ultra-compact enclosure.
It brings class-leading performance, reliability and value to a wide range of commercial sound applications from retail outlets, bars and restaurants to corporate offices and convention centres.
Comprising a 4” (100mm) LF driver and a 0.75” (19mm) silk-dome HF driver on a 110° x 80° horn, it handles 40W AES, 160W peak and can produce 109dB peak output at 1 metre. It has a smooth frequency response and strong bass reproduction that extends down to 70Hz.
FEATURES:
- Contemporary, unobtrusive design
- High output capability
- High fidelity sound
- Low and high-frequency overload protection
- Vertical or horizontal orientation
- Wide 110° x 80° coverage
- Wall bracket included
- 5-year warranty
- Finished in Black
SPECIFICATION:
General
- Type: Ultra-compact passive two-way system, front ported bass reflex
- Frequency response (4):
- 98hz-17khz ± 3db
- -10db @ 70hz
- Drivers:
- LF: 4” /1” high-temp voice coil, coated paper cone, rubber surround ferrite motor, pressed steel chassis
- HF: 0.75” silk dome, neodymium motor
- Rated power (2): 40w aes, 160w peak
- Recommended amplifier: VIA2004
- Sensitivity(4): 87db/1w/1m
- Maximum spl (9): 109db peak
- Nominal Impedance: 16ω
- Dispersion (-6db): 110° h x 80° v
- Crossover: 3khz passive (lf and hf auto-resetting fuses)
- Recommended high-pass filter: 60hz 24db/oct
- Enclosure: abs, ul 94v-0 rated
- Finish: Black
- Grille: Perforated steel
- Connectors: Push terminals
- Fittings: Wall bracket included
Physical & Dimensions
- Height: 200mm
- Width: 124mm
- Depth: 114mm
- Weight: 1.75kg
Manufacturer: Martin Audio
