Description

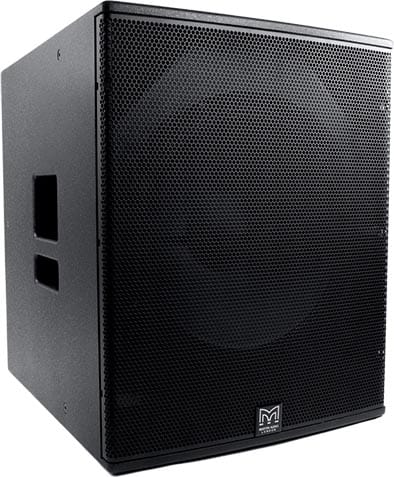

The X118 is a compact, high performance passive subwoofer for use with BlacklineX Series full-range loudspeakers.
It extends the low frequency operating range of the combined system to 42Hz and provides exceptional low frequency impact.
This subwoofer can be used singly, stacked or flown via integral M10 insets and features a long-excursion 18” (460mm)/3” (75 mm) voice coil driver in a compact reflex enclosure. Its four reflex ports have a large frontal area to reduce turbulent air noise at very high levels.
The X118 enclosure is constructed from plywood and finished in black textured paint as standard, with white and RAL colour finishes available to special order. An impact-resistant perforated steel grille protects the driver, and the enclosure has a 35mm pole-mount fitting in the top surface and two side handles for ease of handling. Rubber feet on the base of the enclosure resist movement and align with recesses in the top surface for stable stacking.
When used with BlacklineX Series full-range systems, crossover and EQ functions can be performed by the DX0.5 system controller or by an MA Series [Electronics] amplifier with on-board DSP option.
FEATURES:
- Compact, direct-radiator subwoofer
- 1 x 18” (460mm) driver with 3” (75mm) voice coil
- Large ports for reduced air noise
- Screw-free perforated steel grille
- 35mm pole-mount socket
- 8Ω nominal impedance
- M10 flying inserts
- Finish: Black
SPECIFICATION:
- Type: Compact, direct radiating subwoofer
- Frequency Response (5): 42Hz-150Hz ± 3dB, -10dB @ 38Hz
- Driver: 18” (460mm)/3” (75mm) voice coil, long excursion, ferrite magnet
- Rated Power: 500W AES, 2000W peak
- Recommended Amplifier: MA3.0, MA5.0Q
- Sensitivity: 104dB
- Maximum SPL: 131dB continuous, 137dB peak (half space)
- Nominal Impedance: 8 ohms
- Dispersion (-6dB): Omnidirectional
- Crossover: 80-120Hz active
- Enclosure: Birch/poplar ply
- Finish: Black textured paint
- Protective Grille: Black perforated steel
- Connectors: 3 x NL4 type
- Pin Connections (INPUT): 1+/1-
- Pin Connections (LINK): A: 1+/- to 1+/-, B: 2+/- to 1+/-
Physical & Dimensions
- Fittings: 16 x M10 inserts, pole-mount socket, 2 x bar handles, provision for castors
- Dimensions: (W) 530mm x (H) 669mm x (D) 640mm
- Weight: 33kg
Applications
- Portable sound reinforcement
- Live music clubs
- Bars and restaurants
- Nightclubs
- Corporate AV events and conferences
- Weddings and parties
- Secondary stages at festivals
- HoW, leisure centres and retail outlets
Manufacturer: Martin Audio
