Description

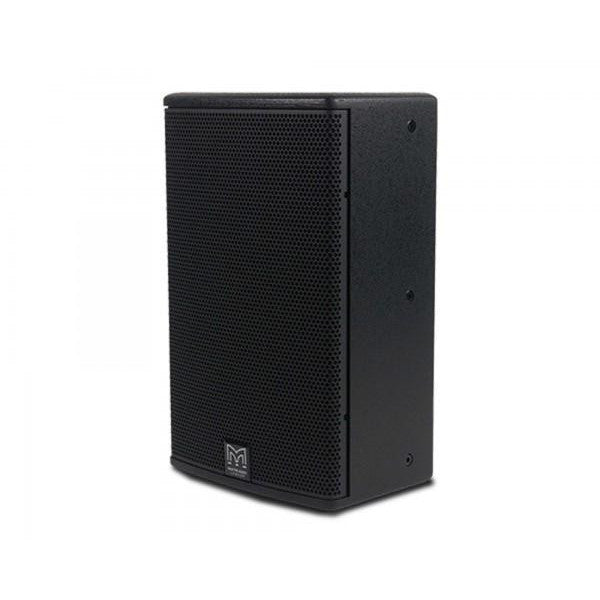

The Blackline X8 is an ultra-compact passive two-way system with an 8” (200mm)/2” (50mm) voice coil LF driver and a 1” (25mm) HF driver mounted on a 90° x 50° horn which can be easily rotated for horizontal or vertical orientation, depending on venue requirements.
Its very small size gives no indication of its high output capability. As a stand-alone loudspeaker, it has a multitude of professional applications — from distributed sound reinforcement, HoW and AV events to front fill / infill and use as a micro stage monitor.
Complemented by a BlacklineX subwoofer, it is the ideal, simple-to-use system for portable applications and installations which call for an unobtrusive system that can deliver pristine sound over short and medium throw distances.
The Blackline X8 is constructed from plywood and fitted with a screw-free steel grille, M8 inserts for wall brackets and eyebolt suspension, plus a pole-mount socket with a removable bung that maintains clean lines in install applications. Finished in black textured paint as standard, the X8 can be supplied in white or any RAL colour to order.
A full-range passive two-way system, the X8 may be used without a controller. However, the EQ and limiter functions of a controller such as the Martin Audio DX0.5 will maximise its capabilities. When used in conjunction with an X115, X118 or X210 subwoofer, crossover and EQ functions can be performed by the DX0.5, or by an MA Series [Electronics] amplifier with on-board DSP option.
FEATURES:
- Ultra-compact passive two-way system
- Symmetrical multi-angle plywood enclosure
- User-rotatable 90° x 50° horn
- Vertical and horizontal orientation
- Screw-free, cloth-backed perforated steel grille
- Integral ergonomic handle
- Pole-mount bung maintains clean lines
- 8Ω nominal impedance
- Twin NL4 connectors
- Flexible mounting options via M8 inserts
SPECIFICATION:
- Type: Ultra-compact, passive two-way system
- Frequency Response: 70Hz-20kHz ± 3dB, -10dB @ 60Hz
- LF: 8” (200mm)/2” (50mm) voice coil, ferrite motor system
- Hf: 1” (25mm) exit/1” (25mm) voice coil, polyimide dome compression driver
- Rated Power: 200W AES, 800W peak
- Recommended Amplifier: MA2.8Q, MA2.0
- Sensitivity: 92dB
- Maximum SPL: 115dB continuous, 121dB peak
- Nominal Impedance: 8 ohms
- Dispersion (-6dB): 90° H x 50° V (user-rotatable)
- Crossover: 2.9kHz passive
- Enclosure: Multi-angle birch/poplar ply
- Finish: Black textured paint
- Protective Grille: Black perforated steel with scrim cloth backing
- Connectors: 2 x NL4 type
- Pin Connections (INPUT): 1+/1-
- Pin Connections (LINK): 1+/- to 1+/-
- Fittings: 13 x M8, 6 x M6 inserts, pole-mount socket, 1 x pocket handle
- Dimensions: (W) 257mm x (H) 422mm x (D) 243mm
- Weight: 8kg
Manufacturer: Martin Audio
