Description

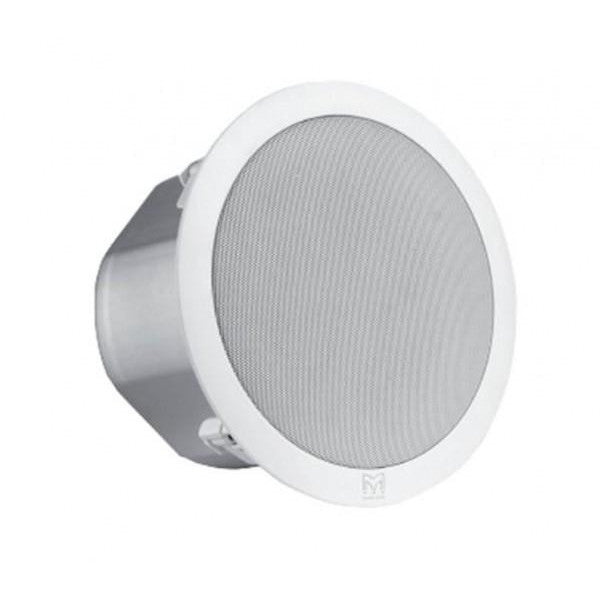

The C6.8T is ideal for flush mounted applications where full frequency performance and wide dispersion are required from a compact, ported enclosure.
It's side-by-side arrangement of the drive units maintains smooth response up to 75° off-axis and makes the C6.8T perfectly suited for use in low ceilings, where its broad coverage means that fewer units will be required to deliver premium sound over the required listening area.
The C6.8T features a 4-point mounting system for ease of installation and a rising clamp plug and socket permit easy pre-wiring with up to 2.5mm conductors.
Product Features
FEATURES:
- Two-way high performance flush mounting ceiling speaker
- 6.5" (165mm) UL94V-0 carbon fibre loaded polypropylene cone bass driver
- Very wide dispersion – 150° conical up to 7kHz
- High & low impedance operation – transformer included
- 106dB continuous max SPL @ 1 metre
- 75W power handling – 16 ohm (40W transformer)
- Polyswitch and thermal fuse protection
- Steel backcan
- UL2043 & UL1480
- In White
SPECIFICATION:
- Type: Ceiling mounted, two-way vented enclosure
- Frequency response: 90Hz-20kHz ± 3dB-10dB @ 70Hz
- Drivers: 6.5" (165mm) UL94V-0 PP bass driver, 0.8" (19mm) dome tweeter
- Rated power: 75W AES, 300W peak
- Sensitivity: 89dB
- Maximum SPL: 106dB continuous, 112dB peak
- Nominal impedance: 16 ohms
- Dispersion (-6dB): 150° conical up to 7kHz
- Crossover: 4kHz passive
- Enclosure: Steel backcan
- Finish: Bezel & grille – white UV resistant, Overpaintable, Backcan – zinc plated
- Protective grille: Perforated steel
- Connectors: Rising clamp plug and socket
- Accessories (included): 40W 70/100V line transformer, Tile rails, C bracket, Paint mask, Cut-out template
- Voltage taps: 100V – 40W, 20W, 10W, 70V – 40W, 20W, 10W, 5W
- Dimensions: (OD) 260mm x (D) 181mm, (OD) 10.2ins x (D) 7.1ins
- Cut-out diameter: 224mm (8.83 ins)
- Weight: 3.5kg (7.7lbs)
Manufacturer: Martin Audio
