Description

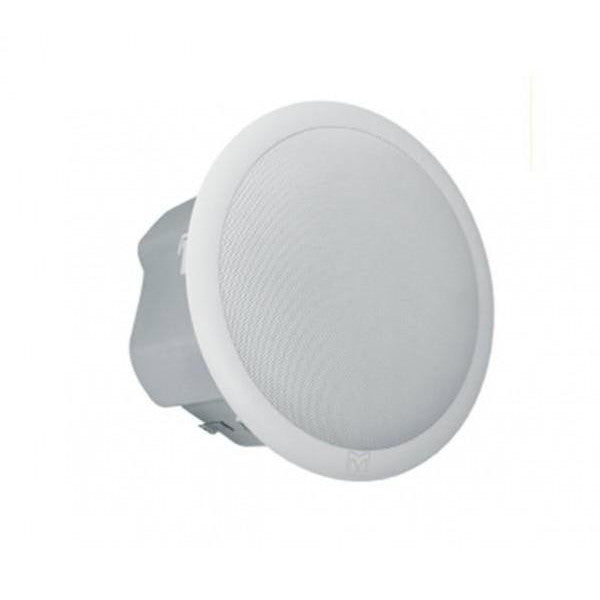

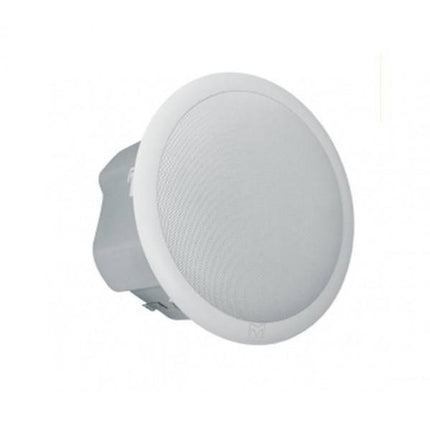

The C8.1T has been specifically designed for higher ceilings where its high SPL capability and controlled 90° dispersion enable it to provide excellent intelligibility in more reverberant rooms.
It features an 8" (200mm) unit with a carbon fibre loaded, polypropylene cone and a 1" (25mm) horn-loaded dome tweeter mounted side-by-side for optimum dispersion and smooth response off-axis.
FEATURES:
- Two-way high performance flush mounting ceiling speaker
- 8" (200mm) UL94V-0 carbon fibre loaded polypropylene cone bass
- Wide dispersion – 90° conical up to 7kHz
- High & low impedance operation – transformer included
- 110dB max SPL @ 1 metre (16 ohm)
- 125 watt power handling (60W through transformer)
- Polyswitch and thermal fuse protected
- Steel backcan
- UL2043 & UL1480
- In White
SPECIFICATION:
General
- Type: Ceiling mounted, two-way vented enclosure
- Frequency Response:
- 80Hz-18kHz ± 3dB
- -10dB @ 50Hz
- Driver
- 8" (200mm) UL94V-0 PP bass driver
- 1" (25mm) dome tweeter
- Rated Power: 125W AES, 500W peak
- Sensitivity: 91dB
- Maximum SPL: 110dB continuous, 116dB peak
- Nominal Impedance: 16Ω
- Dispersion: 90° conical up to 7kHz
-
Crossover: 3kHz passive
-
Enclosure: Steel backcan
-
Finish
- Bezel & grille – white UV resistant (Overpaintable)
- Backcan – zinc plated
-
Protective Grille: Perforated steel
- Connectors: Rising clamp plug and socket
- Voltage Taps
- 100V – 60W, 30W, 15W
- 70V – 60W, 30W, 15W, 7.5W
Physical & Dimensions
- (OD) 354mm x (D) 258mm
- (OD) 13.9ins x (D) 10.2ins
- Cut-Out Diameter: 308mm (12.14 ins)
- Weight: 6.7kg
Manufacturer: Martin Audio
