Description

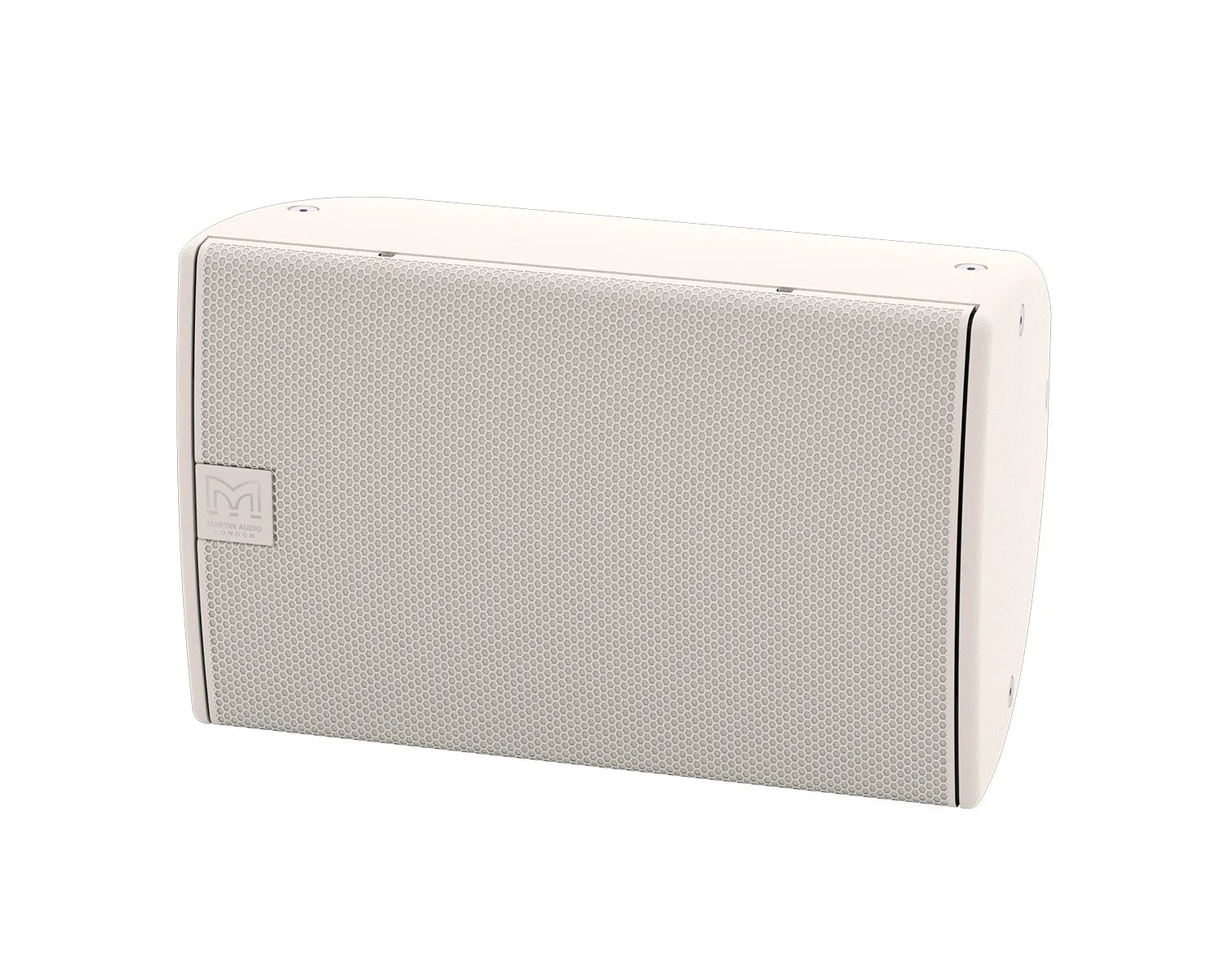

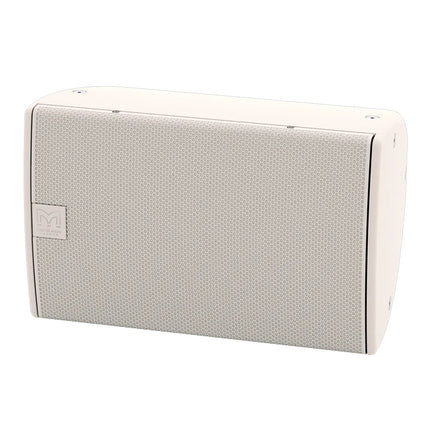

The CDD10W-WR is a weatherised very compact two-way passive loudspeaker system suitable for outdoor applications where it will be subject to changing environmental conditions, but sheltered from direct exposure to the elements.
It utilises a 10” (250mm) LF/1” (25mm) exit HF Coaxial Differential Dispersion driver and features a water and particle resistant grille made from zinc plated mild steel with powder coated finish and is suitable for operating temperatures between -20°C to +70°C and environmentally tested to meet IP54.
The Coaxial Differential Dispersion technology employed in the CDD10W-WR delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns projecting relatively more output to the rear of the audience, while having wide horizontal coverage close-up. Its innovative CDD driver achieves ‘point source’ summation of the LF and HF sections eliminating off-axis variations in frequency response associated with non-coaxial designs. Improving on conventional coaxial designs, which can suffer from high-frequency beaming, the driver features a static waveguide that merges seamlessly with the unique cone shape — maintaining the dispersion pattern out to very high frequencies.
The visually-distinctive composite enclosure can be used in either horizontal (landscape) or vertical (portrait) orientation, with rotation of the driver easily accomplished by removing the screw-free, protective grille. The curved shape of the CDD10W-WR allows it to be surface-mounted close to a wall via an optional wall bracket or suspended from a ceiling by eyebolts or a horizontal yoke option A full suite of weatherised accessories are available and fixings on the loudspeaker are stainless steel.
FEATURES:
- Compact, CDD™ passive two-way system
- Coaxial Differential Dispersion™ technology
- Elegant UPM Formi composite enclosure
- Outdoor operation when sheltered from direct exposure to elements
- Operating temperature -20°C to +70°C
- Environmentally tested to meet IP54
- User-rotatable coaxial drive unit
- Vertical and horizontal mounting options
- Screw-free water and particle resistant grille
- 8Ω nominal impedance
- Integral inserts for eyebolt suspension
- Discreet weatherised mounting accessories
- Finished in White
SPECIFICATION:
- TYPE: Compact, Coaxial Differential Dispersion passive two-way system
- FREQUENCY RESPONSE: 65Hz-20kHz ± 3dB, -10dB @ 55Hz
- RATED POWER: 250W AES, 1000W peak
- Recommended Amplifier: MA2.0
- SENSITIVITY: 96dB
- MAXIMUM SPL: 120dB continuous, 126dB peak
- NOMINAL IMPEDANCE: 8 ohms
- DISPERSION (-6dB): 110˚-75˚ horizontal, 60˚ vertical (user-rotatable)
- CROSSOVER: 2kHz passive
- CONNECTORS: Low profile 20A push-lock, weatherproof input panel cover with cable gland
- PIN CONNECTIONS: Left to right: Input+, Input -, Link -, Link+
Driver
- LF: 10” (250mm)/2.5” (63.5mm) voice coil, long excursion, shared ferrite motor with HF
- HF: 1” (25mm) exit/1.4” (38mm) voice coil, polyimide dome compression driver
Physical & Dimensions
- ENCLOSURE: 28 litre, composite material
- FINISH: Black or white
- PROTECTIVE GRILLE: Zinc plated mild steel with powder coated finish and weatherised backing
- ENVIRONMENTAL: Rated at IP54
- FITTINGS: 6 x M8 inserts for wall bracket, 10 x M8 fly points
- DIMENSIONS: (W) 323mm x (H) 513mm x (D) 310mm | (W) 12.7ins x (H) 20.2ins x (D) 12.2ins
- WEIGHT: 15.5kg (34.2lbs)
Optional Accessories
- CDDWB10/12W wall bracket white
- CDDYA10W yoke assembly white
Manufacturer: Martin Audio
