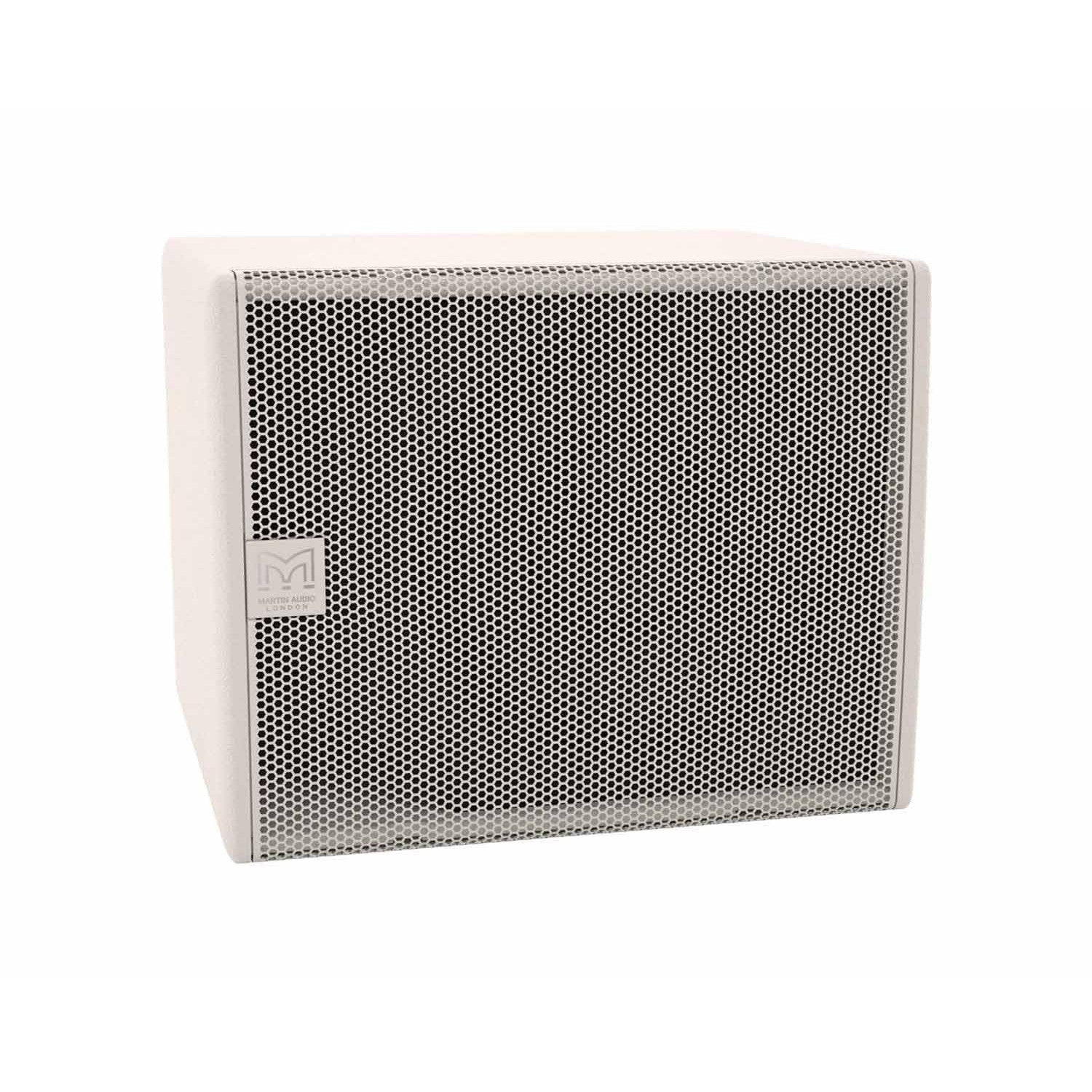

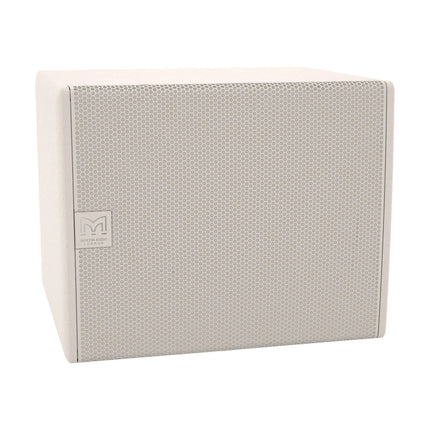

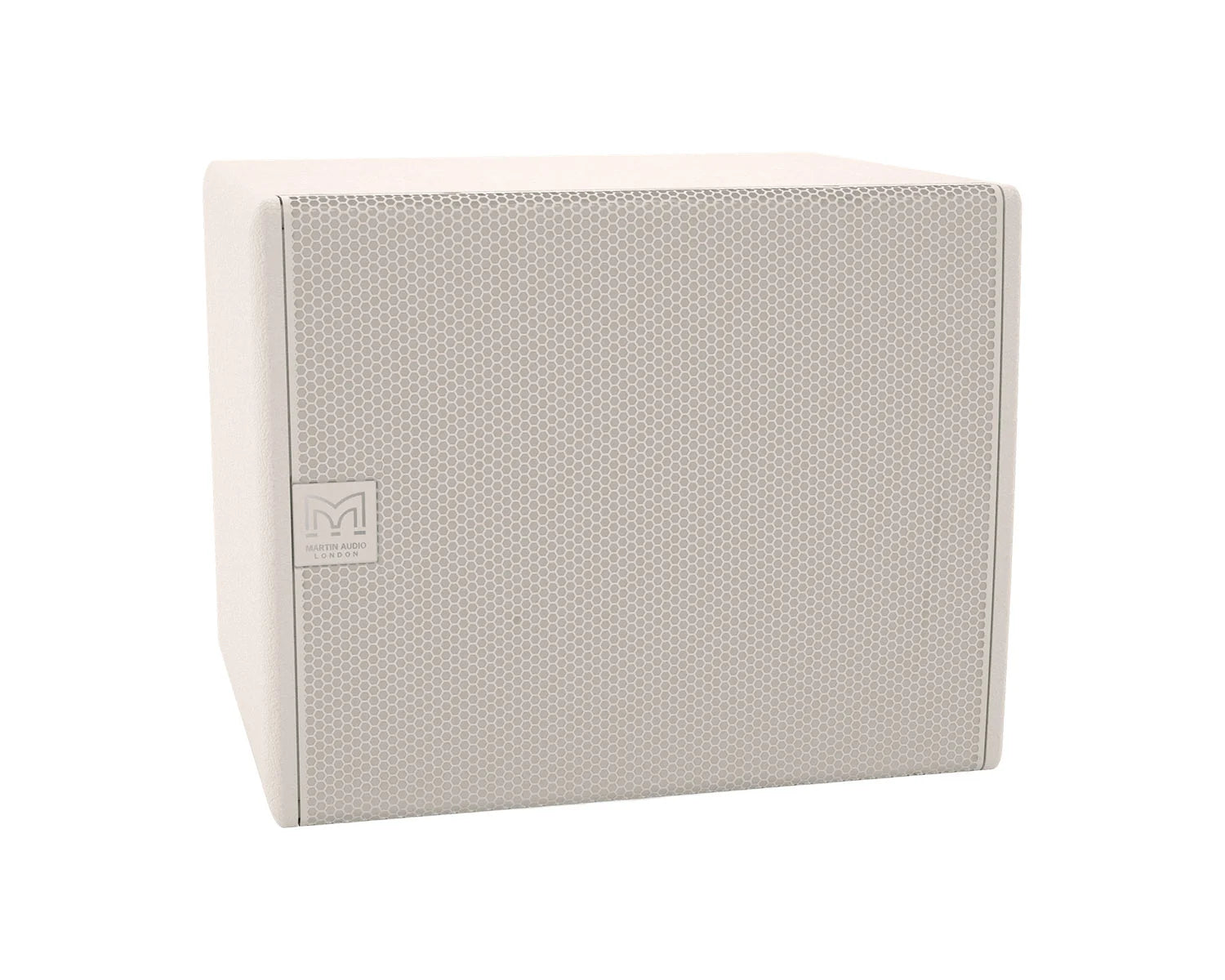

Martin Audio SX112-W 12" Subwoofer

The SX112-W is an ultra-compact direct radiating sub-bass system designed to extend the bandwidth and increase the headroom of full-range loudspeaker models.

It features a very efficient 12" (300mm) long-throw bass driver with a high power 3" (75mm) voice coil and generously-sized reflex ports for low noise, high power operation.

With a response of 48Hz-150Hz ± 3dB, the ultra-compact size of the SX112 makes it an ideal partner for ADORN or CDD Series systems where space is at a premium or where the subwoofers need to be hidden.

The enclosure is constructed from plywood and has an impact-resistant finish, while the driver is protected by a rigid perforated steel grille, which is pre-curved to withstand physical damage.

FEATURES:

• Ultra-Compact, single driver, direct radiating subwoofer
• 12” (300mm) driver with 3” (75mm) voice coil
• Water resistant cone
• Large ports for reduced air noise
• Perforated steel grille
• In White

• Integrated flying points

Practical Applications

• Live Music Clubs and Bars
• Nightclubs
• Bars and Restaurants
• Museums and AV Spaces
• Convention Centres
• Hotels
• Retail Outlets
• Leisure Centres
• Houses of Worship

SPECIFICATION:

• TYPE: Compact, single driver, direct radiating subwoofer
• FREQUENCY RESPONSE: 48Hz-150Hz ± 3dB -10dB @ 35Hz
• DRIVER: 12” (300mm)/3” (75mm) voice coil, long excursion, ferrite magnet, waterproof cone
• RATED POWER: 400W AES, 1600W peak
• SENSITIVITY: 100dB
• MAXIMUM SPL: 126dB continuous, 132dB peak (half space)
• NOMINAL IMPEDANCE: 8Ω
• DISPERSION (-6DB): Omnidirectional
• CROSSOVER: 80-120Hz active
• ENCLOSURE: 52 litre, Plywood
• FINISH: Black or white textured paint
• PROTECTIVE GRILLE: Black or white perforated steel
• CONNECTORS: 2 x NL4
• PIN CONNECTIONS: Left to right: Input+, Input -, Link -, Link+
• FITTINGS: 12 x M10 inserts
• DIMENSIONS:
  • (W) 487mm x (H) 390mm x (D) 410mm
  • (W) 19.2ins x (H) 15.4ins x (D) 16.1ins
• WEIGHT: 21.5kg (47.3lbs)

Manufacturer: Martin Audio
