Sennheiser EW 300 G4-ME2-RC-GBw Lapel CH38

Description

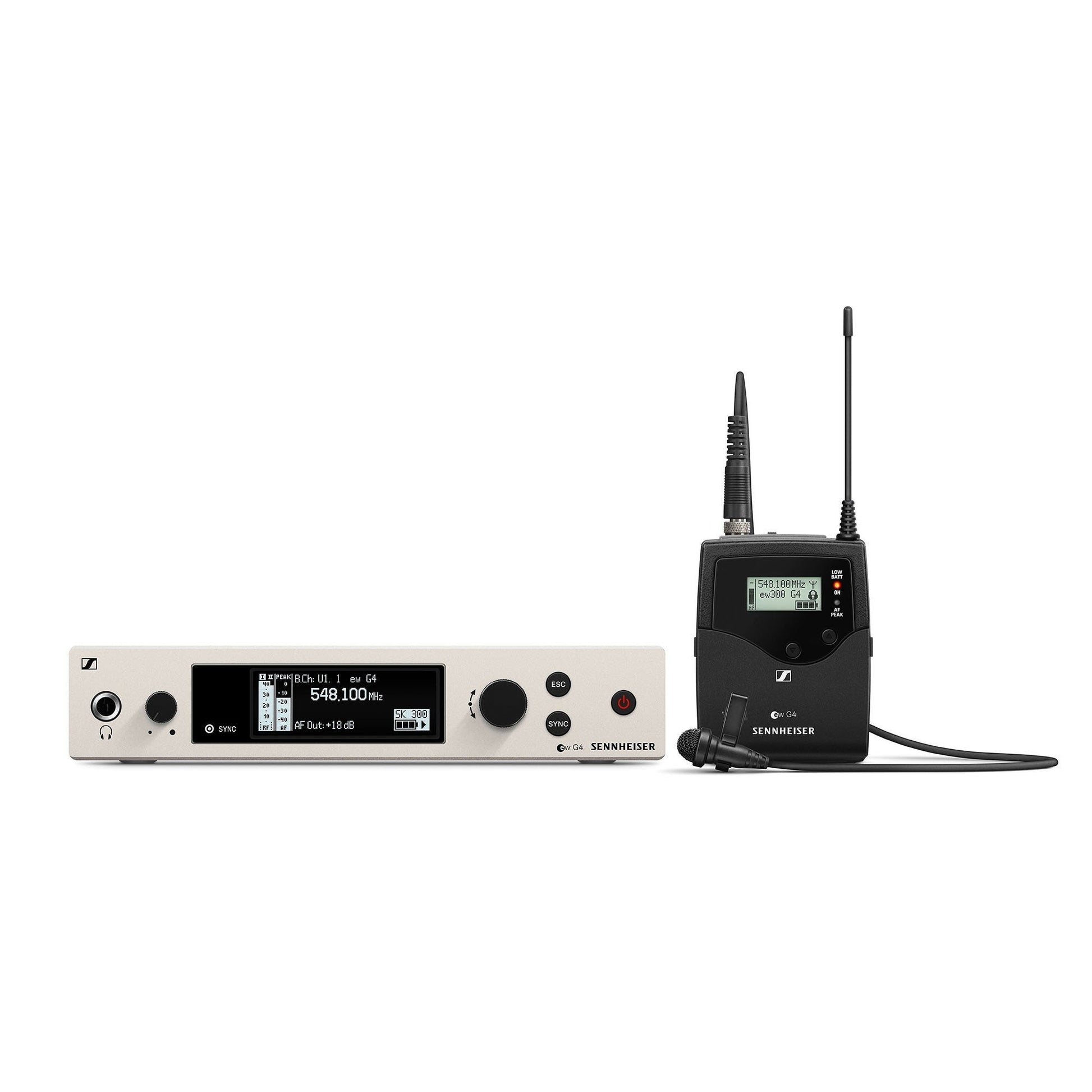

The Sennheiser EW300 G4-ME2-RC-GBw Wireless Lavalier System with ME2II Omni Lapel Microphone on channel 38.

Uses the power of an increased switching bandwidth of up to 88 MHz.

New frequency ranges allow to operate multi-channel setups with dozens of channels while securing reliable operation - despite digital dividend.

This powerful clip-on mic package is easy to operate, reliable while transmitting and does the job.

The 300 series lapel mic set ensures hands-free operation even during the longest congress or lecture. Remote mute switch available for the bodypack transmitter.

Features:

  • Easy to use, fast setup time
  • Integrated network port allows control, monitoring and setup via Sennheiser Control Cockpit and WSM Software
  • Broad range of products and existing accessories (such as microphones) allows usage in any kind of environment
  • Up to 88 MHz bandwidth, up to 32 channels
  • Increased RF output power (10/30/50 mW)
  • Transmission Range: up to 100 meters / 330 feet
  • Compatible with wireless speaker system LSP 500 PRO
  • RC (remote control) switch available for the bodypack transmitter

Specifications:

EM 300-500 G4 - General

  • Modulation: Wideband FM
  • Frequency ranges:
    • Aw+: 470 - 558 MHz
    • AS: 520 - 558 MHz
    • Gw1: 558 - 608 MHz
    • Gw: 558 - 626 MHz
    • GBw: 606 - 678 MHz
    • Bw: 526 - 698 MHz
    • Cw: 718 - 790 MHz
    • Dw: 790 - 865 MHz
    • JB: 806 - 810 MHz
    • K+: 925 - 937.5 MHz
  • Receiving frequencies
    • Max. 2880 receiving frequencies, adjustable in 25  kHz steps
    • 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
    • 6 frequency banks with up to 32 programmable channels
  • Switching: bandwidth up to 72 MHz
  • Nominal/peak deviation: ±24 kHz / ±48 kHz
  • Receiver principle: True diversity
  • Sensitivity (with HDX, peak deviation): < 2.5 μV for 52 dBA eff S/N
  • Adjacent channel selection: Typically ≥ 75 dB
  • Intermodulation attenuation: Typically ≥ 70 dB
  • Blocking: ≥ 75 dB
  • Squelch: 5 to 25 dBμV in steps of 2 dB
  • Pilot tone squelch: Can be switched off
  • Antenna inputs: 2 BNC sockets
  • Compander system: Sennheiser HDX
  • EQ presets (switchable, act on line and monitor outputs):
    • Preset 1: Flat
    • Preset 2: Low Cut (-3 dB at 180 Hz)
    • Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
    • Preset 4: High Boost (+6 dB at 10 kHz)
  • Signal-to-noise ratio (1 mV, peak deviation): ≥ 115 dBA
  • Total harmonic distortion (THD): ≤ 0.9 %
  • AF output voltage (at peak deviation, 1 kHz AF): 6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu
  • Setting range “AF Out”: 48 dB (3 dB steps)
  • Temperature range: -10 °C to +55 °C
  • Power supply: 12 V DC
  • Current consumption: 350 mA

EM 300-500 G4 - Physical & Dimensions

  • Height: 43mm
  • Width: 212mm
  • Depth: 202mm
  • Weight: 980g

SK 300 G4 - General

  • Modulation: Wideband FM
  • Frequency ranges:
    • Aw+: 470 - 558 MHz
    • AS: 520 - 558 MHz
    • Gw1: 558 - 608 MHz
    • Gw: 558 - 626 MHz
    • GBw: 606 - 678 MHz
    • Bw: 526 - 698 MHz
    • Cw: 718 - 790 MHz
    • Dw: 790 - 865 MHz
    • JB: 806 - 810 MHz
    • K+: 925 - 937.5 MHz
  • Transmission frequencies
    • Max. 2880 frequencies, adjustable in 25 kHz steps
    • 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
    • 6 frequency banks with up to 32 programmable channels
  • Switching bandwidth: up to 72 MHz
  • Nominal/peak deviation:  ±24 kHz / ±48 kHz
  • Frequency stability: ≤ ±15 ppm
  • RF output power at 50 Ω switchable:
    • Low: typ. 10 mW
    • Standard: typ. 30 mW
    • High: typ. 50 mW
  • Pilot tone squelch: Can be switched off
  • Compander system: Sennheiser HDX
  • AF frequency response
  • Mic: 80 – 18,000 Hz
  • Line: 25 – 18,000 Hz
  • Signal-to-noise ratio (1 mV, peak deviation): ≥ 115 dBA
  • Total harmonic distortion (THD): ≤ 0.9 %
  • Max. microphone/line input voltage: 3 Veff
  • Microphone/line input impedance: 40 kΩ, unbalanced / 1 MΩ
  • Input capacitance: Switchable
  • Setting range for input sensitivity: 60 dB, adjustable in 3 dB steps
  • Temperature range: -10 °C to +55 °C
  • Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
  • Nominal voltage: 3 V battery / 2.4 V rechargeable battery
  • Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 μA
  • Operating time: Typically 8 h

SK 300 G4 - Physical & Dimensions

  • Height: 82mm
  • Width: 64mm
  • Depth: 24mm
  • Weight: 160g

ME2

  • Transducer principle: pre-polarized condensor microphone
  • Pick-up pattern: omni-directional
  • Sensitivity (free field, no load) (1 kHz): 20 mV/Pa
  • Max. SPL at 1 kHz: 130 dB
  • Frequency response: "50 to 18,000 Hz (ME 2-II) 30 to 20,000 Hz (ME 2-US)"
  • "Equivalent noise level A-weighted (DIN IEC 651)": 36 dB
  • Connector: 3.5 mm jack
  • Cable length: approx. 1.60 m
  • Supply voltage: 7.5 V

Part Number: 507672

Manufacturer: Sennheiser
