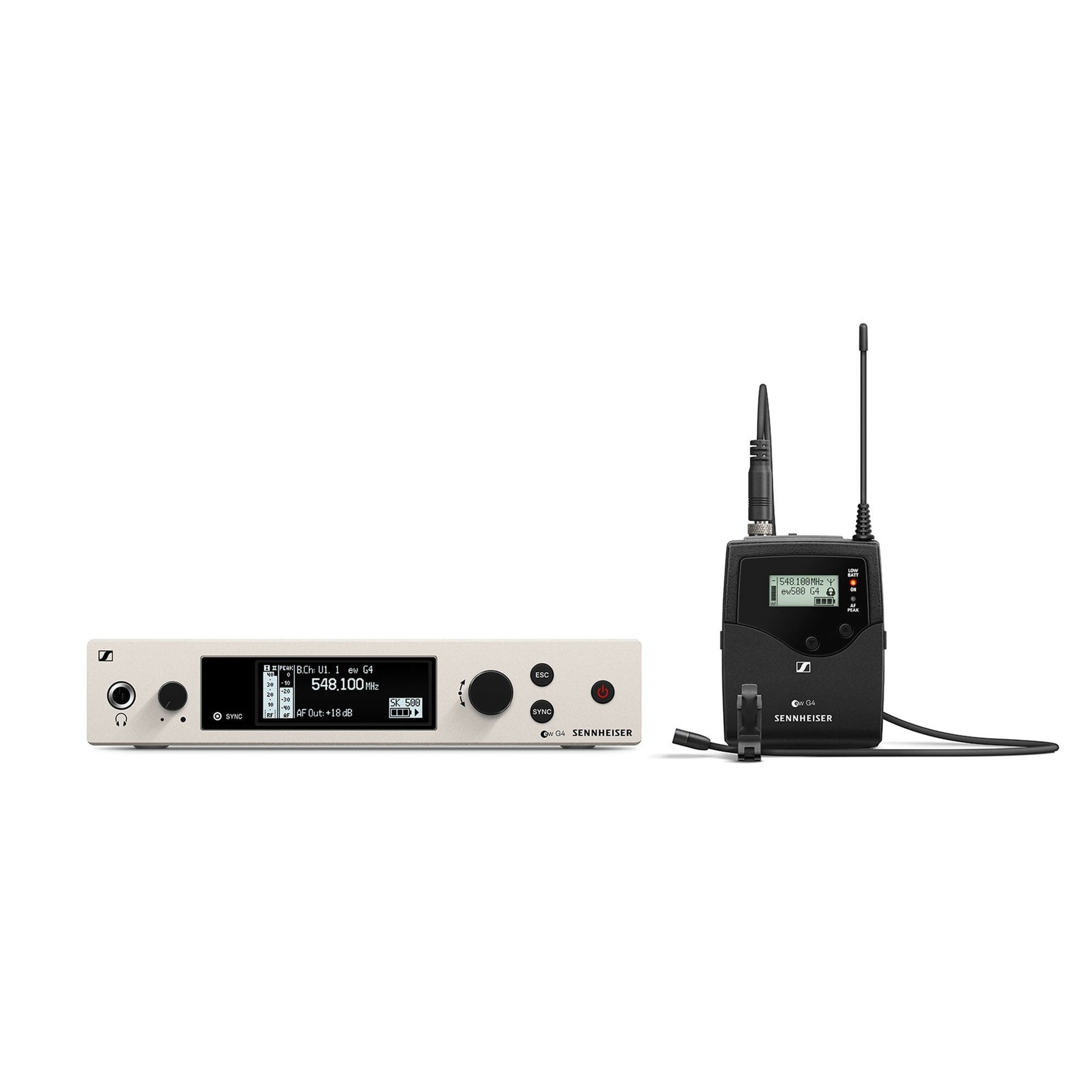

Sennheiser EW 500 G4-MKE2-Gw Lavalier CH38

Description

The Sennheiser EW500 G4-MKE2-Gw Lavalier Set Lapel System with MKE2 Omni Lapel Microphone on channel 38 is a professional wireless lapel system.

Renowned sound engineers rely on ew 500 G4‘s flexibility, especially when handling multi-channel settings on the world‘s music stages. Up to 88 MHz bandwidth, up to 32 channels.

Ethernet connection for Wireless Systems Manager (WSM) control software included for advanced frequency coordination in multi-channel setups.

The professional MKE 2 Gold omni-directional condenser microphone resists the test of time on any big live stage and ensures a high speech intelligibility on any stage, indoors and outdoors.

Features:

  • True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
  • Easy and flexible wireless synchronisation between transmitter and receiver via infrared
  • Up to 32 compatible channels
  • Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
  • Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
  • High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations

Specifications:

EM 300-500 G4 - General

  • Modulation: Wideband FM
  • Frequency ranges:
    • Aw+: 470 - 558 MHz
    • AS: 520 - 558 MHz
    • Gw1: 558 - 608 MHz
    • Gw: 558 - 626 MHz
    • GBw: 606 - 678 MHz
    • Bw: 526 - 698 MHz
    • Cw: 718 - 790 MHz
    • Dw: 790 - 865 MHz
    • JB: 806 - 810 MHz
    • K+: 925 - 937.5 MHz
  • Receiving frequencies
    • Max. 2880 receiving frequencies, adjustable in 25  kHz steps
    • 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
    • 6 frequency banks with up to 32 programmable channels
  • Switching: bandwidth up to 72 MHz
  • Nominal/peak deviation: ±24 kHz / ±48 kHz
  • Receiver principle: True diversity
  • Sensitivity (with HDX, peak deviation): < 2.5 μV for 52 dBA eff S/N
  • Adjacent channel selection: Typically ≥ 75 dB
  • Intermodulation attenuation: Typically ≥ 70 dB
  • Blocking: ≥ 75 dB
  • Squelch: 5 to 25 dBμV in steps of 2 dB
  • Pilot tone squelch: Can be switched off
  • Antenna inputs: 2 BNC sockets
  • Compander system: Sennheiser HDX
  • EQ presets (switchable, act on line and monitor outputs):
    • Preset 1: Flat
    • Preset 2: Low Cut (-3 dB at 180 Hz)
    • Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
    • Preset 4: High Boost (+6 dB at 10 kHz)
  • Signal-to-noise ratio (1 mV, peak deviation): ≥ 115 dBA
  • Total harmonic distortion (THD): ≤ 0.9 %
  • AF output voltage (at peak deviation, 1 kHz AF): 6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu
  • Setting range “AF Out”: 48 dB (3 dB steps)
  • Temperature range: -10 °C to +55 °C
  • Power supply: 12 V DC
  • Current consumption: 350 mA

EM 300-500 G4 - Physical & Dimensions

  • Height: 43mm
  • Width: 212mm
  • Depth: 202mm
  • Weight: 980g

SK 500 G4 - General

  • Modulation: Wideband FM
  • Frequency ranges
    • Aw+: 470 - 558 MHz
    • AS: 520 - 558 MHz
    • Gw1: 558 - 608 MHz
    • Gw: 558 - 626 MHz
    • GBw: 606 - 678 MHz
    • Bw: 526 - 698 MHz
    • Cw: 718 - 790 MHz
    • Dw: 790 - 865 MHz
    • JB: 806 - 810 MHz
    • K+: 925 - 937.5 MHz
  • Transmission frequencies
    • Max. 2880 frequencies, adjustable in 25 kHz steps
    • 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
    • 6 frequency banks with up to 32 programmable channels
  • Switching bandwidth: up to 72 MHz
  • Nominal/peak deviation: ±24 kHz / ±48 kHz
  • Frequency stability: ≤ ±15 ppm
  • RF output power at 50 Ω switchable:
    • Low: typ. 10 mW
    • Standard: typ. 30 mW
    • High: typ. 50 mW
  • Pilot tone squelch: Can be switched off
  • Compander system: Sennheiser HDX
  • AF frequency response
  • Mic: 80 – 18,000 Hz
  • Line: 25 – 18,000 Hz
  • Signal-to-noise ratio (1 mV, peak deviation): ≥ 115 dBA
  • Total harmonic distortion (THD): ≤ 0.9 %
  • Max. microphone/line input voltage: 3 Veff
  • Microphone/line input impedance: 40 kΩ, unbalanced / 1 MΩ
  • Input capacitance: Switchable
  • Setting range for input sensitivity: 60 dB, adjustable in 3 dB steps
  • Temperature range: -10 °C to +55 °C
  • Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
  • Nominal voltage: 3 V battery / 2.4 V rechargeable battery
  • Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 μA
  • Operating time: Typically 8 h

SK 500 G4 - Physical & Dimensions

  • Height: 82mm
  • Width: 64mm
  • Depth: 24mm
  • Weight: 160g

ME2

  • Transducer principle: pre-polarized condensor microphone
  • Pick-up pattern: omni-directional
  • Sensitivity (free field, no load) (1 kHz): 20 mV/Pa
  • Max. SPL at 1 kHz: 130 dB
  • Frequency response: "50 to 18,000 Hz (ME 2-II) 30 to 20,000 Hz (ME 2-US)"
  • "Equivalent noise level A-weighted (DIN IEC 651)": 36 dB
  • Connector: 3.5 mm jack
  • Cable length: approx. 1.60 m
  • Supply voltage: 7.5 V

Part Number: 507736

Manufacturer: Sennheiser
