Description

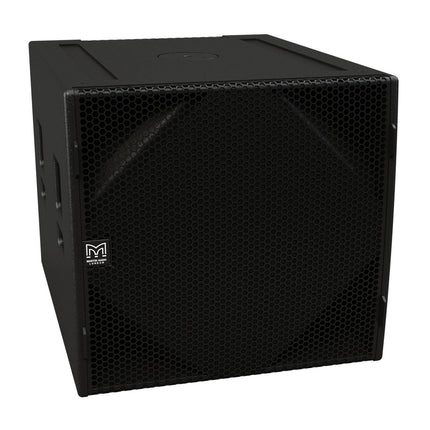

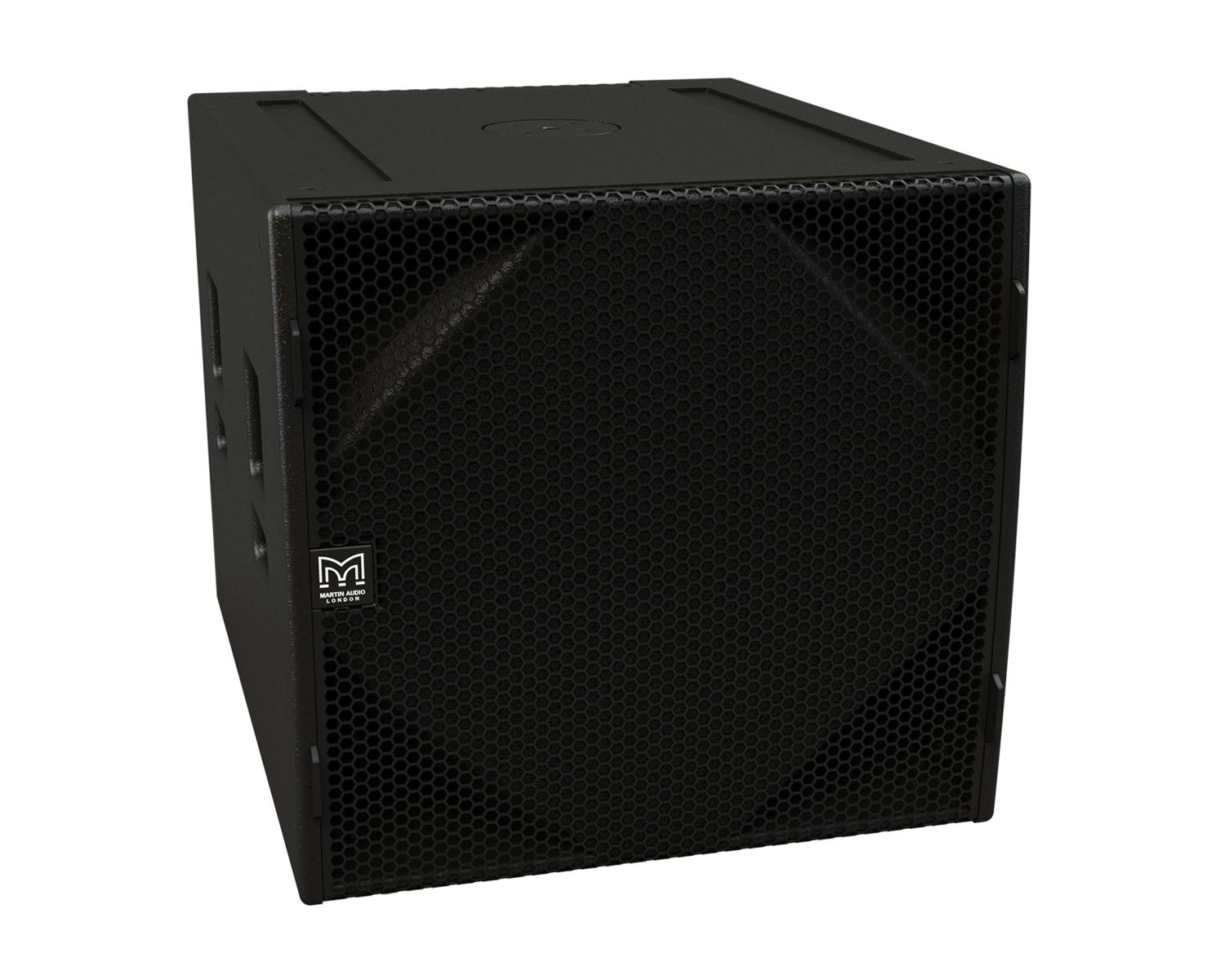

Designed for touring sound and installations, the SXC118 is a compact, high performance cardioid subwoofer. It features an 18” (460mm) forward facing driver and a 14” (356mm) rear facing driver, each driven independently by separate amplifier channels and DSP.The recommended iK42 amplifier optimises the DSP parameters for front and rear drivers to maximise the rear rejection — from 21dB at 43Hz to 28dB at 75Hz. This keeps low frequencies away from stages, turntables and walls as well as reducing reverberant energy in the room, greatly improving the system’s low frequency response accuracy and impact.In front of the enclosure, the output from the two drivers is additive, giving an extra 2dB of output when compared with a conventional 1 x 18” subwoofer.The enclosure is constructed from plywood and finished with a hard-wearing textured paint. It is equipped with four grab handles and foam-backed perforated steel grilles protect the front and rear drivers. It can be used individually, stacked or flown individually by means of threaded flying inserts.Product Features
Compact, cardioid subwoofer
Front facing 18” (460mm)/4” (100mm) voice coil driver
Rear facing 14” (356mm)/3.5” (88mm) voice coil driver
Cardioid dispersion pattern
28dB rear rejection at 75Hz
High output capability
Tour-grade plywood enclosure with flying inserts
Applications
Live sound reinforcement
Fixed installations including live event venues and nightclubs
Theatre sound
Corporate AV events
Acoustically-challenging rooms
Outdoor restaurant, bar and hotel entertainment areas
Concourses and Theme Parks
Product Specifications
TYPE: Compact, cardioid subwoofer
FREQUENCY RESPONSE: 43Hz – 150Hz ±3dB, -10dB @ 34Hz
DRIVERS:
18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet, waterproof cone
14” (356mm)/3.5” (88mm) voice coil, long excursion, neodymium magnet, waterproof cone
RATED POWER:
18”: 1000W AES, 4000W peak
14”: 800W AES, 3200W peak
SENSITIVITY: 104dB
MAXIMUM SPL: 140dB peak
NOMINAL IMPEDANCE:
18”: 8Ω
14”: 8Ω
DISPERSION (-6DB): Cardioid
ENCLOSURE: Multi-laminate birch and poplar ply
FINISH: Textured black paint
PROTECTIVE GRILLE: Black HEX perforated steel
CONNECTORS: 2 x NL4
PIN CONNECTIONS (INPUT): 18”: +1, -1; 14”: +2, -2
PINS CONNECTIONS (LINK): 18”: +1, -1; 14”: +2, -2
FITTINGS:
Two skids on base, with mating channels on top
M20 top-mounted thread plate for pole mounting
Two bar handles on each side
Four fittings for optional transit cover
16 x M10 Mounting Points
16 x M8 inserts for optional castors
Two bar handles on each side
DIMENSIONS (INCL SKIDS):
(W) 635mm x (H) 603mm x (D) 824mm (952mm incl castors)
(W) 25in x (H) 23.7in x (D) 32.4in (37.5in incl castors)
WEIGHT:
69kg (152lbs)
73kg (161lbs) incl castors
