Description

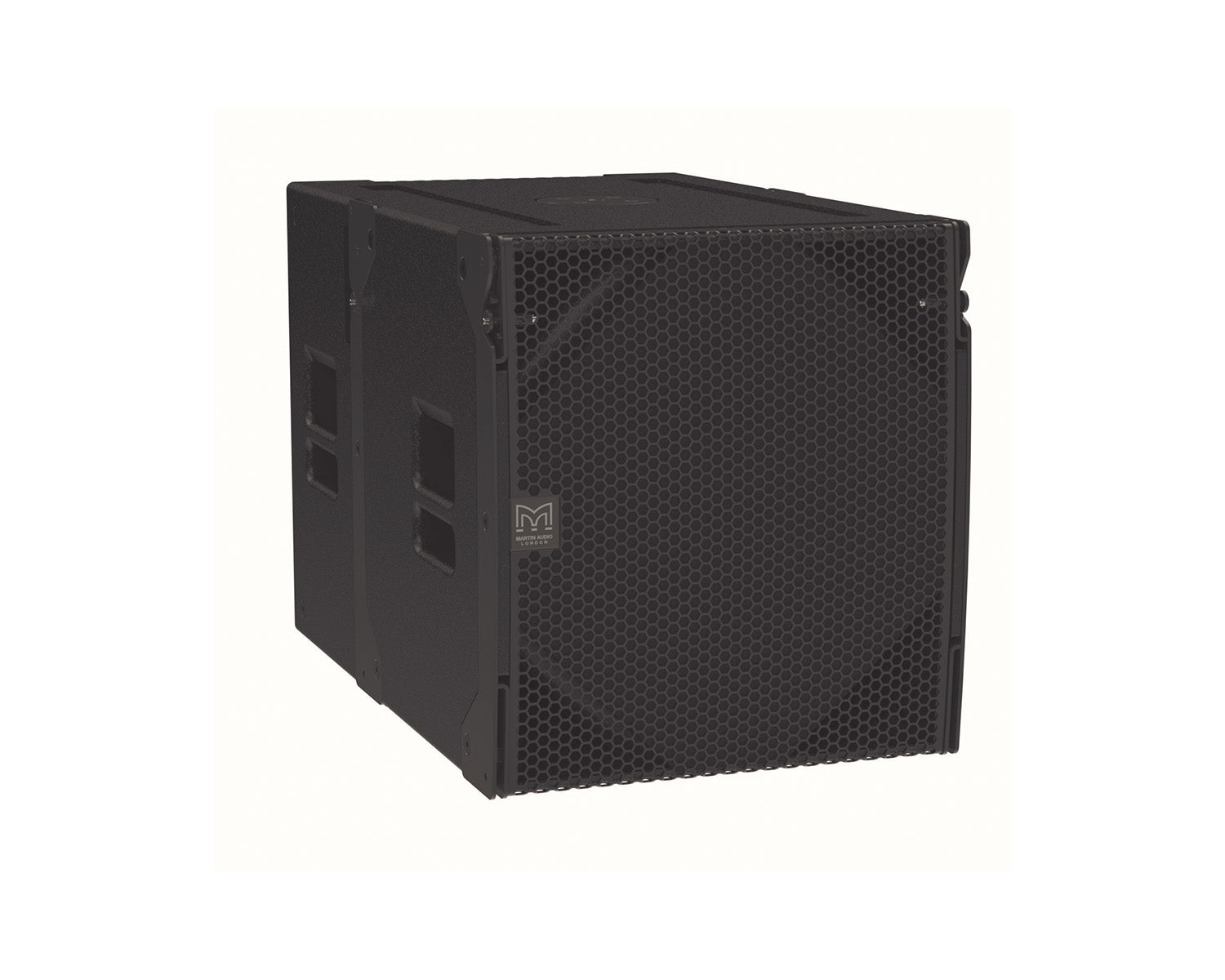

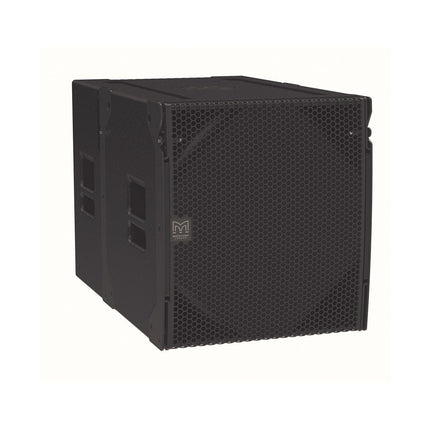

Designed for touring sound and installations, the SXCF115 is a compact, high performance cardioid subwoofer which be flown as part of a WPM or TORUS 8 array, or ground-stacked separately. SXCF115 features a 15” (380mm) forward facing driver and a 12” (300mm) rear facing driver, each driven independently by separate amplifier channels and DSP. Each driver has its own chamber with optimised bass reflex porting. This arrangement produces a cardioid dispersion pattern which maximises the front radiation and reduces unwanted radiation behind the subwoofer.Product Features
Compact, cardioid subwoofer
Front facing 15” (380mm)/4” (100mm) voice coil driver
Rear facing 12” (300mm)/4” (100mm) voice coil driver
Cardioid dispersion pattern
28dB rear rejection at 75Hz
High output capability
Tour-grade plywood enclosure
Product Specifications
Type: Compact, cardioid subwoofer
Frequency Response: 44Hz – 150Hz ±3dB, -10dB @ 36Hz
Drivers:
15” (380mm)/4” (100mm) voice coil, long excursion, ferrite magnet, waterproof cone
12” (300mm)/4” (100mm) voice coil, long excursion, neodymium magnet, waterproof cone
Rated Power:
15”: 1000W AES, 4000W peak
12”: 800W AES, 3200W peak
Sensitivity: 101dB
Maximum SPL: 137dB peak
Nominal Impedance:
15”: 8 ohms
12”: 8 ohms
Dispersion: (-6dB) Cardioid
Enclosure: Multi-laminate birch ply
Finish: Textured black paint
Protective Grille: Black HEX perforated steel
Connectors: 2 x NL4
Pin Connections (INPUT): 15”: +1, -1; 12”: +2, -2
Pins Connections (LINK): 15”: +1, -1; 12”: +2, -2
Fittings:
Two skids on base, with mating channels on top
M20 top-mounted thread plate for pole mounting
Two bar handles on each side
16 x M8 inserts for optional castors
Dimensions (INCL SKIDS) (W) 500mm x (H) 552mm x (D) 810mm (938mm incl castors) (W) 19.69in x (H) 21.71in x (D) 31.90in (36.94in incl castors)
Weight: 61.5Kg (136lbs), 65Kg (143lbs) incl castors
