Description

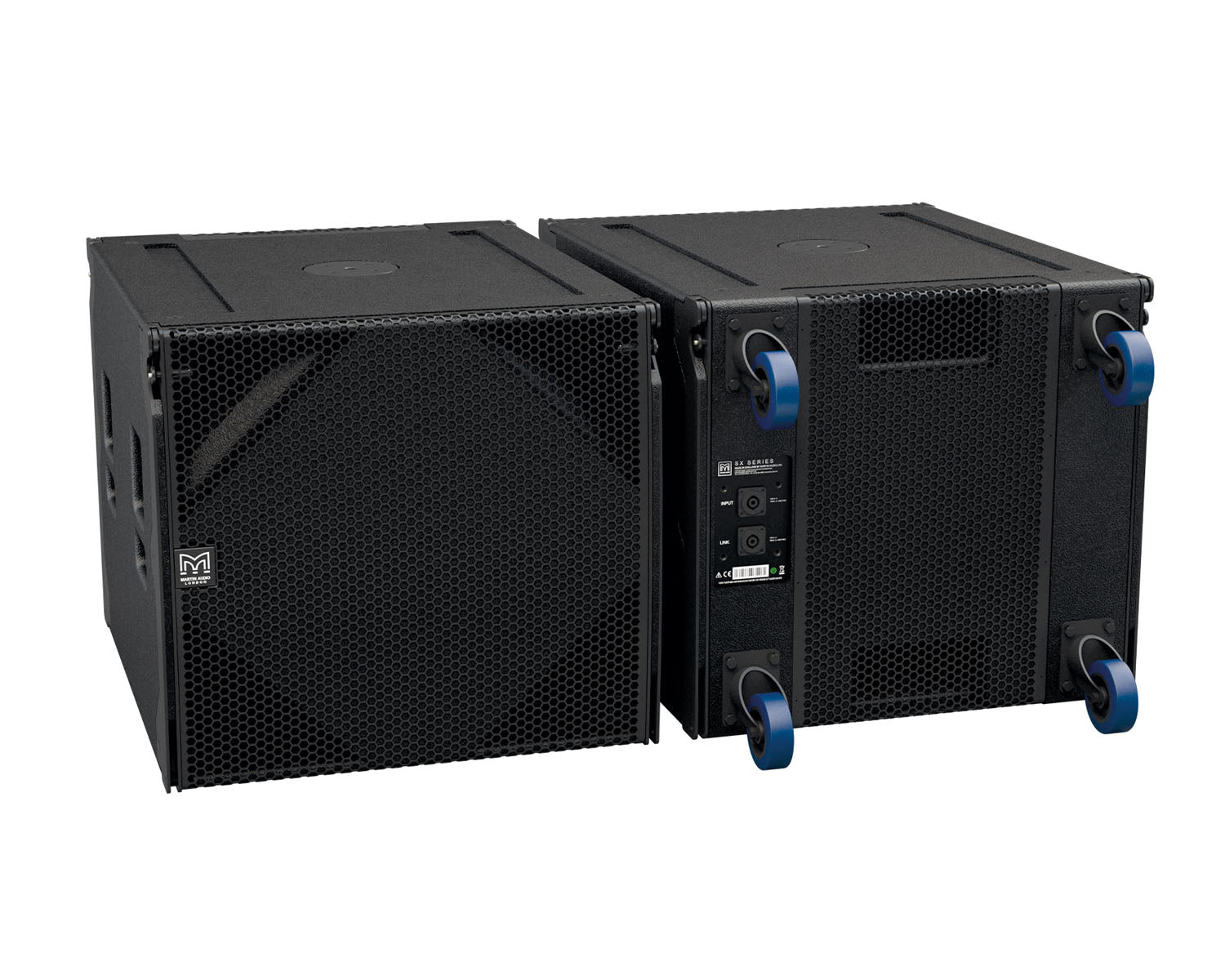

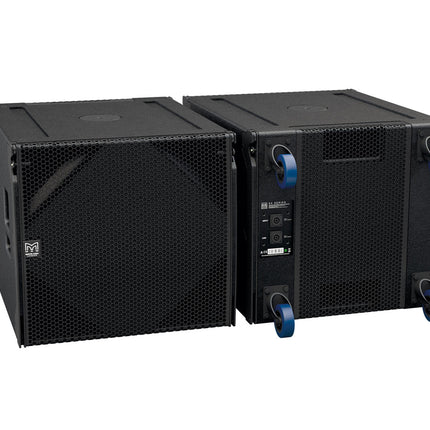

The SXCF118 is a compact, high performance cardioid subwoofer. The flown version of the SXC118, it is the ideal partner for flown WPS arrays — combining maximum low frequency output with pattern control. It features an 18” (460mm) forward facing driver and a 14” (356mm) rear facing driver, each driven independently by separate amplifier channels and DSP. Each driver has its own chamber with optimised bass reflex porting.White option also available on request, please call one of our sales team for details.Product Features
Compact, cardioid flown subwoofer
Front facing 18” (460mm)/4” (100mm) voice coil driver
Rear facing 14” (356mm)/3.5” (88mm) voice coil driver
Cardioid dispersion pattern
28dB rear rejection at 75Hz
High output capability
Tour-grade plywood enclosure
Finish Black (White option also available on request, please call one of our sales team for details.)
Applications
Live sound reinforcement
Fixed installations including live event venues and nightclubs
Theatre sound
Corporate AV events
Product Specifications
TYPE: Compact, cardioid subwoofer
FREQUENCY RESPONSE: 43Hz – 150Hz ±3dB, -10dB @ 34Hz
DRIVERS:
18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet, waterproof cone
14” (356mm)/3.5” (88mm) voice coil, long excursion, neodymium magnet, waterproof cone
RATED POWER:
18”: 1000W AES, 4000W peak
14”: 800W AES, 3200W peak
SENSITIVITY: 104dB
MAXIMUM SPL: 140dB peak
NOMINAL IMPEDANCE:
18”: 8Ω
14”: 8Ω
DISPERSION (-6DB): Cardioid
ENCLOSURE: Multi-laminate birch ply
FINISH: Textured black polyurea
PROTECTIVE GRILLE: Black HEX perforated steel
CONNECTORS: 2 x NL4
PIN CONNECTIONS (INPUT): 18”: +1, -1; 14”: +2, -2
PINS CONNECTIONS (LINK): 18”: +1, -1; 14”: +2, -2
FITTINGS:
Two skids on base, with mating channels on top
M20 top-mounted thread plate for pole mounting
Two bar handles on each side
Four fittings for optional transit cover
DIMENSIONS (INCL SKIDS):
(W) 650mm x (H) 611mm x (D) 812mm (940mm incl castors)
(W) 25.6in x (H) 24.1in x (D) 32.0in (37.0in incl castors)
WEIGHT: 75kg (165lbs), 78kg (172 lbs) incl castors
