Description

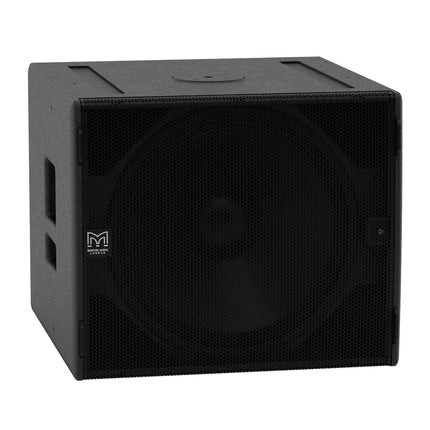

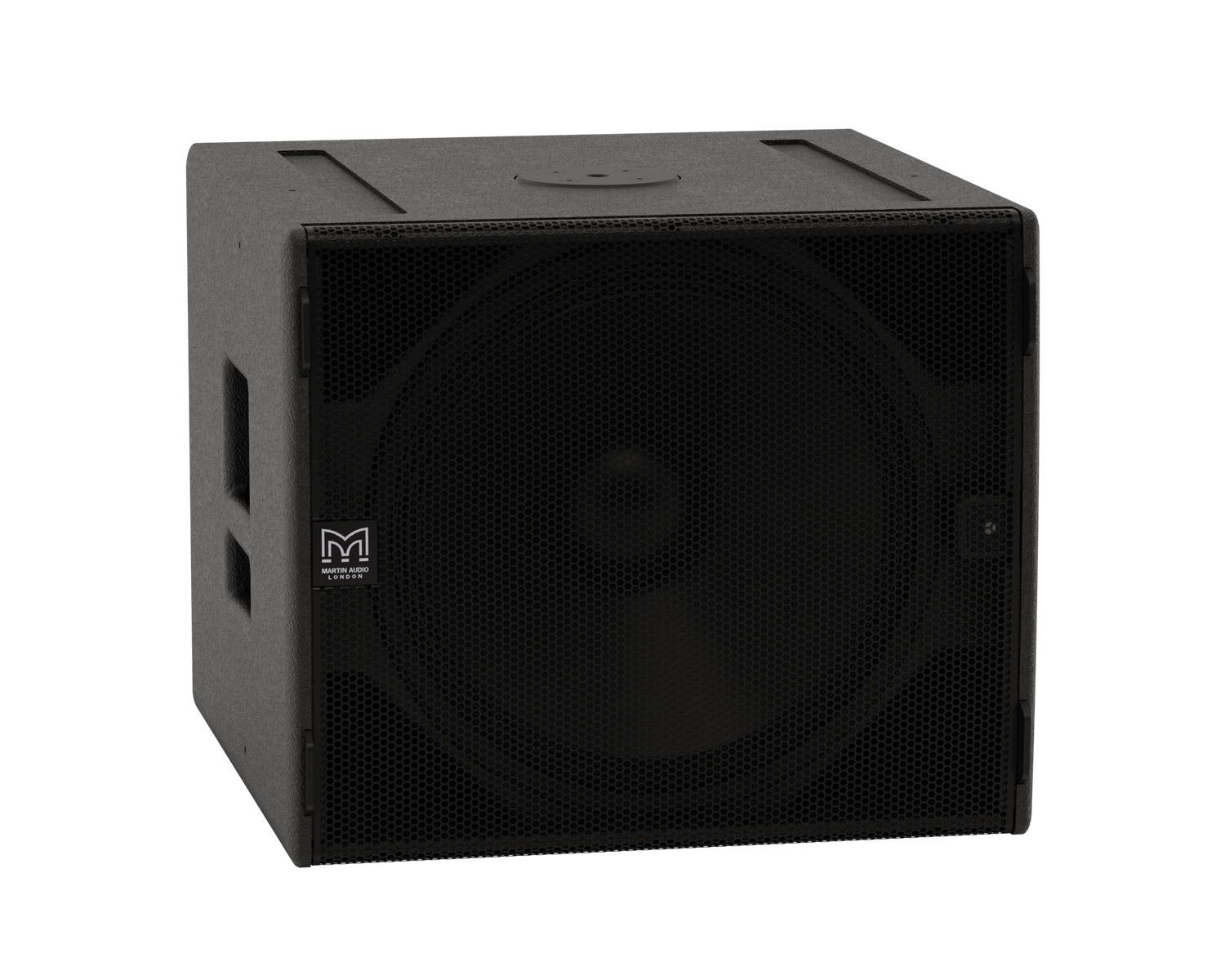

The SXP118 is a compact, high-performance subwoofer that extends the low frequency operating range of a CDD-LIVE! full-range system to 40Hz — providing exceptional low frequency impact and increasing headroom. It features a long-excursion 18” (460mm)/4” (100 mm) voice coil driver with a water-resistant cone and triple roll surround in a compact reflex enclosure. The design of the 18” driver maximises output while minimising power compression and distortion, and the four reflex ports have a large frontal area to reduce turbulent air noise at very high levels. With a maximum SPL capability of 135dB peak at 1 metre, the SXP118 is the ideal subwoofer for theatre and portable live sound applications, as well as premium installations that require the maximum output from a compact enclosure.A self-powered system, the SXP118 incorporates a Class D amplifier, DSP and Dante™ digital audio networking — simplifying set-up, enhancing control and eliminating amplifier racks. The onboard amplifier delivers 2000W peak output to the driver, and its switched-mode power supply auto-ranges to global mains voltages from 100 to 240V 50/60Hz. DSP functions — including parametric EQ, delay, muting, gain and preset selection — can be controlled over Ethernet from a PC or Windows® tablet via intuitive VU-NET™ proprietary software.Product Features
Compact, self-powered subwoofer
1 x 18” (460mm) driver with 4” (100mm) voice coil
Onboard Class D amplification and DSP
Dante™ Digital Audio networking
Global mains operation with Power Factor Correction
Tour-grade plywood enclosure with flying inserts
IP24 rating option with rain cowl
Applications
Live sound reinforcement
Theatre sound
Corporate AV events
Fixed installations in concert halls, ballrooms and HoW
Bars and clubs
Outdoor restaurant, bar and hotel entertainment areas
Concourses and Theme Parks
Product SpecificationsACOUSTICSTYPE: Compact, direct radiating powered subwooferFREQUENCY
RESPONSE: 47Hz – 150Hz ±3dB, -10dB @ 41Hz
DRIVER: 18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet, waterproof cone
INPUT SENSITIVITY:
-20dBu for 100dB SPL (CDD12/15 pre-set)
-13dBu for 100dB SPL (CDD8 pre-set)
MAXIMUM SPL: 132dB continuous / 135dB peak
DISPERSION: Omnidirectional / or Cardioid (paired)
CROSSOVER: Active Presets for CDD Live 8, 12 & 15 mono-pole or cardioid (paired)
MODULE AUDIO INPUT
CONNECTORS: Female XLR input, male XLR link output, Dante Audio Neutrik® Ethercon
ANALOGUE INPUT IMPEDANCE: 20 kΩ balanced to ground
MAXIMUM ANALOGUE INPUT LEVEL: 24.6 Vpp (+21dBu), over voltage protected
INTERNAL PROCESSING: Multi-channel DSP, programmable via TCP/IP using VU-Net software
PEQ/shelving filters
Up to 48dB/Oct LPF
Up to 200ms input delay
Pre-set selection via rear panel switch
NETWORK
CONNECTORS: 2 x Neutrik® Ethercon
PROTOCOL: TCP/IP and UDP/IP
AMPLIFIER MODULE
TYPE: 2 channel switch-mode, class D, Bridged Tied
PEAK OUTPUT POWER: 2000W total
AVERAGE EFFICIENCY: 89%
COOLING: External fan
MAXIMUM AMBIENT TEMPERATURE: 40°C (104°F) for full output
POWER SUPPLY
TYPE: Switch mode, fixed frequency with PFC
AC INPUT OPERATING RANGE: 85 – 265V ~ AC, 50 - 60Hz
POWER FACTOR: > 0.98
NOMINAL POWER CONSUMPTION: 125W
MAINS CONNECTOR: Neutrik® Powercon True1
MECHANICAL
ENCLOSURE: Extensively braced multi-laminate plywood.
FINISH: Durable Polyurea Coating
PROTECTIVE GRILLE: Black perforated Zintec
FITTINGS:
Two skids on base, with mating channels on top
16 x M8 inserts for optional castors
M20 top-mounted thread plate for pole mounting
16 x M10 mounting points
2x Bar handles, 1 on each side
4x fittings for optional transit cover
IP RATING: IP24 factory option available
DIMENSIONS:
(W) 600mm x (H) 507mm x (D) 632mm (760mm including castors)
(W) 23.62in x (H) 20in x (D) 24.86in (29.90in including castors)
WEIGHT: 46.5kg (103lbs) w/o castors 50kg (110lbs) with castors
