Description

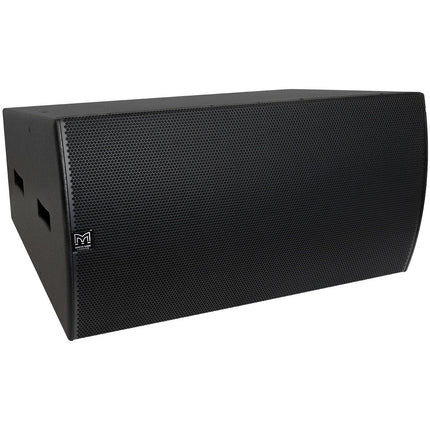

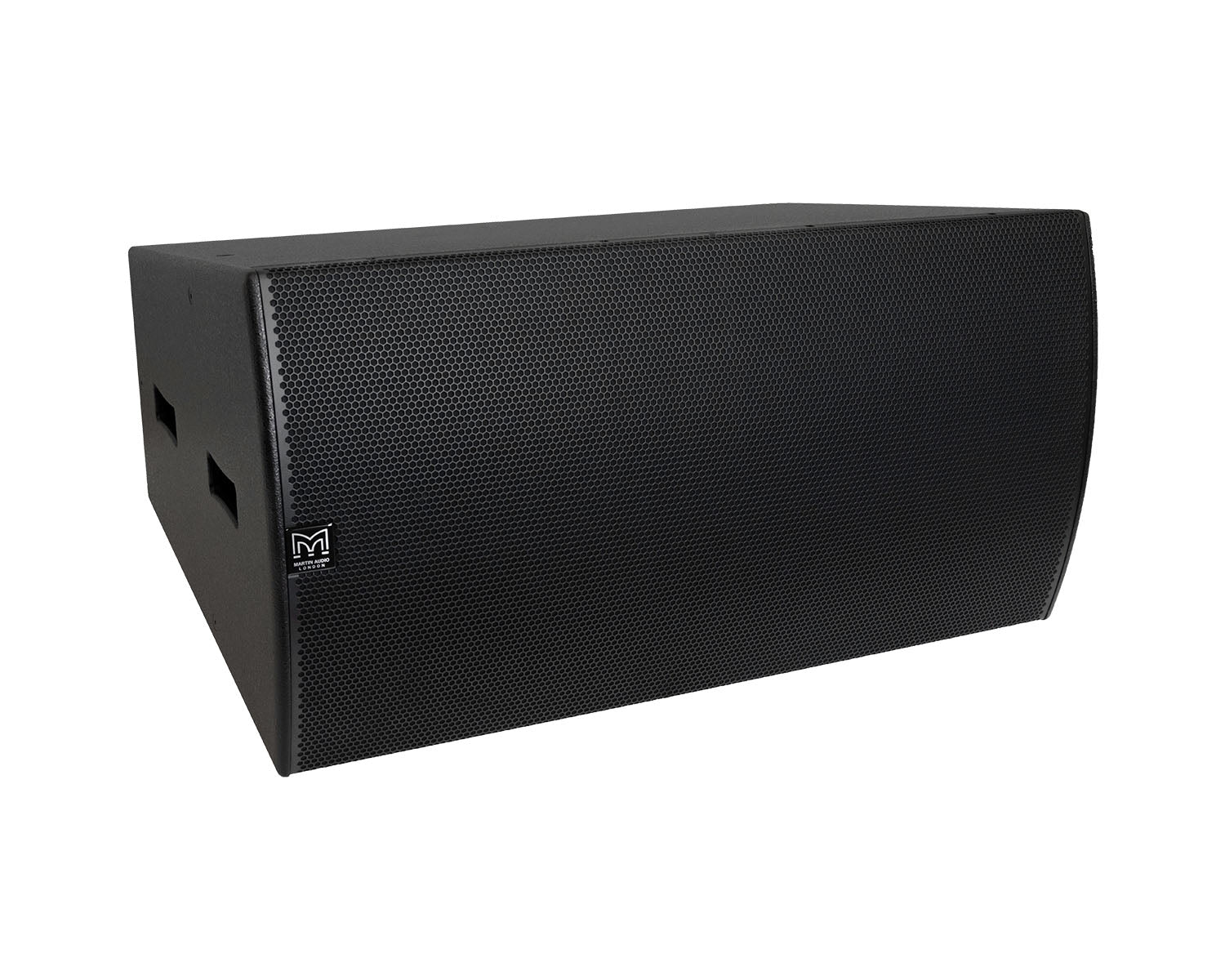

The Hybrid® low frequency section comprises a horn-loaded 15” (380mm)/4” (100mm) voice coil driver that is reflex loaded to extend the LF output to below the natural horn cut-off point. The LF driver features a water resistant cone and triple roll surround for increased excursion.The mid-horn of the THH has a unique ‘phase-ball’ loading device which maintains the constant directivity characteristics of the horn at the upper end of its range. It is driven by a 10” (250mm) midrange driver with an aluminium demodulating ring for im-proved high-mid clarity and reduced distortion when driven hard. The 70˚ x 40˚ HF section of the THH features a neodymium 1” (25mm) exit compression driver with a Kapton diaphragm for high sensitivity and extended HF performance.The internal mid/ high passive crossover allows this three-way system to be driven in a bi-amp configuration.The THH is configured in a horizontally formatted, trapezoidal birch ply cabinet and fitted with twelve M10 inserts to facilitate ease of mounting. The enclosure has generous pocket handles on the ends and rear castors are fitted as standard.A Martin Audio iKON iK42, VIA5002 or VIA5004 are the recommended amplifier partners with the DX range of controllers also compatible.Product Features
All-horn three-way system
‘Phase-ball’ loaded mid-driver
Hybrid® LF section
Fitted with handles and castors
Horizontal format
Five year limited warranty
Product Specifications
Type: Three-way bi-amp trapezoid Hybrid® fully horn loaded
Frequency Response: (5) 50Hz-18kHz ± 3dB
Drivers:
15” (380mm)/4” (100mm) coil bass driver
10” (250mm)/2.5” (63.5mm) coil mid driver
1” (25mm) exit HF compression driver
Rated Power:
(2) LF: 750W AES, 3000W peak
MF + HF: 300W AES, 1200W peak
Recommended Amplifier: iK42 / VIA5002/5004
Sensitivity: (6) LF: 104dB, MF + HF: 104dB
Maximum SPL: (9) 133dB continuous, 139dB peak
Nominal Impedance: LF: 8 ohms, MF + HF: 8 ohms
Dispersion (-6dB): 70˚ horizontal, 40˚ vertical
Crossover: 200Hz active, 2kHz passive
Enclosure: 250 litre, multi-laminate birch ply
Finish: Textured black paint
Protective Grille: Black perforated steel
Connectors: 2 x Neutrik NL4
Pin Connections: LF+,- : 1+,1-, (MF + HF) +,- : 2+,2-
Fittings:
12 x M10 inserts
4 x 4” (100mm) castors, 4 x pocket handles
Dimensions (inc wheels):
(W) 558mm x (H) 1067mm x (D) 780mm (908mm)
(W) 22ins x (H) 42ins x (D) 30.7ins (35.7ins)
Weight: 77.5kg (170.5lbs)
