Description

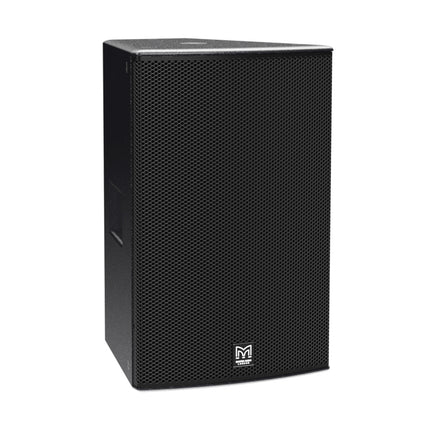

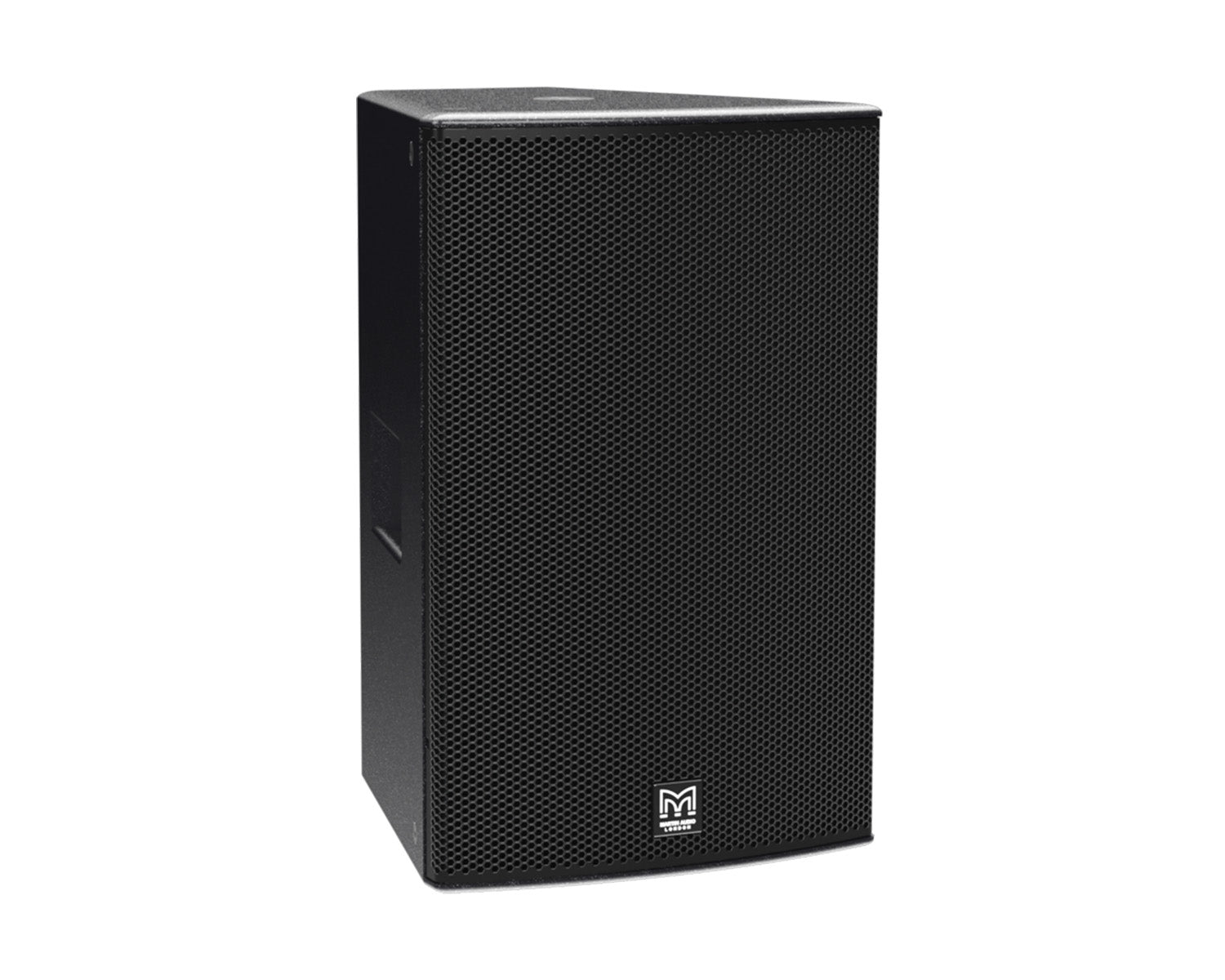

Capable of 135dB peak, THS is an extremely powerful point source loudspeaker which combines very high output with extended frequency response. It is ideally suited to medium-scale club applications and installations which call for exceptionally high sound levels from a compact, standalone loudspeaker system.Packing three high-technology drivers into a relatively small trapezoid enclosure, its innovative three-way triaxial configuration delivers enhanced output for its size and gives it the edge over comparable two-way systems in terms of superior mid and high frequency performance. Adding a compact Martin Audio SX subwoofer to extend low frequency output creates a dynamic, four-way setup with a small footprint.To ensure the most effective use of amplifier count, THS is designed to be bi-amplified, with an internal passive network performing the mid/high crossover function.The THS triaxial driver is a remarkable, state-of-the-art device. Its LF section comprises a reflex-loaded, high-specification 15” LF driver with a 4” coil, waterproof cone and neodymium magnet structure. A 4” midrange ring radiator and a 2.5” HF ring radiator, both with high temperature polymer diaphragms, are arranged coaxially at the rear of the LF driver and integrated into a 1.4” exit. This transitions through the magnet structure of the LF driver into an 85° x 50° horn. The horn itself is user rotatable, with a large mouth to maintain pattern control down through the midrange.The durable birch plywood enclosure is finished in hardwearing textured paint and incorporates multiple threaded inserts to facilitate a variety of portrait and landscape mounting options — including eyebolt, yoke, pole and truss mounting. Twin handles assist installation and deployment. A steel grille with a triple-layer polyester backing protects the drivers and resists dust and water ingress.Recommended amplifiers include Martin Audio iKON amplifiers with onboard DSP or VIA amplifiers used in conjunction with a DX4.0, DX0.6, or DX0.4 controller. THS systems can be modelled in 3D using DISPLAY 3 design and prediction software.Product Features
Bi-amp three-way loudspeaker system
Compact trapezoid enclosure with very high output capability
Triaxial Point Source configuration with user-rotatable mid/high frequency horn
15” (380mm)/4” (100mm) voice coil, low distortion neodymium LF driver
4” (100mm) HT polymer ring radiator/1.4” (35mm) exit MF driver
2.5” (64mm) HT polymer ring radiator/1.4” (35mm) exit HF driver
85° H x 50° V dispersion
Supported by DISPLAY 3 software
Product Specifications
Type: Bi-Amp 3-way (Passive MF/HF) Loudspeaker
Frequency Response (5): 54Hz-18kHz ± 3dB, -10dB @43Hz with preset
Drivers
LF: 15” (380mm) / 4” (100mm) coil neodymium motor
MF: 1.4" (25mm) exit / 4" (100mm) coaxial HT polymer ring radiator
HF: 1.4” (25mm) exit / 2.5" coaxial HT polymer ring radiator
Rated Power
LF: 800W AES, 3200W Peak
MF/HF: 110W AES, 440W Peak
Recommended Amplifier: iK42/81 or VIA5002/5004
Sensitivity (6):
LF: 100dB
MF/HF: 109dB
Maximum SPL (9) 129dB continuous, 135dB peak
Nominal Impedance
LF: 8 Ohms
MF/HF: 8 Ohms
Dispersion (-6dB): 85˚ horizontal, 50˚ vertical
Crossover: 650Hz/4.8kHz
Enclosure: Birch plywood
Finish: Textured black finish
Protective Grille: Black perforated steel
Connectors: NLT4MPXX-BAG speakons (pair)
Pin Connections (Input): LF : 1+ / 1- , MF/HF : 2+/2-
Pin Connections (Link): 1+ / 1-, 2+ / 2-
Fittings: 13 x M10 fixings, 4 x M10 Bracket Mounting Points and mTwo Handle Pockets
Dimensions:
710mm (H) x 457mm (W) x 511mm (D)
27.95ins (H) x 17.98ins (W) x 20.11ins (D)
Weight: 35.6 kg / 78.48 lbs
Accessories: Portrait and landscape yokes (sold separately)
